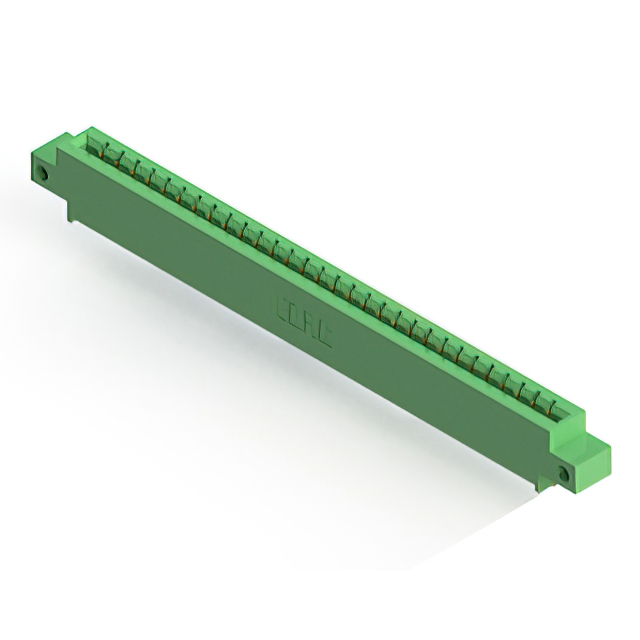

333-030-521-612
ActiveEDAC Inc.
CONN EDGE SGL FMALE 30POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
333-030-521-612
ActiveEDAC Inc.
CONN EDGE SGL FMALE 30POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 333-030-521-612 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Side Mount Opening, Unthreaded |
| Flange Feature | 3.25 mm |
| Flange Feature | 0.128 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 30 |
| Number of Positions/Bay/Row [custom] | 30 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
333-030 Series
...
| Part | Contact Finish Thickness | Contact Finish Thickness | Termination | Number of Positions/Bay/Row [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Gender | Contact Material | Number of Rows | Contact Type | Color | Pitch [x] | Pitch [x] | Mounting Type | Material - Insulation | Number of Positions | Termination Rows | Card Type | Read Out | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Contact Finish | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 10 Áin | 0.25 Ám | Solder | 30 | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Copper Alloy | 1 | Cantilever | Green | 0.156 in | 3.96 mm | Through Hole | Polyester Thermoplastic | 30 | 1 | Non Specified - Single Edge | Single | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | Gold | ||
EDAC Inc. | 10 Áin | 0.25 Ám | Wire Wrap | 15 | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Copper Alloy | 2 | Cantilever | Green | 0.156 in | 3.96 mm | Through Hole | Polyester Thermoplastic | 30 | 2 | Non Specified - Dual Edge | Dual | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Gold | ||
EDAC Inc. | 10 Áin | 0.25 Ám | Solder | 15 | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Copper Alloy | 2 | Cantilever | Green | 0.156 in | 3.96 mm | Through Hole | Polyester Thermoplastic | 30 | 2 | Non Specified - Dual Edge | Dual | M3 Threaded Insert Top Mount Opening | Gold | ||||
EDAC Inc. | 10 Áin | 0.25 Ám | Wire Wrap | 30 | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Copper Alloy | 1 | Cantilever | Green | 0.156 in | 3.96 mm | Through Hole | Polyester Thermoplastic | 30 | 1 | Non Specified - Single Edge | Single | 4-40 Flush Mount Threaded Insert Top Opening | Gold | ||||
EDAC Inc. | 10 Áin | 0.25 Ám | Wire Wrap | 15 | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Copper Alloy | 2 | Cantilever | Green | 0.156 in | 3.96 mm | Through Hole | Polyester Thermoplastic | 30 | 2 | Non Specified - Dual Edge | Dual | Gold | 3.25 mm | 0.128 in | |||
EDAC Inc. | 10 Áin | 0.25 Ám | Wire Wrap | 30 | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Copper Alloy | 1 | Cantilever | Green | 0.156 in | 3.96 mm | Through Hole | Polyester Thermoplastic | 30 | 1 | Non Specified - Single Edge | Single | 3.96 mm | Top Mount Opening Unthreaded | 0.156 in | Gold | ||
EDAC Inc. | 10 Áin | 0.25 Ám | Solder | 30 | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Copper Alloy | 1 | Cantilever | Green | 0.156 in | 3.96 mm | Through Hole | Polyester Thermoplastic | 30 | 1 | Non Specified - Single Edge | Single | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Gold | ||
EDAC Inc. | 10 Áin | 0.25 Ám | Solder | 15 | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Copper Alloy | 2 | Cantilever | Green | 0.156 in | 3.96 mm | Through Hole | Polyester Thermoplastic | 30 | 2 | Non Specified - Dual Edge | Dual | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Gold | ||
EDAC Inc. | 10 Áin | 0.25 Ám | Solder | 30 | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Copper Alloy | 1 | Cantilever | Green | 0.156 in | 3.96 mm | Through Hole | Polyester Thermoplastic | 30 | 1 | Non Specified - Single Edge | Single | Side Mount Opening Unthreaded | Gold | 3.25 mm | 0.128 in | ||
EDAC Inc. | 10 Áin | 0.25 Ám | Solder Eyelet(s) | 15 | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Copper Alloy | 2 | Cantilever | Green | 0.156 in | 3.96 mm | Through Hole | Diallyl Phthalate (DAP) | 30 | 2 | Non Specified - Dual Edge | Dual | Gold | 3.25 mm | 0.128 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 10.24 | |
Description
General part information
333-030 Series
30 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
