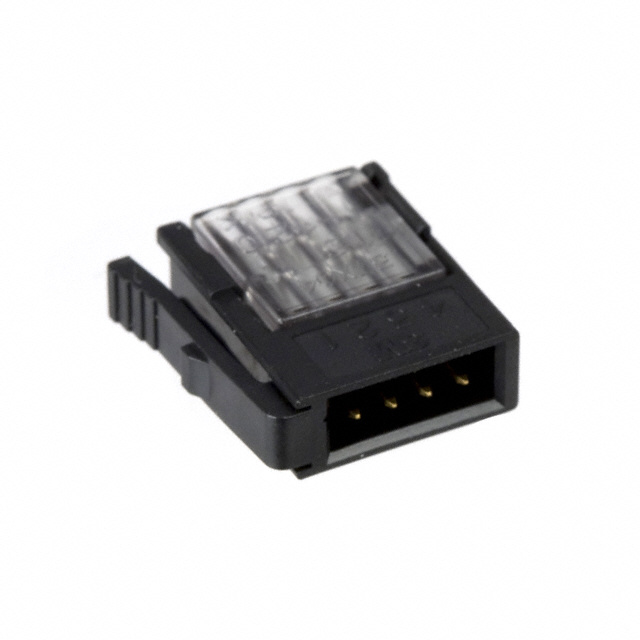

37104-A206-00E MB

Active

3M (TC)

IDC CONNECTOR, IDC PLUG, MALE, 2 MM, 1 ROW, 4 CONTACTS, CABLE MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +1

37104-A206-00E MB

Active

3M (TC)

IDC CONNECTOR, IDC PLUG, MALE, 2 MM, 1 ROW, 4 CONTACTS, CABLE MOUNT

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	37104-A206-00E MB

Cable Termination	IDC
Color	Black
Connector Type	Plug
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Contact Type	Male Pin
Fastening Type	Latch Lock
Features	Closed End
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Number of Rows	1
Pitch [x]	0.079 in
Pitch [x]	2 mm
Wire Gauge [Max]	24 AWG
Wire Gauge [Min]	20 AWG
Wire Type	Discrete

37104 Series

Part	Connector Type	Contact Type	Number of Positions	Wire Type	Fastening Type	Contact Finish	Mounting Type	Color	Number of Rows	Features	Wire Gauge [Min]	Wire Gauge [Max]	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Cable Termination
3M (TC) 37104-2165-000 FL 500	Plug	Male Pin	4	Discrete	Latch Lock	Gold	Free Hanging (In-Line)	Black	1	Closed End	20 AWG	22 AWG	0.079 in	2 mm	8 çin	0.203 çm	IDC
3M (TC) 37104-2206-000 FL 500	Plug	Male Pin	4	Discrete	Latch Lock	Gold	Free Hanging (In-Line)	Black	1	Closed End	20 AWG	22 AWG	0.079 in	2 mm	8 çin	0.203 çm	IDC
3M (TC) 37104-2124-000 FL 100	Plug	Male Pin	4	Discrete	Latch Lock	Gold	Free Hanging (In-Line)	Black	1	Closed End	20 AWG	22 AWG	0.079 in	2 mm	8 çin	0.203 çm	IDC
3M (TC) 37104-3101-000 FL100	Plug	Male Pin	4	Discrete	Latch Lock	Gold	Free Hanging (In-Line)	Black	1	Closed End	24 AWG	26 AWG	0.079 in	2 mm	8 çin	0.203 çm	IDC
3M (TC) 37104-A124-00E MB	Plug	Male Pin	4	Discrete	Latch Lock	Gold	Free Hanging (In-Line)	Black	1	Closed End	20 AWG	24 AWG	0.079 in	2 mm	8 çin	0.203 çm	IDC
3M (TC) 37104-2206-000 FL 100	Plug	Male Pin	4	Discrete	Latch Lock	Gold	Free Hanging (In-Line)	Black	1	Closed End	20 AWG	22 AWG	0.079 in	2 mm	8 çin	0.203 çm	IDC
3M (TC) 37104-3122-000 FL 500	Plug	Male Pin	4	Discrete	Latch Lock	Gold	Free Hanging (In-Line)	Black	1	Closed End	24 AWG	26 AWG	0.079 in	2 mm	8 çin	0.203 çm	IDC
3M (TC) 37104-3080-000 FL	Plug	Male Pin	4	Discrete	Latch Lock	Gold	Free Hanging (In-Line)	Black	1	Closed End			0.079 in	2 mm	8 çin	0.203 çm	IDC
3M (TC) 37104-A206-00E MB	Plug	Male Pin	4	Discrete	Latch Lock	Gold	Free Hanging (In-Line)	Black	1	Closed End	20 AWG	24 AWG	0.079 in	2 mm	8 çin	0.203 çm	IDC
3M (TC) 37104-2165-000 FL 100	Plug	Male Pin	4	Discrete	Latch Lock	Gold	Free Hanging (In-Line)	Black	1	Closed End	20 AWG	22 AWG	0.079 in	2 mm	8 çin	0.203 çm	IDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5000	$ 2.14

Description

General part information

37104 Series

The Mini-Clamp II 371 series Mini-Clamp Plug with copper alloy contacts and a glass reinforced thermoplastic body. It has transparent thermoplastic cover. It is designed to accommodate typical wiring specifications per Japanese and Asian suppliers.

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet

3D Product Image EN

Datasheet
