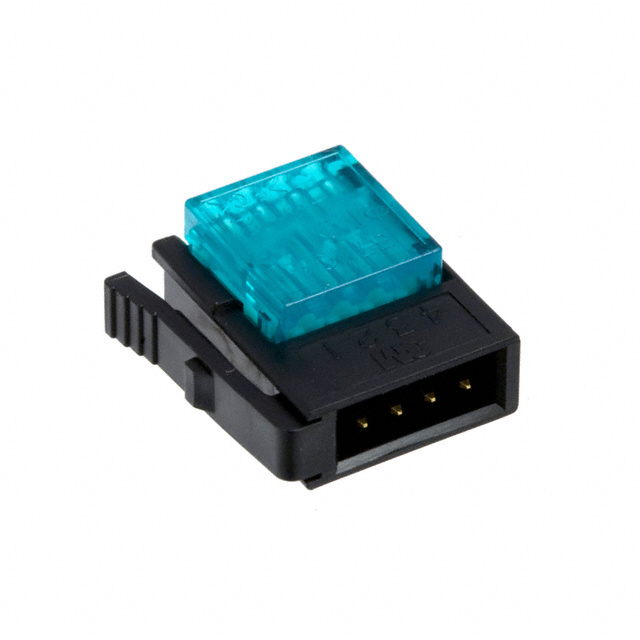

37104-A124-00E MB

Active

3M (TC)

CONN PLUG 4POS IDC 20-24AWG GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

37104-A124-00E MB

Active

3M (TC)

CONN PLUG 4POS IDC 20-24AWG GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	37104-A124-00E MB

Cable Termination	IDC
Color	Black
Connector Type	Plug
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Contact Type	Male Pin
Fastening Type	Latch Lock
Features	Closed End
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Number of Rows	1
Pitch [x]	0.079 in
Pitch [x]	2 mm
Wire Gauge [Max]	24 AWG
Wire Gauge [Min]	20 AWG
Wire Type	Discrete

37104 Series

Part	Connector Type	Contact Type	Number of Positions	Wire Type	Fastening Type	Contact Finish	Mounting Type	Color	Number of Rows	Features	Wire Gauge [Min]	Wire Gauge [Max]	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Cable Termination
3M (TC) 37104-2165-000 FL 500	Plug	Male Pin	4	Discrete	Latch Lock	Gold	Free Hanging (In-Line)	Black	1	Closed End	20 AWG	22 AWG	0.079 in	2 mm	8 çin	0.203 çm	IDC
3M (TC) 37104-2206-000 FL 500	Plug	Male Pin	4	Discrete	Latch Lock	Gold	Free Hanging (In-Line)	Black	1	Closed End	20 AWG	22 AWG	0.079 in	2 mm	8 çin	0.203 çm	IDC
3M (TC) 37104-2124-000 FL 100	Plug	Male Pin	4	Discrete	Latch Lock	Gold	Free Hanging (In-Line)	Black	1	Closed End	20 AWG	22 AWG	0.079 in	2 mm	8 çin	0.203 çm	IDC
3M (TC) 37104-3101-000 FL100	Plug	Male Pin	4	Discrete	Latch Lock	Gold	Free Hanging (In-Line)	Black	1	Closed End	24 AWG	26 AWG	0.079 in	2 mm	8 çin	0.203 çm	IDC
3M (TC) 37104-A124-00E MB	Plug	Male Pin	4	Discrete	Latch Lock	Gold	Free Hanging (In-Line)	Black	1	Closed End	20 AWG	24 AWG	0.079 in	2 mm	8 çin	0.203 çm	IDC
3M (TC) 37104-2206-000 FL 100	Plug	Male Pin	4	Discrete	Latch Lock	Gold	Free Hanging (In-Line)	Black	1	Closed End	20 AWG	22 AWG	0.079 in	2 mm	8 çin	0.203 çm	IDC
3M (TC) 37104-3122-000 FL 500	Plug	Male Pin	4	Discrete	Latch Lock	Gold	Free Hanging (In-Line)	Black	1	Closed End	24 AWG	26 AWG	0.079 in	2 mm	8 çin	0.203 çm	IDC
3M (TC) 37104-3080-000 FL	Plug	Male Pin	4	Discrete	Latch Lock	Gold	Free Hanging (In-Line)	Black	1	Closed End			0.079 in	2 mm	8 çin	0.203 çm	IDC
3M (TC) 37104-A206-00E MB	Plug	Male Pin	4	Discrete	Latch Lock	Gold	Free Hanging (In-Line)	Black	1	Closed End	20 AWG	24 AWG	0.079 in	2 mm	8 çin	0.203 çm	IDC
3M (TC) 37104-2165-000 FL 100	Plug	Male Pin	4	Discrete	Latch Lock	Gold	Free Hanging (In-Line)	Black	1	Closed End	20 AWG	22 AWG	0.079 in	2 mm	8 çin	0.203 çm	IDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5000	$ 2.14

Description

General part information

37104 Series

4 Position Rectangular Plug Connector IDC Gold 20-24 AWG
