Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 150.80 | |
| 10 | $ 138.74 | |||
| 50 | $ 128.18 | |||
General part information

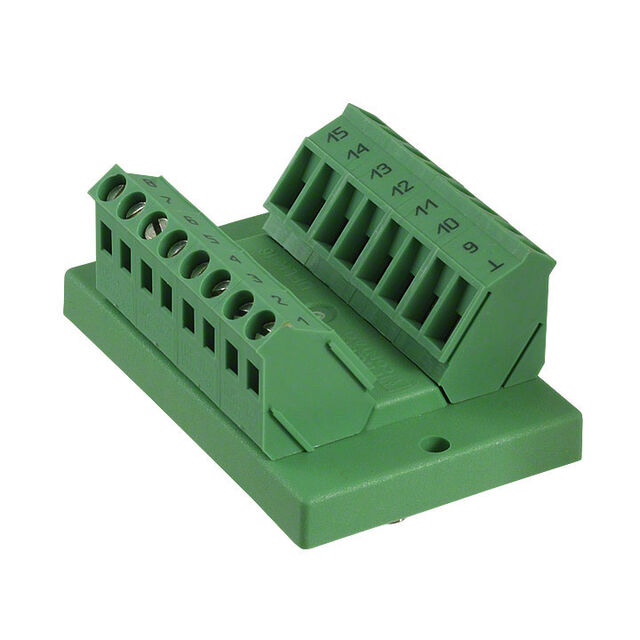

Adapter Terminal Blocks, Screw Connection, 15 Pos, 2 Rows To D-Sub, Female Sockets, 15 Pos, 2 Rows
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | 2280307 | DFLK-D15 Series |
|---|---|---|
| Convert From (Adapter End) | 2 Rows, Terminal Blocks, Screw Connection, 15 Pos | Screwless Connection, Terminal Blocks, 2 Rows, Screw Connection, 15 Pos |
| Convert From (Adapter End) | - | 2 - 15 Pos |
| Convert To (Adapter End) | 2 Rows, 15 Pos | 2 - 15 Rows |
| Convert To (Adapter End) | D-Sub, Female Sockets | D-Sub, Female Sockets |
| Mounting Type | Feed Through, Panel Mount | Feed Through, Panel Mount |
| Wire Gauge [Max] | 24 AWG | 24 AWG |
| Wire Gauge [Min] | 12 AWG | 12 AWG |
CONN MODULE DB15 FEEDTHROUGH
| Part | Convert To (Adapter End) | Convert To (Adapter End) | Convert From (Adapter End) | Convert From (Adapter End) | Wire Gauge [Min] | Wire Gauge [Max] | Mounting Type |
|---|---|---|---|---|---|---|---|
Phoenix Contact 2903065 | 2 Rows, 15 Pos | D-Sub, Female Sockets | 2 Rows, 15 Pos | Screwless Connection, Terminal Blocks | 12 AWG | 24 AWG | Feed Through, Panel Mount |
Phoenix Contact 2280307 | 2 Rows, 15 Pos | D-Sub, Female Sockets | 15 Pos, 2 Rows, Screw Connection, Terminal Blocks | 12 AWG | 24 AWG | Feed Through, Panel Mount | |
Phoenix Contact 2280297 | 15 Pos, 2 Rows, Screw Connection, Terminal Blocks | 12 AWG | 24 AWG | Feed Through, Panel Mount | |||
Phoenix Contact 2903054 | 2 Rows, 15 Pos | Screwless Connection, Terminal Blocks | 12 AWG | 24 AWG | Feed Through, Panel Mount |
