2903065

Active

Phoenix Contact

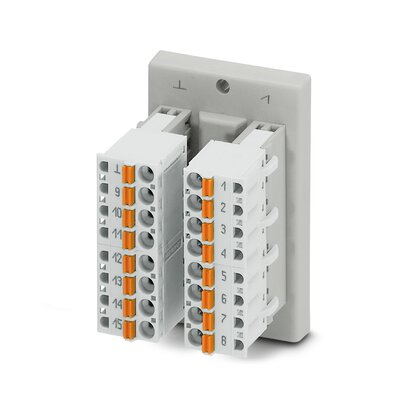

CONN MODULE DB15 FEEDTHROUGH

Search across all available documentation for this part.

Active

Phoenix Contact

CONN MODULE DB15 FEEDTHROUGH

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Terminal Blocks, Screwless Connection, 15 Pos, 2 Rows To D-Sub, Female Sockets, 15 Pos, 2 Rows

Technical documentation and resources

Specification	2903065	DFLK-D15 Series

Convert From (Adapter End)	15 Pos, 2 Rows	2 - 15 Pos
Convert From (Adapter End)	Screwless Connection, Terminal Blocks	Screwless Connection, Terminal Blocks, 2 Rows, Screw Connection, 15 Pos
Convert To (Adapter End)	2 Rows, 15 Pos	2 - 15 Rows
Convert To (Adapter End)	D-Sub, Female Sockets	D-Sub, Female Sockets
Mounting Type	Feed Through, Panel Mount	Feed Through, Panel Mount
Wire Gauge [Max]	24 AWG	24 AWG
Wire Gauge [Min]	12 AWG	12 AWG

Part	Convert To (Adapter End)	Convert To (Adapter End)	Convert From (Adapter End)	Convert From (Adapter End)	Wire Gauge [Min]	Wire Gauge [Max]	Mounting Type
Phoenix Contact 2903065	2 Rows, 15 Pos	D-Sub, Female Sockets	2 Rows, 15 Pos	Screwless Connection, Terminal Blocks	12 AWG	24 AWG	Feed Through, Panel Mount
Phoenix Contact 2280307	2 Rows, 15 Pos	D-Sub, Female Sockets		15 Pos, 2 Rows, Screw Connection, Terminal Blocks	12 AWG	24 AWG	Feed Through, Panel Mount
Phoenix Contact 2280297				15 Pos, 2 Rows, Screw Connection, Terminal Blocks	12 AWG	24 AWG	Feed Through, Panel Mount
Phoenix Contact 2903054			2 Rows, 15 Pos	Screwless Connection, Terminal Blocks	12 AWG	24 AWG	Feed Through, Panel Mount
