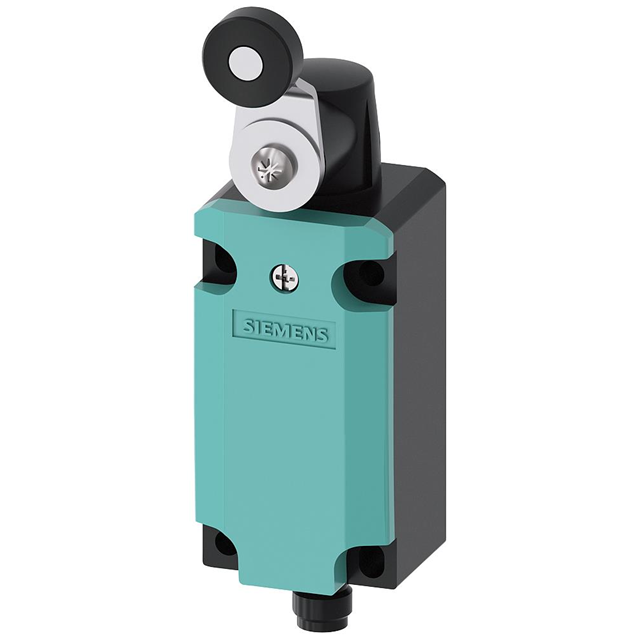

3SE51140CH011AC5

Active

Siemens

SWITCH LIMIT DPST 4A 125V

Deep-Dive with AI

Search across all available documentation for this part.

Documents3SE5 Position and Safety Switches Selection Guide 3SE5 Position and Safety Switches Brochure +2

3SE51140CH011AC5

Active

Siemens

SWITCH LIMIT DPST 4A 125V

Deep-Dive with AI

Documents3SE5 Position and Safety Switches Selection Guide 3SE5 Position and Safety Switches Brochure +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3SE51140CH011AC5

Actuator Type	Side Rotary, Roller
Circuit	DPST-NO/NC
Current Rating (Amps)	3 A, 4 A
Electrical Life	10000000 Cycles
Ingress Protection	IP66/IP67
Mechanical Life	15000000 Cycles
Mounting Type	Chassis Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Switch Function	Off-Mom, On-Mom
Termination Style	Connector
Voltage Rating - AC	125 V
Voltage Rating - DC	24 V

3SE5114 Series

Part	Mechanical Life	Termination Style	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Electrical Life	Ingress Protection	Voltage Rating - DC	Circuit	Operating Force	Switch Function	Mounting Type	Voltage Rating - AC
Siemens 3SE51141CD021AF3	15000000 Cycles	Connector	3 A	-25 °C	60 °C	Roller Plunger	10000000 Cycles	IP66/IP67	24 V	DPST-NO/NC	2039 gf	Off-Mom On-Mom	Chassis Mount
Siemens 3SE51141CH021AF3	15000000 Cycles	Connector	3 A	-25 °C	60 °C	Roller Side Rotary	10000000 Cycles	IP66/IP67	24 V	DPST-NO/NC		Off-Mom On-Mom	Chassis Mount
Siemens 3SE51140CD021AL0	15000000 Cycles	Connector	3 A 4 A	-25 °C	85 °C	Roller Plunger	10000000 Cycles	IP66/IP67	24 V	DPST-NO/NC	3059 gf	Off-Mom On-Mom	Chassis Mount	125 V
Siemens 3SE51140CA001AC5	15000000 Cycles	Connector	3 A 4 A	-25 °C	85 °C	Round (Pin Plunger)	10000000 Cycles	IP66/IP67	24 V	DPST-NO/NC	2039 gf	Off-Mom On-Mom	Chassis Mount	125 V
Siemens 3SE51141CA001AF3	15000000 Cycles	Connector	3 A	-25 °C	60 °C	Round (Pin Plunger)	10000000 Cycles	IP66/IP67	24 V	DPST-NO/NC	2039 gf	Off-Mom On-Mom	Chassis Mount
Siemens 3SE51141CH011AF3	15000000 Cycles	Connector	3 A	-25 °C	60 °C	Roller Side Rotary	10000000 Cycles	IP66/IP67	24 V	DPST-NO/NC		Off-Mom On-Mom	Chassis Mount
Siemens 3SE51141BA001AF3	15000000 Cycles	Connector	3 A	-25 °C	60 °C	Round (Pin Plunger)	10000000 Cycles	IP66/IP67	24 V	DPST-NO/NC	2039 gf	Off-Mom On-Mom	Chassis Mount
Siemens 3SE51140LA001AE1	15000000 Cycles	Connector	3 A 4 A	-25 °C	85 °C	Round (Pin Plunger)	10000000 Cycles	IP66/IP67	24 V	3PST-2NC/1NO	2039 gf	Off-Mom On-Mom	Chassis Mount	125 V
Siemens 3SE51140CD021AC5	15000000 Cycles	Connector	3 A 4 A	-25 °C	85 °C	Roller Plunger	10000000 Cycles	IP66/IP67	24 V	DPST-NO/NC	2039 gf	Off-Mom On-Mom	Chassis Mount	125 V
Siemens 3SE51140CH011AC5	15000000 Cycles	Connector	3 A 4 A	-25 °C	85 °C	Roller Side Rotary	10000000 Cycles	IP66/IP67	24 V	DPST-NO/NC		Off-Mom On-Mom	Chassis Mount	125 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 238.48
