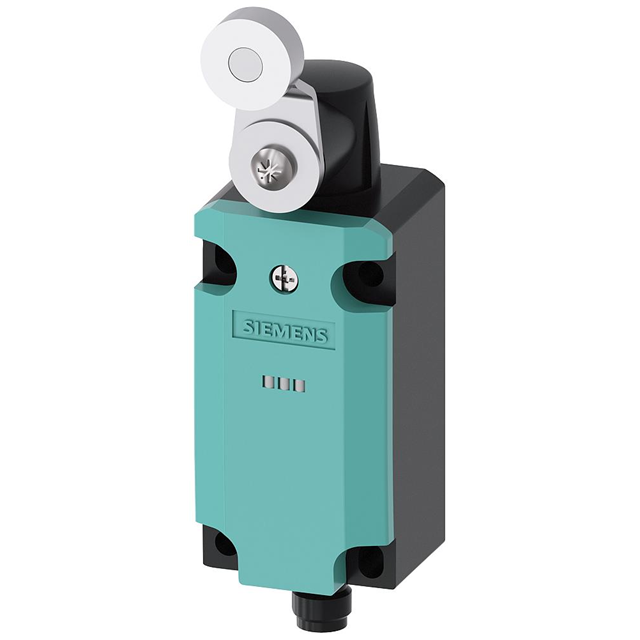

3SE51141CH021AF3
ActiveSiemens
SWITCH SNAP ACTION DPST 3A 24V
Deep-Dive with AI
Search across all available documentation for this part.
3SE51141CH021AF3
ActiveSiemens
SWITCH SNAP ACTION DPST 3A 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3SE51141CH021AF3 |
|---|---|
| Actuator Type | Side Rotary, Roller |
| Circuit | DPST-NO/NC |
| Current Rating (Amps) | 3 A |
| Electrical Life | 10000000 Cycles |
| Ingress Protection | IP66/IP67 |
| Mechanical Life | 15000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -25 °C |
| Switch Function | Off-Mom, On-Mom |
| Termination Style | Connector |
| Voltage Rating - DC | 24 V |
3SE5114 Series
| Part | Mechanical Life | Termination Style | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Type | Electrical Life | Ingress Protection | Voltage Rating - DC | Circuit | Operating Force | Switch Function | Mounting Type | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Siemens | 15000000 Cycles | Connector | 3 A | -25 °C | 60 °C | Roller Plunger | 10000000 Cycles | IP66/IP67 | 24 V | DPST-NO/NC | 2039 gf | Off-Mom On-Mom | Chassis Mount | |
Siemens | 15000000 Cycles | Connector | 3 A | -25 °C | 60 °C | Roller Side Rotary | 10000000 Cycles | IP66/IP67 | 24 V | DPST-NO/NC | Off-Mom On-Mom | Chassis Mount | ||
Siemens | 15000000 Cycles | Connector | 3 A 4 A | -25 °C | 85 °C | Roller Plunger | 10000000 Cycles | IP66/IP67 | 24 V | DPST-NO/NC | 3059 gf | Off-Mom On-Mom | Chassis Mount | 125 V |
Siemens | 15000000 Cycles | Connector | 3 A 4 A | -25 °C | 85 °C | Round (Pin Plunger) | 10000000 Cycles | IP66/IP67 | 24 V | DPST-NO/NC | 2039 gf | Off-Mom On-Mom | Chassis Mount | 125 V |
Siemens | 15000000 Cycles | Connector | 3 A | -25 °C | 60 °C | Round (Pin Plunger) | 10000000 Cycles | IP66/IP67 | 24 V | DPST-NO/NC | 2039 gf | Off-Mom On-Mom | Chassis Mount | |
Siemens | 15000000 Cycles | Connector | 3 A | -25 °C | 60 °C | Roller Side Rotary | 10000000 Cycles | IP66/IP67 | 24 V | DPST-NO/NC | Off-Mom On-Mom | Chassis Mount | ||
Siemens | 15000000 Cycles | Connector | 3 A | -25 °C | 60 °C | Round (Pin Plunger) | 10000000 Cycles | IP66/IP67 | 24 V | DPST-NO/NC | 2039 gf | Off-Mom On-Mom | Chassis Mount | |
Siemens | 15000000 Cycles | Connector | 3 A 4 A | -25 °C | 85 °C | Round (Pin Plunger) | 10000000 Cycles | IP66/IP67 | 24 V | 3PST-2NC/1NO | 2039 gf | Off-Mom On-Mom | Chassis Mount | 125 V |
Siemens | 15000000 Cycles | Connector | 3 A 4 A | -25 °C | 85 °C | Roller Plunger | 10000000 Cycles | IP66/IP67 | 24 V | DPST-NO/NC | 2039 gf | Off-Mom On-Mom | Chassis Mount | 125 V |
Siemens | 15000000 Cycles | Connector | 3 A 4 A | -25 °C | 85 °C | Roller Side Rotary | 10000000 Cycles | IP66/IP67 | 24 V | DPST-NO/NC | Off-Mom On-Mom | Chassis Mount | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 326.42 | |
Description
General part information
3SE5114 Series
Switch DPST-NO/NC Chassis Mount
