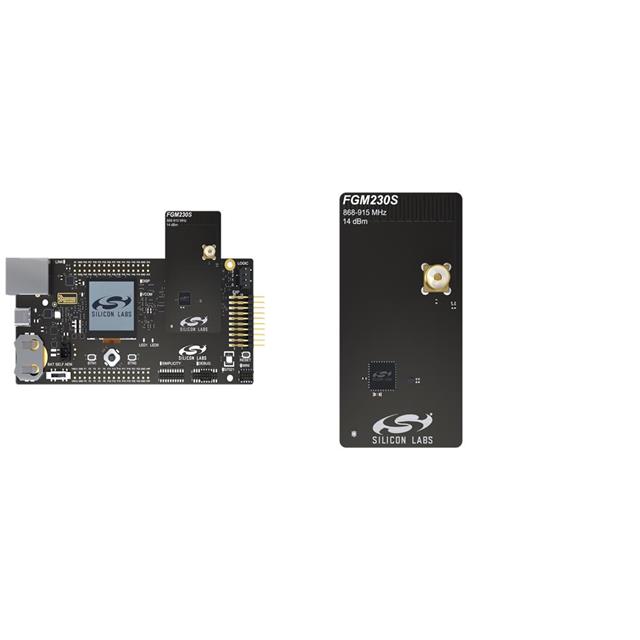

FGM230-RB4328B

Active

Silicon Labs

FGM230S RADIO BOARD MEDIUM SECUR

Search across all available documentation for this part.

Active

Silicon Labs

FGM230S RADIO BOARD MEDIUM SECUR

Technical Specifications

Parameters and characteristics for this part

Specification	FGM230-RB4328B

For Use With/Related Products	FGM230S
Frequency	915 MHz, 868 MHz
Supplied Contents	Board(s)
Type	Transceiver

Part	RF Family/Standard	Current - Receiving [Max]	Current - Receiving [Min]	Serial Interfaces	Sensitivity	Utilized IC / Part	Current - Transmitting [Max]	Current - Transmitting [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Frequency [Min]	Frequency [Max]	Antenna Type	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Modulation	Package / Case	Data Rate	Type	Supplied Contents	For Use With/Related Products	Frequency
Silicon Labs FGM230SB27HGN3R	General ISM < 1GHz	7.5 mA	4.1 mA	GPIO I2C I2S IrDA JTAG SPI UART USART	-110 dBm	EFR32FG23	47 mA	10.5 mA	85 °C	-40 °C	863 MHz 902 MHz	870 MHz 928 MHz	Antenna Not Included U.FL	Surface Mount	1.8 V	3.8 V	FSK GFSK O-QPSK	48-SMD Module	100 Kbps
Silicon Labs FGM230-RB4328B																				Transceiver	Board(s)	FGM230S	868 MHz 915 MHz
Silicon Labs FGM230-RB4328A																				Transceiver	Board(s)	FGM230S	868 MHz 915 MHz
Silicon Labs FGM230SB27HGN3	General ISM < 1GHz	7.5 mA	4.1 mA	GPIO I2C I2S IrDA JTAG SPI UART USART	-110 dBm	EFR32FG23	47 mA	10.5 mA	85 °C	-40 °C	863 MHz 902 MHz	870 MHz 928 MHz	Antenna Not Included U.FL	Surface Mount	1.8 V	3.8 V	FSK GFSK O-QPSK	48-SMD Module	100 Kbps
Silicon Labs FGM230SA27HGN3R	General ISM < 1GHz	7.5 mA	4.1 mA	GPIO I2C I2S IrDA JTAG SPI UART USART	-110 dBm	EFR32FG23	47 mA	10.5 mA	85 °C	-40 °C	863 MHz 902 MHz	870 MHz 928 MHz	Antenna Not Included U.FL	Surface Mount	1.8 V	3.8 V	FSK GFSK O-QPSK	48-SMD Module	100 Kbps

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 49.49

General part information

FGM230S - Transceiver 868MHz, 915MHz Evaluation Board

Technical documentation and resources

No documents available
