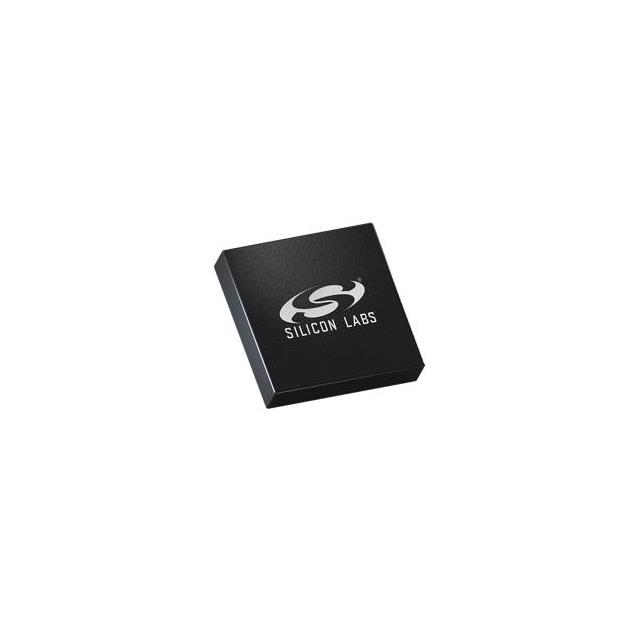

FGM230SB27HGN3

Active

Silicon Labs

RF TXRX MOD ISM<1GHZU.FL SMD

Search across all available documentation for this part.

Active

Silicon Labs

RF TXRX MOD ISM<1GHZU.FL SMD

Technical Specifications

Parameters and characteristics for this part

Specification	FGM230SB27HGN3

Antenna Type	Antenna Not Included, U.FL
Current - Receiving [Max]	7.5 mA
Current - Receiving [Min]	4.1 mA
Current - Transmitting [Max]	47 mA
Current - Transmitting [Min]	10.5 mA
Data Rate	100 Kbps
Frequency [Max]	928 MHz, 870 MHz
Frequency [Min]	863 MHz, 902 MHz
Modulation	FSK, O-QPSK, GFSK
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	48-SMD Module
RF Family/Standard	General ISM < 1GHz
Sensitivity	-110 dBm
Serial Interfaces	IrDA, SPI, JTAG, GPIO, I2C, I2S, UART, USART
Utilized IC / Part	EFR32FG23
Voltage - Supply [Max]	3.8 V
Voltage - Supply [Min]	1.8 V

Part	RF Family/Standard	Current - Receiving [Max]	Current - Receiving [Min]	Serial Interfaces	Sensitivity	Utilized IC / Part	Current - Transmitting [Max]	Current - Transmitting [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Frequency [Min]	Frequency [Max]	Antenna Type	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Modulation	Package / Case	Data Rate	Type	Supplied Contents	For Use With/Related Products	Frequency
Silicon Labs FGM230SB27HGN3R	General ISM < 1GHz	7.5 mA	4.1 mA	GPIO I2C I2S IrDA JTAG SPI UART USART	-110 dBm	EFR32FG23	47 mA	10.5 mA	85 °C	-40 °C	863 MHz 902 MHz	870 MHz 928 MHz	Antenna Not Included U.FL	Surface Mount	1.8 V	3.8 V	FSK GFSK O-QPSK	48-SMD Module	100 Kbps
Silicon Labs FGM230-RB4328B																				Transceiver	Board(s)	FGM230S	868 MHz 915 MHz
Silicon Labs FGM230-RB4328A																				Transceiver	Board(s)	FGM230S	868 MHz 915 MHz
Silicon Labs FGM230SB27HGN3	General ISM < 1GHz	7.5 mA	4.1 mA	GPIO I2C I2S IrDA JTAG SPI UART USART	-110 dBm	EFR32FG23	47 mA	10.5 mA	85 °C	-40 °C	863 MHz 902 MHz	870 MHz 928 MHz	Antenna Not Included U.FL	Surface Mount	1.8 V	3.8 V	FSK GFSK O-QPSK	48-SMD Module	100 Kbps
Silicon Labs FGM230SA27HGN3R	General ISM < 1GHz	7.5 mA	4.1 mA	GPIO I2C I2S IrDA JTAG SPI UART USART	-110 dBm	EFR32FG23	47 mA	10.5 mA	85 °C	-40 °C	863 MHz 902 MHz	870 MHz 928 MHz	Antenna Not Included U.FL	Surface Mount	1.8 V	3.8 V	FSK GFSK O-QPSK	48-SMD Module	100 Kbps

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General ISM < 1GHz Proprietary Transceiver Module 863MHz ~ 870MHz, 902MHz ~ 928MHz Antenna Not Included, U.FL Surface Mount
