GB15AH-XA - GB15AH-XA

GB15AH-XA

Active
NKK Switches

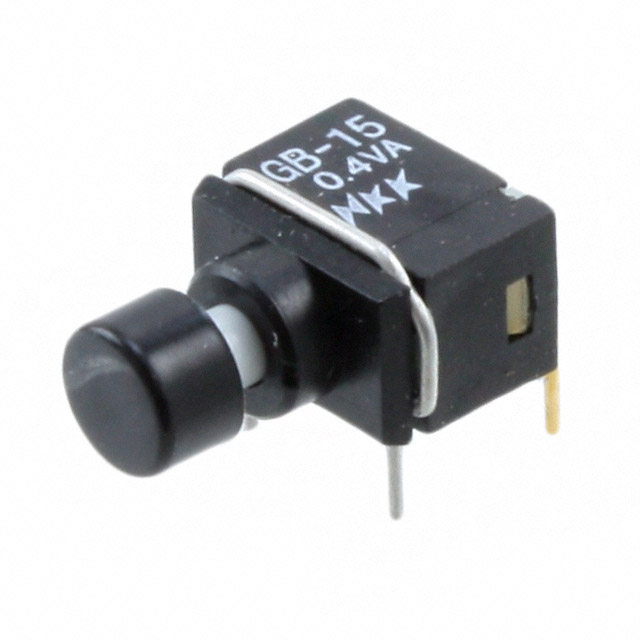

PUSHBUTTON SWITCH, GB SERIES, SPDT, ON-(ON), ROUND, BLACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetProduct Change Notice EN+1
GB15AH-XA - GB15AH-XA

GB15AH-XA

Active
NKK Switches

PUSHBUTTON SWITCH, GB SERIES, SPDT, ON-(ON), ROUND, BLACK

Deep-Dive with AI

DocumentsDatasheetProduct Change Notice EN+1

Technical Specifications

Parameters and characteristics for this part

SpecificationGB15AH-XA
Actuator MarkingNo Marking
Actuator TypeRound, Button
CircuitSPDT
Color - Actuator/CapBlack
Current Rating (Amps)0.4 VA
Electrical Life50000 Cycles
Mounting TypeThrough Hole, Right Angle
Operating Temperature [Max]85 °C
Operating Temperature [Min]-30 ░C
Switch FunctionOn-Mom
Termination StylePC Pin
TypeStandard
Voltage Rating - AC28 V
Voltage Rating - DC28 V
