GB15AH-XC - GB15AH-XC

GB15AH-XC

Active
NKK Switches

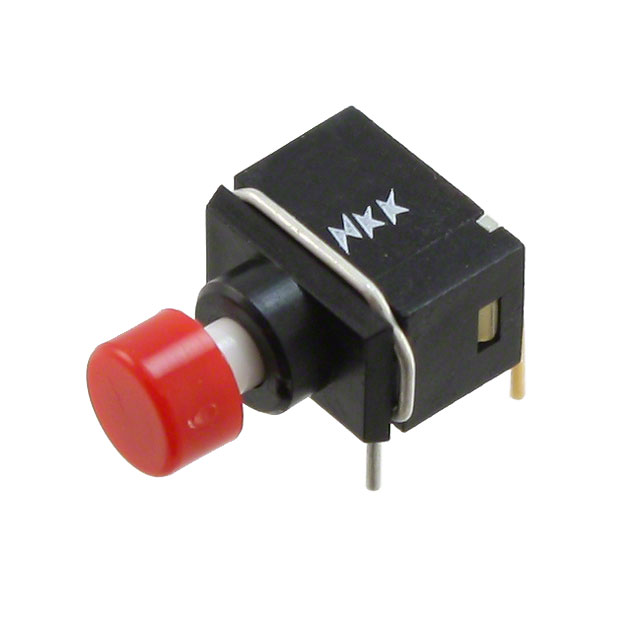

PUSHBUTTON SWITCH, GB SERIES, SPDT, ON-(ON), ROUND, RED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetTechnical Data Sheet EN+1
GB15AH-XC - GB15AH-XC

GB15AH-XC

Active
NKK Switches

PUSHBUTTON SWITCH, GB SERIES, SPDT, ON-(ON), ROUND, RED

Deep-Dive with AI

DocumentsDatasheetTechnical Data Sheet EN+1

Technical Specifications

Parameters and characteristics for this part

SpecificationGB15AH-XC
Actuator MarkingNo Marking
Actuator TypeRound, Button
CircuitSPDT
Color - Actuator/CapRed
Current Rating (Amps)0.4 VA
Electrical Life50000 Cycles
Mounting TypeThrough Hole, Right Angle
Operating Temperature [Max]85 °C
Operating Temperature [Min]-30 ░C
Switch FunctionOn-Mom
Termination StylePC Pin
TypeStandard
Voltage Rating - AC28 V
Voltage Rating - DC28 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 4.68
10$ 4.21
25$ 4.00
40$ 3.83
80$ 3.73
NewarkEach 1$ 12.69
5$ 11.83
10$ 10.88
25$ 9.93
50$ 8.98
100$ 7.94
250$ 7.13

Description

General part information

GB15AH Series

Pushbutton Switch SPDT Standard Through Hole, Right Angle
