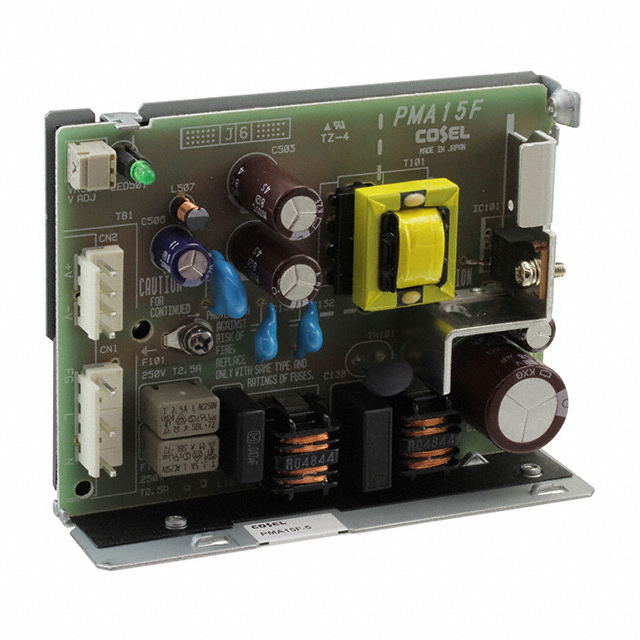

Specification	PMA15F-5

Applications	Medical
Approval Agency	cURus, TUV, CE
Current - Output 1	3 A
Efficiency	74 %
Minimum Load Required	No
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-10 °C
Size / Dimension Height	3.07 in
Size / Dimension Length	4.06 in
Size / Dimension Width	1.22 in
Type	Open Frame
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	85 VAC
Voltage - Isolation	2000 V
Voltage - Output 1	5 V

PMA15F Series

Part	Minimum Load Required	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Voltage - Isolation	Efficiency	Current - Output 1	Type	Number of Outputs	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum	Voltage - Output 1	Applications	Size / Dimension Width	Size / Dimension Height	Size / Dimension Length	Approval Agency
Cosel USA, Inc. PMA15F-5	No	70 °C	-10 °C	Chassis Mount	2000 V	74 %	3 A	Open Frame	1	85 VAC	264 V	5 V	Medical	1.22 in	3.07 in	4.06 in	CE cURus TUV
Cosel USA, Inc. PMA15F-5-T1N	No	70 °C	-10 °C	Chassis Mount	2000 V	74 %	3 A	Enclosed	1	85 VAC	264 V	5 V	Medical	1.22 in	3.07 in	4.06 in	CE cURus TUV
Cosel USA, Inc. PMA15F-15-T	No	70 °C	-10 °C	Chassis Mount	2000 V	79 %	1 A	Open Frame	1	85 VAC	264 V	15 V	Medical	1.22 in	3.07 in	4.06 in	CE cURus TUV
Cosel USA, Inc. PMA15F-3R3-TN	No	70 °C	-10 °C	Chassis Mount	2000 V	67 %	3 A	Enclosed	1	85 VAC	264 V	3.3 V	Medical	1.22 in	3.07 in	4.06 in	CE cURus TUV
Cosel USA, Inc. PMA15F-3R3-J1	No	70 °C	-10 °C	Chassis Mount	2000 V	67 %	3 A	Open Frame	1	85 VAC	264 V	3.3 V	Medical	1.22 in	3.07 in	4.06 in	CE cURus TUV
Cosel USA, Inc. PMA15F-5-T1	No	70 °C	-10 °C	Chassis Mount	2000 V	74 %	3 A	Open Frame	1	85 VAC	264 V	5 V	Medical	1.22 in	3.07 in	4.06 in	CE cURus TUV
Cosel USA, Inc. PMA15F-15	No	70 °C	-10 °C	Chassis Mount	2000 V	79 %	1 A	Open Frame	1	85 VAC	264 V	15 V	Medical	1.22 in	3.07 in	4.06 in	CE cURus TUV
Cosel USA, Inc. PMA15F-12	No	70 °C	-10 °C	Chassis Mount	2000 V	78 %	1.3 A	Open Frame	1	85 VAC	264 V	12 V	Medical	1.22 in	3.07 in	4.06 in	CE cURus TUV
Cosel USA, Inc. PMA15F-12-T1	No	70 °C	-10 °C	Chassis Mount	2000 V	78 %	1.3 A	Open Frame	1	85 VAC	264 V	12 V	Medical	1.22 in	3.07 in	4.06 in	CE cURus TUV
Cosel USA, Inc. PMA15F-5-J1N	No	70 °C	-10 °C	Chassis Mount	2000 V	74 %	3 A	Enclosed	1	85 VAC	264 V	5 V	Medical	1.22 in	3.07 in	4.06 in	CE cURus TUV

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

PMA15F-5 | Datasheet
