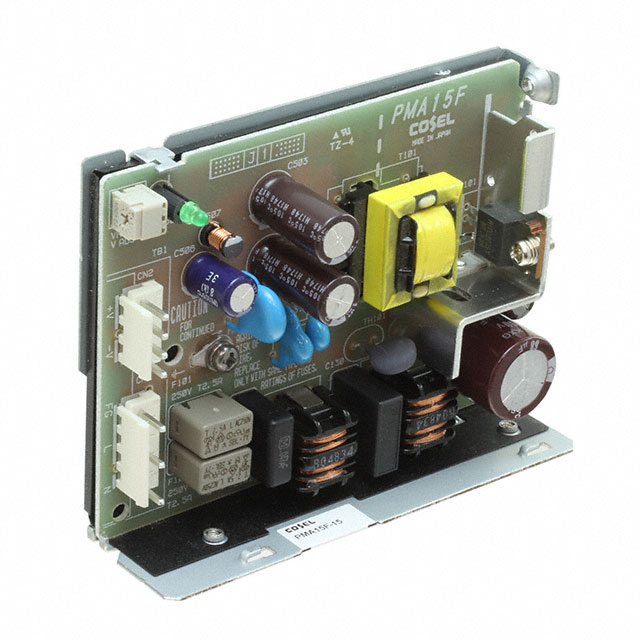

PMA15F-15

Active

Cosel USA, Inc.

AC/DC CONVERTER 15V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PMA15F-15

Active

Cosel USA, Inc.

AC/DC CONVERTER 15V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PMA15F-15

Applications	Medical
Approval Agency	cURus, CE, TUV
Current - Output 1	1 A
Efficiency	79 %
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C
Size / Dimension [x]	4.06 "
Size / Dimension [x]	103.1 mm
Size / Dimension [y]	31 mm
Size / Dimension [y]	1.22 "
Size / Dimension [z]	78 mm
Size / Dimension [z]	3.07 in
Type	Open Frame
Voltage - Isolation	2000 V
Voltage - Output 1	15 V

PMA15F Series

Part	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Current - Output 1	Approval Agency	Efficiency	Type	Mounting Type	Voltage - Isolation	Number of Outputs	Voltage - Output 1	Applications	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]
Cosel USA, Inc. PMA15F-5	78 mm	4.06 "	31 mm	103.1 mm	1.22 "	3.07 in	3 A	CE cURus TUV	74 %	Open Frame	Chassis Mount	2000 V	1	5 V	Medical	-10 °C	158 °F
Cosel USA, Inc. PMA15F-5-T1N	78 mm	4.06 "	31 mm	103.1 mm	1.22 "	3.07 in	3 A	CE cURus TUV	74 %	Enclosed	Chassis Mount	2000 V	1	5 V	Medical	-10 °C	158 °F
Cosel USA, Inc. PMA15F-15-T	78 mm	4.06 "	31 mm	103.1 mm	1.22 "	3.07 in	1 A	CE cURus TUV	79 %	Open Frame	Chassis Mount	2000 V	1	15 V	Medical	-10 °C	158 °F
Cosel USA, Inc. PMA15F-3R3-TN	78 mm	4.06 "	31 mm	103.1 mm	1.22 "	3.07 in	3 A	CE cURus TUV	67 %	Enclosed	Chassis Mount	2000 V	1	3.3 V	Medical	-10 °C	158 °F
Cosel USA, Inc. PMA15F-3R3-J1	78 mm	4.06 "	31 mm	103.1 mm	1.22 "	3.07 in	3 A	CE cURus TUV	67 %	Open Frame	Chassis Mount	2000 V	1	3.3 V	Medical	-10 °C	158 °F
Cosel USA, Inc. PMA15F-5-T1	78 mm	4.06 "	31 mm	103.1 mm	1.22 "	3.07 in	3 A	CE cURus TUV	74 %	Open Frame	Chassis Mount	2000 V	1	5 V	Medical	-10 °C	158 °F
Cosel USA, Inc. PMA15F-15	78 mm	4.06 "	31 mm	103.1 mm	1.22 "	3.07 in	1 A	CE cURus TUV	79 %	Open Frame	Chassis Mount	2000 V	1	15 V	Medical	-10 °C	158 °F
Cosel USA, Inc. PMA15F-12	78 mm	4.06 "	31 mm	103.1 mm	1.22 "	3.07 in	1.3 A	CE cURus TUV	78 %	Open Frame	Chassis Mount	2000 V	1	12 V	Medical	-10 °C	158 °F
Cosel USA, Inc. PMA15F-12-T1	78 mm	4.06 "	31 mm	103.1 mm	1.22 "	3.07 in	1.3 A	CE cURus TUV	78 %	Open Frame	Chassis Mount	2000 V	1	12 V	Medical	-10 °C	158 °F
Cosel USA, Inc. PMA15F-5-J1N	78 mm	4.06 "	31 mm	103.1 mm	1.22 "	3.07 in	3 A	CE cURus TUV	74 %	Enclosed	Chassis Mount	2000 V	1	5 V	Medical	-10 °C	158 °F

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 58.04

Description

General part information

PMA15F Series

Open Frame AC DC Converters 1 Output 15V 85 ~ 264 VAC Input
