LCQT-TSSOP28
ActiveAries Electronics

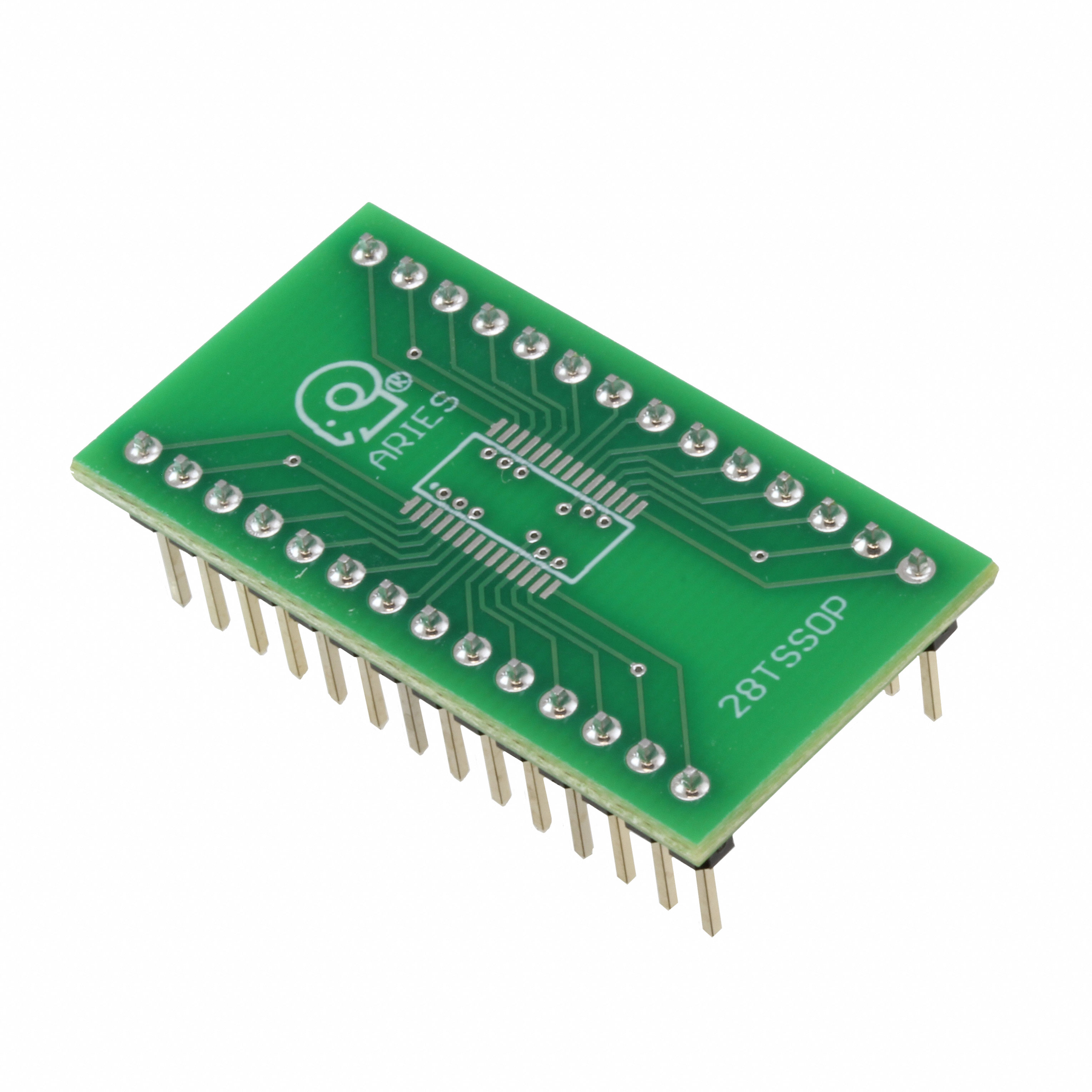

SOCKET ADAPTER TSSOP TO 28DIP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LCQT-TSSOP28
ActiveAries Electronics
SOCKET ADAPTER TSSOP TO 28DIP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | LCQT-TSSOP28 | LCQT-TS Series |
|---|---|---|
| Board Thickness | 0.062 in | 0.062 in |
| Board Thickness | 0.0625 in | 0.0625 in |
| Board Thickness | 1.57 mm | 1.57 mm |
| Material | FR4 Epoxy Glass | FR4 Epoxy Glass |
| Number of Positions | 28 | 14 - 28 |
| Number of Positions | - | 16 |
| Package Accepted | TSSOP | TSSOP |
| Pitch [x] | 0.026 in | 0.026 in |
| Pitch [x] | 0.65 mm | 0.65 mm |
| Proto Board Type | SMD to DIP | SMD to DIP |
| Size / Dimension [x] | 35.56 mm | 17.78 - 35.56 mm |
| Size / Dimension [x] | 1.4 in | 0.7 - 1.4 in |
| Size / Dimension [y] | 17.78 mm | 12.7 - 17.78 mm |
| Size / Dimension [y] | 0.7 in | 0.5 - 0.7 in |
LCQT-TS Series
SOCKET ADAPTER TSSOP TO 20DIP
| Part | Pitch [x] | Pitch [x] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Material | Board Thickness | Board Thickness | Board Thickness | Package Accepted | Number of Positions | Proto Board Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Aries Electronics LCQT-TSSOP20 | 0.026 in | 0.65 mm | 1 in | 25.4 mm | 17.78 mm | 0.7 in | FR4 Epoxy Glass | 0.062 in | 0.0625 in | 1.57 mm | TSSOP | 20 | SMD to DIP | |
Aries Electronics LCQT-TSSOP14 | 0.026 in | 0.65 mm | 0.7 in | 17.78 mm | 12.7 mm | 0.5 in | FR4 Epoxy Glass | 0.062 in | 0.0625 in | 1.57 mm | TSSOP | 14 | SMD to DIP | |
Aries Electronics LCQT-TSSOP16 | 0.026 in | 0.65 mm | 0.8 " | 20.32 mm | 17.78 mm | 0.7 in | FR4 Epoxy Glass | 0.062 in | 0.0625 in | 1.57 mm | TSSOP | SMD to DIP | 16 | |
Aries Electronics LCQT-TSSOP28 | 0.026 in | 0.65 mm | 1.4 in | 35.56 mm | 17.78 mm | 0.7 in | FR4 Epoxy Glass | 0.062 in | 0.0625 in | 1.57 mm | TSSOP | 28 | SMD to DIP |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.90 | |
| 17 | $ 7.14 | |||
| 34 | $ 6.75 | |||
| 51 | $ 6.59 | |||
| 102 | $ 6.26 | |||
| 255 | $ 5.60 | |||
| 510 | $ 5.27 | |||
| 1003 | $ 4.61 | |||
Description
General part information
LCQT-TS Series
SOCKET ADAPTER TSSOP TO 28DIP
