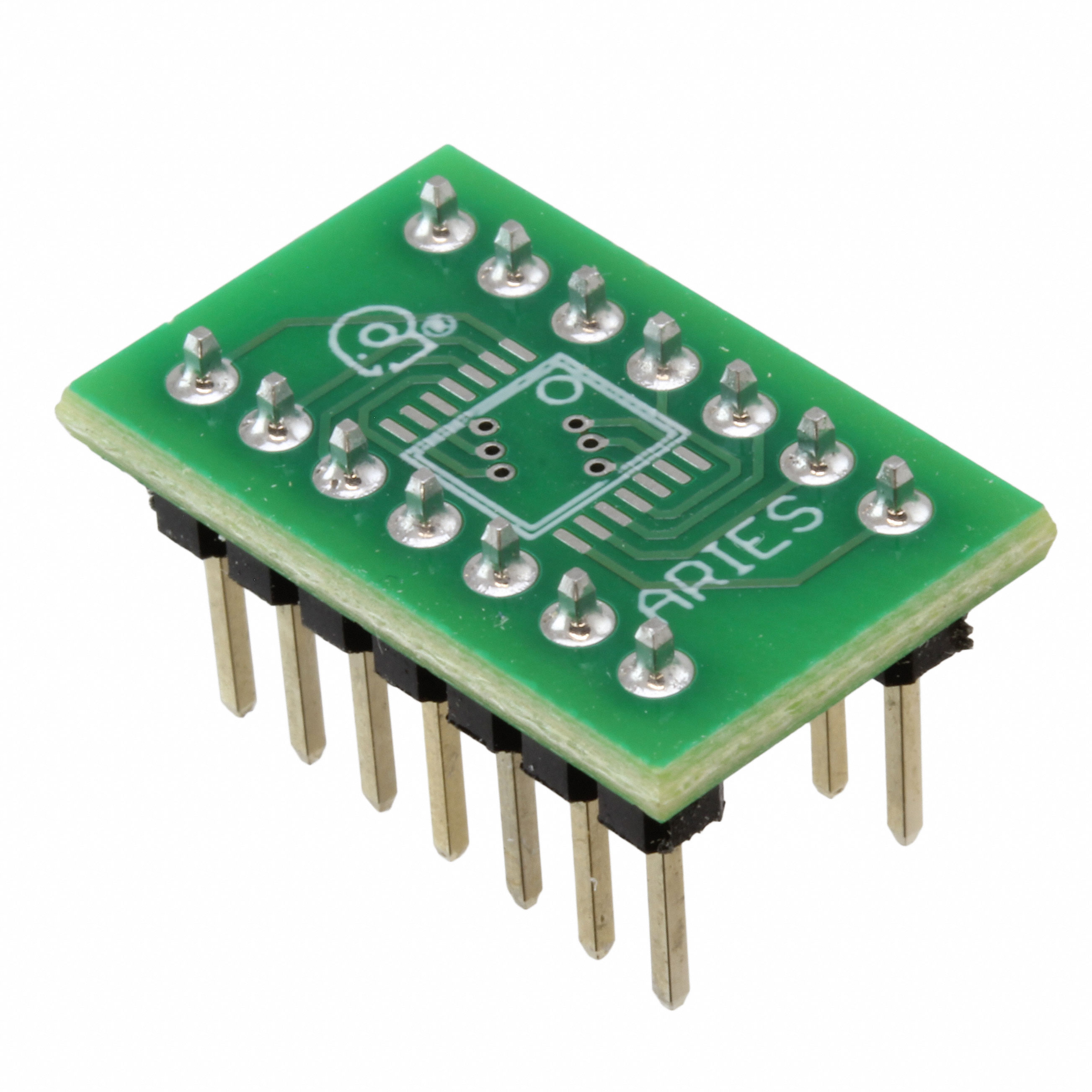

LCQT-TSSOP14

Active

Aries Electronics

SOCKET ADAPTER TSSOP TO 14DIP

Search across all available documentation for this part.

Active

Aries Electronics

SOCKET ADAPTER TSSOP TO 14DIP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SOCKET ADAPTER TSSOP TO 14DIP

Technical documentation and resources

Part	Pitch [x]	Pitch [x]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Material	Board Thickness	Board Thickness	Board Thickness	Package Accepted	Number of Positions	Proto Board Type	Number of Positions
Aries Electronics LCQT-TSSOP20	0.026 in	0.65 mm	1 in	25.4 mm	17.78 mm	0.7 in	FR4 Epoxy Glass	0.062 in	0.0625 in	1.57 mm	TSSOP	20	SMD to DIP
Aries Electronics LCQT-TSSOP14	0.026 in	0.65 mm	0.7 in	17.78 mm	12.7 mm	0.5 in	FR4 Epoxy Glass	0.062 in	0.0625 in	1.57 mm	TSSOP	14	SMD to DIP
Aries Electronics LCQT-TSSOP16	0.026 in	0.65 mm	0.8 "	20.32 mm	17.78 mm	0.7 in	FR4 Epoxy Glass	0.062 in	0.0625 in	1.57 mm	TSSOP		SMD to DIP	16
Aries Electronics LCQT-TSSOP28	0.026 in	0.65 mm	1.4 in	35.56 mm	17.78 mm	0.7 in	FR4 Epoxy Glass	0.062 in	0.0625 in	1.57 mm	TSSOP	28	SMD to DIP
