EB2011-CF

Active

NKK Switches

LIGHT TOUCH MINIATURE PUSHBUTTON

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

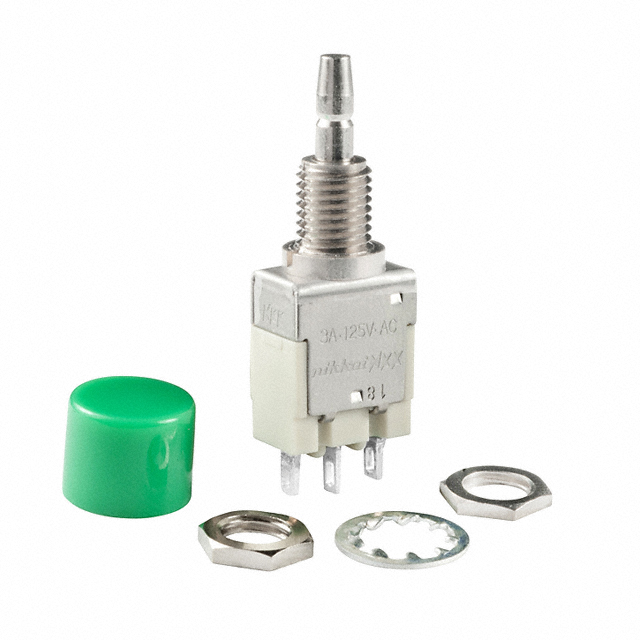

EB2011-CF

Active

NKK Switches

LIGHT TOUCH MINIATURE PUSHBUTTON

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EB2011-CF

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPDT
Color - Actuator/Cap	Green
Current Rating (Amps)	3 A
Electrical Life	25000 Steps
Features	Epoxy Sealed Terminals
Mechanical Life	100000 Cycles
Mounting Type	Panel Mount, Rear
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C
Panel Cutout Dimensions [diameter]	0.25 in
Switch Function	On-Mom
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	125 V

EB2011 Series

...

Part	Type	Current Rating (Amps)	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Circuit	Mounting Type	Features	Termination Style	Electrical Life	Mechanical Life	Voltage Rating - AC	Actuator Marking	Switch Function	Actuator Type	Color - Actuator/Cap	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [diameter]	Illumination Type, Color	Illumination Voltage (Nominal)	Voltage Rating - DC
NKK Switches EB2011-B-J41C	Standard	3 A	-10 °C	158 °F	SPDT	Panel Mount Snap-In	Epoxy Sealed Terminals	Solder Lug	25000 Steps	100000 Cycles	125 V	No Marking	On-Mom	Button Square	White	15 mm	12.5 mm
NKK Switches EB2011-F-J21F	Standard	3 A	-10 °C	158 °F	SPDT	Panel Mount Snap-In	Epoxy Sealed Terminals	Solder Lug	25000 Steps	100000 Cycles	125 V	No Marking	On-Mom	Button Square	Green	15 mm	12.5 mm
NKK Switches EB2011/U	Standard	3 A	-10 °C	158 °F	SPDT	Panel Mount Rear	Epoxy Sealed Terminals	Solder Lug	25000 Steps	100000 Cycles	125 V	No Marking	On-Mom	Plunger for Cap				0.25 in
NKK Switches EB2011-C-J21H	Standard	3 A	-10 °C	158 °F	SPDT	Panel Mount Snap-In	Epoxy Sealed Terminals	Solder Lug	25000 Steps	100000 Cycles	125 V	No Marking	On-Mom	Button Square	Red	15 mm	12.5 mm
NKK Switches EB2011-C-J24AFE	Illuminated Standard	3 A	-10 °C	158 °F	SPDT	Panel Mount Snap-In	Epoxy Sealed Terminals	Solder Lug	25000 Steps	100000 Cycles	125 V	No Marking	On-Mom	Button Square	Red	18.4 mm	15 mm		Green LED Yellow	2 VDC 2.1 VDC
NKK Switches EB2011P-A-J43ACF	Illuminated Standard	3 A	-10 °C	158 °F	SPDT	Panel Mount Snap-In	Epoxy Sealed Terminals	PC Pin	25000 Steps	100000 Cycles	125 V	No Marking	On-Mom	Button Square	Black	18.4 mm	15 mm		Green/Red LED	2 VDC 2.25 VDC
NKK Switches EB2011G-B-J23AFE	Illuminated Standard	0.4 VA	-10 °C	158 °F	SPDT	Panel Mount Snap-In	Epoxy Sealed Terminals	Solder Lug	50000 Cycles	100000 Cycles	28 V	No Marking	On-Mom	Button Square	White	18.4 mm	15 mm		Green LED Yellow	2.1 VDC 2.25 VDC	28 V
NKK Switches EB2011-CF	Standard	3 A	-10 °C	158 °F	SPDT	Panel Mount Rear	Epoxy Sealed Terminals	Solder Lug	25000 Steps	100000 Cycles	125 V	No Marking	On-Mom	Button Round	Green			0.25 in
NKK Switches EB2011G-BE	Standard	0.4 VA	-10 °C	158 °F	SPDT	Panel Mount Rear	Epoxy Sealed Terminals	Solder Lug	50000 Cycles	100000 Cycles	28 V	No Marking	On-Mom	Button Round	Yellow			0.25 in			28 V
NKK Switches EB2011-CH	Standard	3 A	-10 °C	158 °F	SPDT	Panel Mount Rear	Epoxy Sealed Terminals	Solder Lug	25000 Steps	100000 Cycles	125 V	No Marking	On-Mom	Button Round				0.25 in
