EB2011G-B-J23AFE

Active

NKK Switches

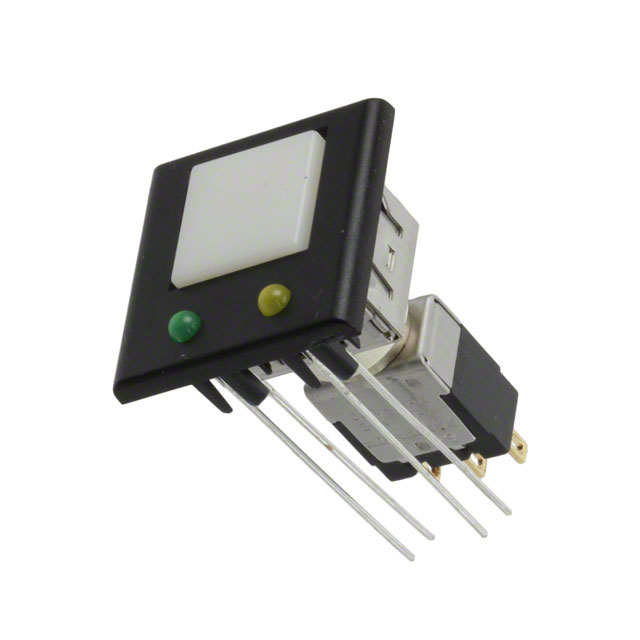

SWITCH PUSH BUTTON ON (ON) SPDT SQUARE BUTTON 28VAC 28VDC 0.4VA MOMENTARY PANEL MOUNT SOLDER LUG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EB2011G-B-J23AFE

Active

NKK Switches

SWITCH PUSH BUTTON ON (ON) SPDT SQUARE BUTTON 28VAC 28VDC 0.4VA MOMENTARY PANEL MOUNT SOLDER LUG

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EB2011G-B-J23AFE

Actuator Marking	No Marking
Actuator Type	Button, Square
Circuit	SPDT
Color - Actuator/Cap	White
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Epoxy Sealed Terminals
Illumination Type, Color	Green, Yellow, LED
Illumination Voltage (Nominal)	2.25 VDC, 2.1 VDC
Mechanical Life	100000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C
Panel Cutout Dimensions [x]	18.4 mm
Panel Cutout Dimensions [y]	15 mm
Switch Function	On-Mom
Termination Style	Solder Lug
Type	Illuminated, Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

EB2011 Series

...

Part	Type	Current Rating (Amps)	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Circuit	Mounting Type	Features	Termination Style	Electrical Life	Mechanical Life	Voltage Rating - AC	Actuator Marking	Switch Function	Actuator Type	Color - Actuator/Cap	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [diameter]	Illumination Type, Color	Illumination Voltage (Nominal)	Voltage Rating - DC
NKK Switches EB2011-B-J41C	Standard	3 A	-10 °C	158 °F	SPDT	Panel Mount Snap-In	Epoxy Sealed Terminals	Solder Lug	25000 Steps	100000 Cycles	125 V	No Marking	On-Mom	Button Square	White	15 mm	12.5 mm
NKK Switches EB2011-F-J21F	Standard	3 A	-10 °C	158 °F	SPDT	Panel Mount Snap-In	Epoxy Sealed Terminals	Solder Lug	25000 Steps	100000 Cycles	125 V	No Marking	On-Mom	Button Square	Green	15 mm	12.5 mm
NKK Switches EB2011/U	Standard	3 A	-10 °C	158 °F	SPDT	Panel Mount Rear	Epoxy Sealed Terminals	Solder Lug	25000 Steps	100000 Cycles	125 V	No Marking	On-Mom	Plunger for Cap				0.25 in
NKK Switches EB2011-C-J21H	Standard	3 A	-10 °C	158 °F	SPDT	Panel Mount Snap-In	Epoxy Sealed Terminals	Solder Lug	25000 Steps	100000 Cycles	125 V	No Marking	On-Mom	Button Square	Red	15 mm	12.5 mm
NKK Switches EB2011-C-J24AFE	Illuminated Standard	3 A	-10 °C	158 °F	SPDT	Panel Mount Snap-In	Epoxy Sealed Terminals	Solder Lug	25000 Steps	100000 Cycles	125 V	No Marking	On-Mom	Button Square	Red	18.4 mm	15 mm		Green LED Yellow	2 VDC 2.1 VDC
NKK Switches EB2011P-A-J43ACF	Illuminated Standard	3 A	-10 °C	158 °F	SPDT	Panel Mount Snap-In	Epoxy Sealed Terminals	PC Pin	25000 Steps	100000 Cycles	125 V	No Marking	On-Mom	Button Square	Black	18.4 mm	15 mm		Green/Red LED	2 VDC 2.25 VDC
NKK Switches EB2011G-B-J23AFE	Illuminated Standard	0.4 VA	-10 °C	158 °F	SPDT	Panel Mount Snap-In	Epoxy Sealed Terminals	Solder Lug	50000 Cycles	100000 Cycles	28 V	No Marking	On-Mom	Button Square	White	18.4 mm	15 mm		Green LED Yellow	2.1 VDC 2.25 VDC	28 V
NKK Switches EB2011-CF	Standard	3 A	-10 °C	158 °F	SPDT	Panel Mount Rear	Epoxy Sealed Terminals	Solder Lug	25000 Steps	100000 Cycles	125 V	No Marking	On-Mom	Button Round	Green			0.25 in
NKK Switches EB2011G-BE	Standard	0.4 VA	-10 °C	158 °F	SPDT	Panel Mount Rear	Epoxy Sealed Terminals	Solder Lug	50000 Cycles	100000 Cycles	28 V	No Marking	On-Mom	Button Round	Yellow			0.25 in			28 V
NKK Switches EB2011-CH	Standard	3 A	-10 °C	158 °F	SPDT	Panel Mount Rear	Epoxy Sealed Terminals	Solder Lug	25000 Steps	100000 Cycles	125 V	No Marking	On-Mom	Button Round				0.25 in
