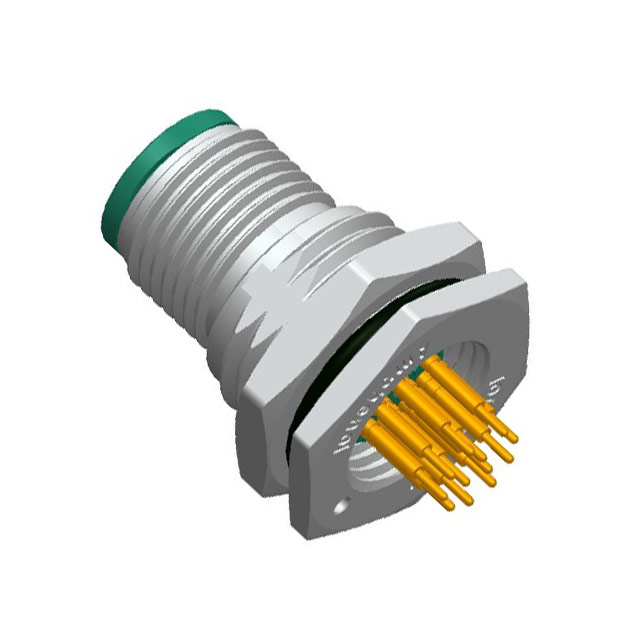

M12A-12PMMP-SF8001
ActiveSENSOR CONNECTOR, M SERIES, M12, PLUG, 12 CONTACTS, PCB PIN, STRAIGHT PANEL MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
M12A-12PMMP-SF8001
ActiveSENSOR CONNECTOR, M SERIES, M12, PLUG, 12 CONTACTS, PCB PIN, STRAIGHT PANEL MOUNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M12A-12PMMP-SF8001 |
|---|---|
| Backshell Material, Plating | Copper Alloy |
| Color | Silver |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 1.5 A |
| Ingress Protection | IP68, IP69K |
| Insert Material | Polyamide (PA), Nylon, Glass Filled |
| Mounting Feature | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 12 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | A |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy |
| Shell Size - Insert | M12-12 |
| Shielding | Shielded |
| Termination | Solder |
| Voltage Rating | 30 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 12.95 | |
| 10 | $ 11.48 | |||
| 25 | $ 11.04 | |||
| 50 | $ 10.60 | |||
| 100 | $ 10.01 | |||
| 250 | $ 9.13 | |||
| 450 | $ 8.54 | |||
| 950 | $ 7.83 | |||
Description
General part information
M12A-12PMMP Series
The M12A-12PMMP-SF8001 from Amphenol LTW is M series sensor connector. This M12 A-coded (metal nut) size connector for panel mount meets the most demanding needs in factory automation applications. M-series is perfectly suitable for industrial equipment, machinery and automation that offer safety in harsh environmental conditions including corrosion, shock vibration, dust, moisture build-up and extremely adverse installation situations.
