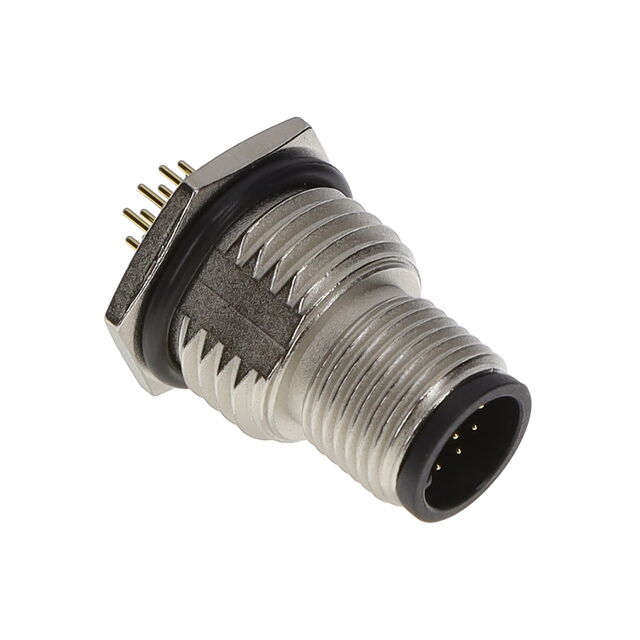

M12A-12PMMP-SF8002

Active

Amphenol LTW

CONNECTOR: M12; SOCKET; MALE; PIN: 12

Search across all available documentation for this part.

Active

Amphenol LTW

CONNECTOR: M12; SOCKET; MALE; PIN: 12

Technical Specifications

Parameters and characteristics for this part

Specification	M12A-12PMMP-SF8002

Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	1.5 A
Ingress Protection	IP68, IP69K
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	12
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	M12-12
Shielding	Unshielded
Termination	Solder
Voltage Rating	30 VAC

Part	Shell Finish	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Shielding	Contact Finish - Mating	Color	Termination	Number of Positions	Shell Size - Insert	Orientation	Primary Material	Insert Material	Current Rating (Amps)	Features	Ingress Protection	Shell Material	Voltage Rating	Contact Material	Mounting Type	Backshell Material, Plating	Mounting Feature
Amphenol LTW M12A-12PMMP-EE0001	Nickel	-40 °C	105 ░C	Male Pins Receptacle	Shielded	Gold	Silver	Solder	12	M12-12	A	Metal	Thermoplastic	2 A	Board Guide	IP67 - Dust Tight Waterproof	Zinc Alloy	30 VDC	Copper Alloy	Through Hole
Amphenol LTW M12A-12PMMP-SF8001	Nickel	-40 °C	105 ░C	Male Pins Receptacle	Shielded	Gold	Silver	Solder	12	M12-12	A	Metal	Polyamide (PA) Nylon Glass Filled	1.5 A		IP68 IP69K	Zinc Alloy	30 VAC	Copper Alloy	Panel Mount Through Hole	Copper Alloy	Bulkhead - Front Side Nut
Amphenol LTW M12A-12PMMP-SF8002	Nickel	-40 °C	105 ░C	Male Pins Receptacle	Unshielded	Gold	Silver	Solder	12	M12-12	A	Metal	Polyamide (PA) Nylon Glass Filled	1.5 A		IP68 IP69K	Zinc Alloy	30 VAC	Copper Alloy	Panel Mount Through Hole		Bulkhead - Front Side Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Position Circular Connector Receptacle, Male Pins Solder
