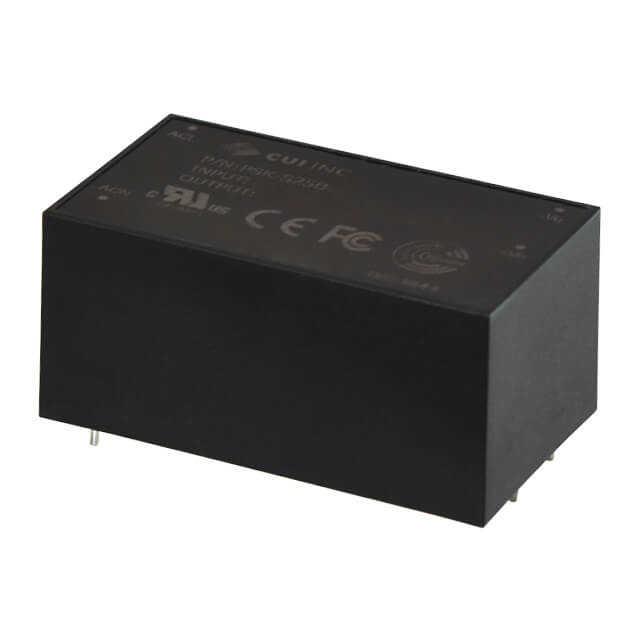

PSK-S25B-48-PB

Active

CUI Inc.

AC/DC CONVERTER 48V 25W

Deep-Dive with AI

Search across all available documentation for this part.

PSK-S25B-48-PB

Active

CUI Inc.

AC/DC CONVERTER 48V 25W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PSK-S25B-48-PB

Applications	Household Appliances, ITE (Commercial)
Approval Agency	IEC, EN, TUV, UL, CB Scheme, SIQ
Current - Output (Max) [Max]	520 mA
Efficiency	87 %
Features	Universal Input
Line Regulation	1 %
Load Regulation	1 %
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 °C
Package / Case	6-DIP Module
Power (Watts)	25 W
Size / Dimension [x]	2.09 in
Size / Dimension [x]	53.1 mm
Size / Dimension [y]	30.3 mm
Size / Dimension [y]	1.19 "
Size / Dimension [z]	0.98 in
Size / Dimension [z]	24.8 mm
Standard Number	55032 Class A, 61204-3, 61000-6-1, 61000-3-2, 60950-1, 61000-6-2, 62368-1, 61000-3-3, 55024
Type	Enclosed
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	90 VAC, 120 VDC
Voltage - Output 1	48 V

PSK-S25 Series

Part	Number of Outputs	Line Regulation	Voltage - Input [Max]	Voltage - Input [Min]	Current - Output (Max) [Max]	Efficiency	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Package / Case	Approval Agency	Features	Mounting Type	Standard Number	Type	Load Regulation	Applications	Voltage - Output 1	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	DC Voltage - Input (Max) [Max]	Input Type	Voltage - Isolation	DC Voltage - Input (Min) [Min]	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Current - Output 1
CUI Inc. PSK-S25D-15	1	0.5 %	264 VAC 370 VDC	85 VAC 100 V	1.6 A	84 %	1.89 in	48 mm	2.76 in	0.93 in	23.5 mm	70 mm	9-DIP Module 6 Leads	CB Scheme IEC UL	Adjustable Output Universal Input	Through Hole	62368-1	Enclosed	1 %	ITE (Commercial)	15 V	24 W	85 °C	-40 °C
CUI Inc. PSK-S25D-12-DIN	1				2.1 A	83 %	1.44 in	36.6 mm	2.13 "	3.78 "	96.1 mm	54 mm		CB Scheme IEC UL	Adjustable Output Universal Input		62368-1			ITE (Commercial)	12 V	25 W	85 °C	-40 °C	370 V	AC or DC	4000 V	100 V	85 VAC	264 VAC
CUI Inc. PSK-S25D-9-T	1		264 VAC 370 VDC	85 VAC 100 V		81 %	2.13 in	54 mm	3.78 "	1.26 in	32 mm	96.1 mm		CB Scheme IEC UL	Adjustable Output Universal Input	Chassis Mount	62368-1	Enclosed		ITE (Commercial)	9 V	23 W	85 °C	-40 °C			4000 V				2.5 A
CUI Inc. PSK-S25D-48	1	0.5 %	264 VAC 370 VDC	85 VAC 100 V	500 mA	87 %	1.89 in	48 mm	2.76 in	0.93 in	23.5 mm	70 mm	9-DIP Module 6 Leads	CB Scheme IEC UL	Adjustable Output Universal Input	Through Hole	62368-1	Enclosed	1 %	ITE (Commercial)	48 V	24 W	85 °C	-40 °C
CUI Inc. PSK-S25B-24	1	1 %	264 VAC 370 VDC	90 VAC 120 VDC	1.05 A	86 %	1.19 "	30.3 mm	2.09 in	0.98 in	24.8 mm	53.1 mm	4-DIP Module	CB Scheme EN IEC SIQ TUV UL	Universal Input	Through Hole	55024 55032 Class A 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 61204-3 62368-1	Enclosed	1 %	Household Appliances ITE (Commercial)	24 V	25 W	70 °C	-30 °C
CUI Inc. PSK-S25D-9-DIN	1				2.5 A	81 %	1.44 in	36.6 mm	2.13 "	3.78 "	96.1 mm	54 mm		CB Scheme IEC UL	Adjustable Output Universal Input		62368-1			ITE (Commercial)	9 V	23 W	85 °C	-40 °C	370 V	AC or DC	4000 V	100 V	85 VAC	264 VAC
CUI Inc. PSK-S25D-15-DIN	1				1.6 A	84 %	1.44 in	36.6 mm	2.13 "	3.78 "	96.1 mm	54 mm		CB Scheme IEC UL	Adjustable Output Universal Input		62368-1			ITE (Commercial)	15 V	24 W	85 °C	-40 °C	370 V	AC or DC	4000 V	100 V	85 VAC	264 VAC
CUI Inc. PSK-S25B-5	1	1 %	264 VAC 370 VDC	90 VAC 120 VDC	4 A	81 %	1.19 "	30.3 mm	2.09 in	0.98 in	24.8 mm	53.1 mm	4-DIP Module	CB Scheme EN IEC SIQ TUV UL	Universal Input	Through Hole	55024 55032 Class A 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 61204-3 62368-1	Enclosed	1 %	Household Appliances ITE (Commercial)	5 V	20 W	70 °C	-30 °C
CUI Inc. PSK-S25D-48-DIN	1				500 mA	87 %	1.44 in	36.6 mm	2.13 "	3.78 "	96.1 mm	54 mm		CB Scheme IEC UL	Adjustable Output Universal Input		62368-1			ITE (Commercial)	48 V	24 W	85 °C	-40 °C	370 V	AC or DC	4000 V	100 V	85 VAC	264 VAC
CUI Inc. PSK-S25B-48-PB	1	1 %	264 VAC 370 VDC	90 VAC 120 VDC	520 mA	87 %	1.19 "	30.3 mm	2.09 in	0.98 in	24.8 mm	53.1 mm	6-DIP Module	CB Scheme EN IEC SIQ TUV UL	Universal Input	Through Hole	55024 55032 Class A 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 61204-3 62368-1	Enclosed	1 %	Household Appliances ITE (Commercial)	48 V	25 W	70 °C	-30 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	52	$ 35.12

Description

General part information

PSK-S25 Series

Enclosed AC DC Converters 1 Output 48V 520mA 90 ~ 264 VAC, 120 ~ 370 VDC Input

Documents

Technical documentation and resources

No documents available
