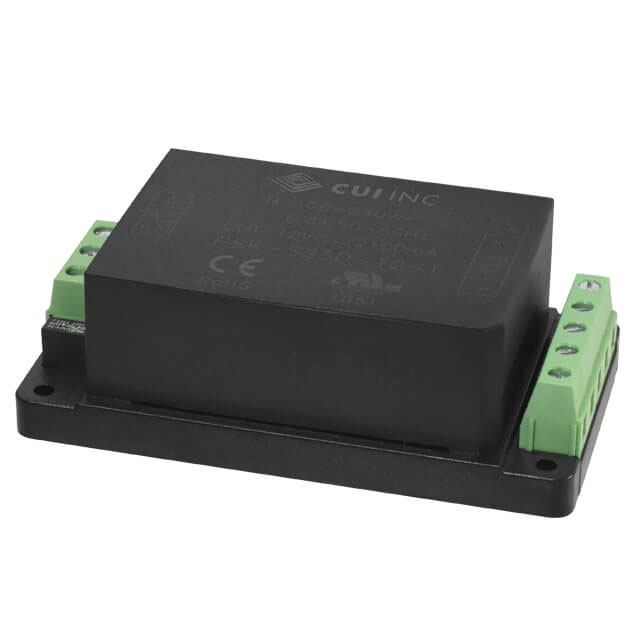

PSK-S25D-9-T

Obsolete

CUI Inc.

AC/DC CONVERTER 9V 23W

Deep-Dive with AI

Search across all available documentation for this part.

PSK-S25D-9-T

Obsolete

CUI Inc.

AC/DC CONVERTER 9V 23W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PSK-S25D-9-T

Applications	ITE (Commercial)
Approval Agency	CB Scheme, UL, IEC
Current - Output 1	2.5 A
Efficiency	81 %
Features	Adjustable Output, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	23 W
Size / Dimension [x]	3.78 "
Size / Dimension [x]	96.1 mm
Size / Dimension [y]	54 mm
Size / Dimension [y]	2.13 in
Size / Dimension [z]	1.26 in
Size / Dimension [z]	32 mm
Standard Number	62368-1
Type	Enclosed
Voltage - Input [Max]	264 VAC, 370 VDC
Voltage - Input [Min]	100 V, 85 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	9 V

PSK-S25 Series

Part	Number of Outputs	Line Regulation	Voltage - Input [Max]	Voltage - Input [Min]	Current - Output (Max) [Max]	Efficiency	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Package / Case	Approval Agency	Features	Mounting Type	Standard Number	Type	Load Regulation	Applications	Voltage - Output 1	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	DC Voltage - Input (Max) [Max]	Input Type	Voltage - Isolation	DC Voltage - Input (Min) [Min]	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Current - Output 1
CUI Inc. PSK-S25D-15	1	0.5 %	264 VAC 370 VDC	85 VAC 100 V	1.6 A	84 %	1.89 in	48 mm	2.76 in	0.93 in	23.5 mm	70 mm	9-DIP Module 6 Leads	CB Scheme IEC UL	Adjustable Output Universal Input	Through Hole	62368-1	Enclosed	1 %	ITE (Commercial)	15 V	24 W	85 °C	-40 °C
CUI Inc. PSK-S25D-12-DIN	1				2.1 A	83 %	1.44 in	36.6 mm	2.13 "	3.78 "	96.1 mm	54 mm		CB Scheme IEC UL	Adjustable Output Universal Input		62368-1			ITE (Commercial)	12 V	25 W	85 °C	-40 °C	370 V	AC or DC	4000 V	100 V	85 VAC	264 VAC
CUI Inc. PSK-S25D-9-T	1		264 VAC 370 VDC	85 VAC 100 V		81 %	2.13 in	54 mm	3.78 "	1.26 in	32 mm	96.1 mm		CB Scheme IEC UL	Adjustable Output Universal Input	Chassis Mount	62368-1	Enclosed		ITE (Commercial)	9 V	23 W	85 °C	-40 °C			4000 V				2.5 A
CUI Inc. PSK-S25D-48	1	0.5 %	264 VAC 370 VDC	85 VAC 100 V	500 mA	87 %	1.89 in	48 mm	2.76 in	0.93 in	23.5 mm	70 mm	9-DIP Module 6 Leads	CB Scheme IEC UL	Adjustable Output Universal Input	Through Hole	62368-1	Enclosed	1 %	ITE (Commercial)	48 V	24 W	85 °C	-40 °C
CUI Inc. PSK-S25B-24	1	1 %	264 VAC 370 VDC	90 VAC 120 VDC	1.05 A	86 %	1.19 "	30.3 mm	2.09 in	0.98 in	24.8 mm	53.1 mm	4-DIP Module	CB Scheme EN IEC SIQ TUV UL	Universal Input	Through Hole	55024 55032 Class A 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 61204-3 62368-1	Enclosed	1 %	Household Appliances ITE (Commercial)	24 V	25 W	70 °C	-30 °C
CUI Inc. PSK-S25D-9-DIN	1				2.5 A	81 %	1.44 in	36.6 mm	2.13 "	3.78 "	96.1 mm	54 mm		CB Scheme IEC UL	Adjustable Output Universal Input		62368-1			ITE (Commercial)	9 V	23 W	85 °C	-40 °C	370 V	AC or DC	4000 V	100 V	85 VAC	264 VAC
CUI Inc. PSK-S25D-15-DIN	1				1.6 A	84 %	1.44 in	36.6 mm	2.13 "	3.78 "	96.1 mm	54 mm		CB Scheme IEC UL	Adjustable Output Universal Input		62368-1			ITE (Commercial)	15 V	24 W	85 °C	-40 °C	370 V	AC or DC	4000 V	100 V	85 VAC	264 VAC
CUI Inc. PSK-S25B-5	1	1 %	264 VAC 370 VDC	90 VAC 120 VDC	4 A	81 %	1.19 "	30.3 mm	2.09 in	0.98 in	24.8 mm	53.1 mm	4-DIP Module	CB Scheme EN IEC SIQ TUV UL	Universal Input	Through Hole	55024 55032 Class A 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 61204-3 62368-1	Enclosed	1 %	Household Appliances ITE (Commercial)	5 V	20 W	70 °C	-30 °C
CUI Inc. PSK-S25D-48-DIN	1				500 mA	87 %	1.44 in	36.6 mm	2.13 "	3.78 "	96.1 mm	54 mm		CB Scheme IEC UL	Adjustable Output Universal Input		62368-1			ITE (Commercial)	48 V	24 W	85 °C	-40 °C	370 V	AC or DC	4000 V	100 V	85 VAC	264 VAC
CUI Inc. PSK-S25B-48-PB	1	1 %	264 VAC 370 VDC	90 VAC 120 VDC	520 mA	87 %	1.19 "	30.3 mm	2.09 in	0.98 in	24.8 mm	53.1 mm	6-DIP Module	CB Scheme EN IEC SIQ TUV UL	Universal Input	Through Hole	55024 55032 Class A 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 61204-3 62368-1	Enclosed	1 %	Household Appliances ITE (Commercial)	48 V	25 W	70 °C	-30 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

PSK-S25 Series

Enclosed AC DC Converters 1 Output 9V 85 ~ 264 VAC, 100 ~ 370 VDC Input

Documents

Technical documentation and resources

No documents available
