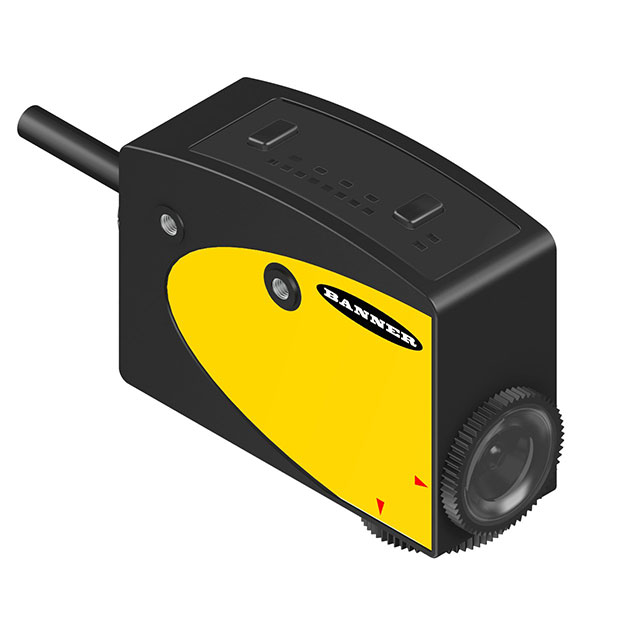

R58ECRGB1

Active

BANNER ENGINEERING

PHOTOELECTRIC SENSOR, R58 SERIES, REGISTRATION MARK, PARALLEL, 10MM, NPN / PNP, 10-30V, PRE-WIRED

Search across all available documentation for this part.

Active

BANNER ENGINEERING

PHOTOELECTRIC SENSOR, R58 SERIES, REGISTRATION MARK, PARALLEL, 10MM, NPN / PNP, 10-30V, PRE-WIRED

Technical Specifications

Parameters and characteristics for this part

Specification	R58ECRGB1

Adjustment Type	Adjustable
Cable Length	78.74 in
Cable Length	2 m
Connection Method	Cable
Ingress Protection	NEMA 6P, IEC IP67
Light Source	Green (525nm), RED (636nm), Blue (472nm)
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Output Configuration	NPN/PNP
Response Time	50 µs
Sensing Distance	0.394 in
Sensing Distance	10 mm
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Adjustment Type	Sensing Distance	Sensing Distance	Light Source	Response Time	Output Configuration	Ingress Protection	Voltage - Supply [Max]	Voltage - Supply [Min]	Connection Method	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Cable Length	Cable Length	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]
BANNER ENGINEERING R58ECRGB1Q	Adjustable	0.394 in	10 mm	Blue (472nm) Green (525nm) RED (636nm)	50 µs	NPN/PNP	NEMA 6P IEC IP67	30 VDC	10 VDC	Connector	55 °C	-10 °C
BANNER ENGINEERING R58ECRGB1	Adjustable	0.394 in	10 mm	Blue (472nm) Green (525nm) RED (636nm)	50 µs	NPN/PNP	NEMA 6P IEC IP67	30 VDC	10 VDC	Cable	55 °C	-10 °C	78.74 in	2 m
BANNER ENGINEERING R58ECRGB2	Adjustable	0.394 in	10 mm	Blue (472nm) Green (525nm) RED (636nm)	50 µs	NPN/PNP	NEMA 6P IEC IP67	30 VDC	10 VDC	Cable			78.74 in	2 m	-10 °C	50 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 387.00
Newark	Each	1	$ 382.39

General part information

Optical Sensor 0.394" (10mm) NPN/PNP
