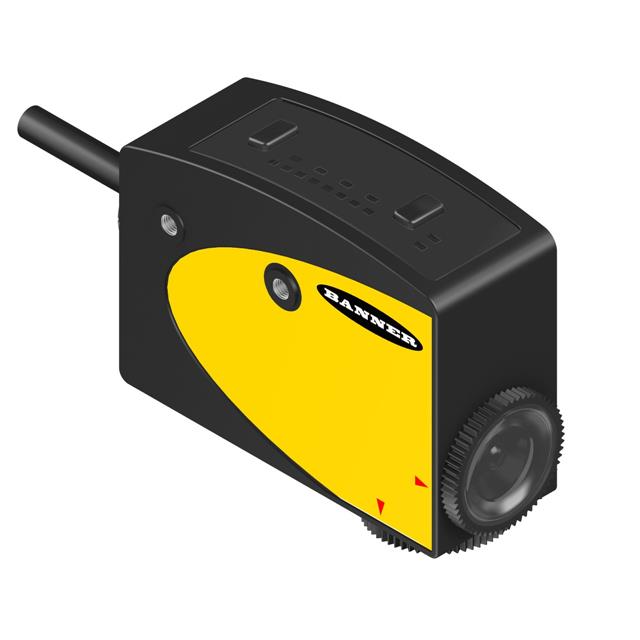

R58ECRGB2

Active

BANNER ENGINEERING

PHOTOELECTRIC SENSOR; SENSOR OUTPUT TYPE:NPN/PNP; SENSING RANGE MAX:10MM; SUPPLY VOLTAGE DC MIN:10V; SUPPLY VOLTAGE DC MAX:30V; OUTPUT CURRENT:100MA; PRODUCT RANGE:R58 SERIES; SENSOR HOUSING:RECTANGULAR; SENSOR INPUT:OPTICAL ROHS COMPLIANT: YES |BANNER ENGINEERING R58ECRGB2

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

R58ECRGB2

Active

BANNER ENGINEERING

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R58ECRGB2

Adjustment Type	Adjustable
Cable Length	78.74 in
Cable Length	2 m
Connection Method	Cable
Ingress Protection	NEMA 6P, IEC IP67
Light Source	Green (525nm), RED (636nm), Blue (472nm)
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Output Configuration	NPN/PNP
Response Time	50 µs
Sensing Distance	0.394 in
Sensing Distance	10 mm
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

R58ECR Series

Part	Adjustment Type	Sensing Distance	Sensing Distance	Light Source	Response Time	Output Configuration	Ingress Protection	Voltage - Supply [Max]	Voltage - Supply [Min]	Connection Method	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Cable Length	Cable Length	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]
BANNER ENGINEERING R58ECRGB1Q	Adjustable	0.394 in	10 mm	Blue (472nm) Green (525nm) RED (636nm)	50 µs	NPN/PNP	NEMA 6P IEC IP67	30 VDC	10 VDC	Connector	55 °C	-10 °C
BANNER ENGINEERING R58ECRGB1	Adjustable	0.394 in	10 mm	Blue (472nm) Green (525nm) RED (636nm)	50 µs	NPN/PNP	NEMA 6P IEC IP67	30 VDC	10 VDC	Cable	55 °C	-10 °C	78.74 in	2 m
BANNER ENGINEERING R58ECRGB2	Adjustable	0.394 in	10 mm	Blue (472nm) Green (525nm) RED (636nm)	50 µs	NPN/PNP	NEMA 6P IEC IP67	30 VDC	10 VDC	Cable			78.74 in	2 m	-10 °C	50 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 387.00
Newark	Each	1	$ 420.51
		3	$ 412.65
		5	$ 400.86

Description

General part information

R58ECR Series

Optical Sensor 0.394" (10mm) NPN/PNP

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet
