PESC-04-12-04-01-S-VT-LC

Active

Samtec Inc.

.100" POWERSTRIP/40 A SIGNAL/PO

Deep-Dive with AI

Search across all available documentation for this part.

Documents.100" PowerStrip™/40 A Signal/Power Combo Socket Strip Datasheet +2

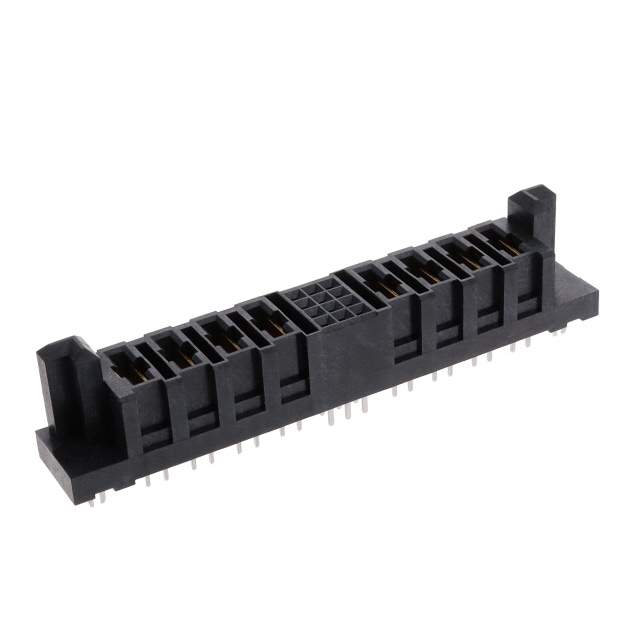

PESC-04-12-04-01-S-VT-LC

Active

Samtec Inc.

.100" POWERSTRIP/40 A SIGNAL/PO

Deep-Dive with AI

Documents.100" PowerStrip™/40 A Signal/Power Combo Socket Strip Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PESC-04-12-04-01-S-VT-LC

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Post	0.097 in
Contact Length - Post	2.47 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.497 in
Insulation Height	12.62 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	20
Number of Positions [custom]	8
Number of Positions [custom]	12
Number of Positions Loaded	All
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Termination	Solder

PESC-04 Series

Power to the Board .100" PowerStrip/40 A Signal/Power Combo Socket Strip

Part	Insulation Material	Number of Positions Loaded	Mounting Type	Contact Material	Number of Positions	Number of Positions [custom]	Number of Positions [custom]	Contact Length - Post	Contact Length - Post	Fastening Type	Contact Type	Insulation Color	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Connector Type	Contact Shape	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Post	Features	Material Flammability Rating	Number of Positions [custom]	Number of Positions [custom]
Samtec Inc. PESC-04-12-04-01-L-VT-LC	Liquid Crystal Polymer (LCP)	All	Through Hole	Copper Alloy	20	8	12	0.097 in	2.47 mm	Push-Pull	Female Socket	Black	0.497 in	12.62 mm	10 çin	0.25 çm	Solder	Receptacle	Square	Gold	105 ░C	-55 °C	Tin
Samtec Inc. PESC-04-12-04-01-T-RA-SD	Liquid Crystal Polymer (LCP)	All	Through Hole Right Angle	Copper Alloy	20	8	12	0.097 in	2.47 mm	Push-Pull	Female Socket	Black	0.472 in	12 mm			Solder	Receptacle	Square		105 ░C	-55 °C	Tin	Threaded Insert
Samtec Inc. PESC-04-40-04-01-L-VT	Liquid Crystal Polymer (LCP)	All	Through Hole	Copper Alloy				0.097 in	2.47 mm	Push-Pull	Female Socket	Black	0.497 in	12.62 mm	10 çin	0.25 çm	Solder	Receptacle	Square	Gold	125 °C	-55 °C	Tin		UL94 V-0	8	40
Samtec Inc. PESC-02-40-02-01-L-RA-SD	Liquid Crystal Polymer (LCP)	All	Through Hole Right Angle	Copper Alloy	44			0.097 in	2.47 mm	Push-Pull	Female Socket	Black	0.472 in	12 mm	10 çin	0.25 çm	Solder	Receptacle	Square	Gold	105 ░C	-55 °C	Tin	Threaded Insert
Samtec Inc. PESC-04-12-04-01-S-VT-LC	Liquid Crystal Polymer (LCP)	All	Through Hole	Copper Alloy	20	8	12	0.097 in	2.47 mm	Push-Pull	Female Socket	Black	0.497 in	12.62 mm	30 Áin	0.76 Ám	Solder	Receptacle	Square	Gold	105 ░C	-55 °C	Tin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 24.54
		10	$ 22.73
		25	$ 20.90
		50	$ 18.18
		100	$ 17.34

PESC-04-12-04-01-S-VT-LC

Deep-Dive with AI

PESC-04-12-04-01-S-VT-LC

Deep-Dive with AI

Technical Specifications

PESC-04 Series

Pricing

Description

PESC-04 Series

Documents

.100" PowerStrip™/40 A Signal/Power Combo Socket Strip

Datasheet

IPS6 Series Other Related Documents 03

PESC Datasheet

PESC-04 Series
