PESC-04 Series

Catalog

POWER TO THE BOARD .100" POWERSTRIP/40 A SIGNAL/POWER COMBO SOCKET STRIP

Part	Fastening Type	Contact Finish Thickness - Mating	Connector Type	Number of Positions (Power)	Number of Positions (Normal)	Number of Positions (Total)	Contact Finish - Post	Style	Termination	Contact Length - Post	Insulation Height	Contact Finish - Mating	Insulation Color	Number of Rows	Operating Temperature (Min)	Operating Temperature (Max)	Features	Contact Type	Number of Positions Loaded	Mounting Type	Contact Shape	Contact Material	Insulation Material
Samtec Inc. PESC-04-12-04-01-L-VT-LC	Push-Pull	10 µin	Receptacle	8	12	20	Tin	Board	Solder	0.097 in	0.497 in	Gold	Black	4	-55 °C	105 °C	Board Lock	Female Socket	All	Through Hole	Square	Copper Alloy	Liquid Crystal Polymer (LCP)

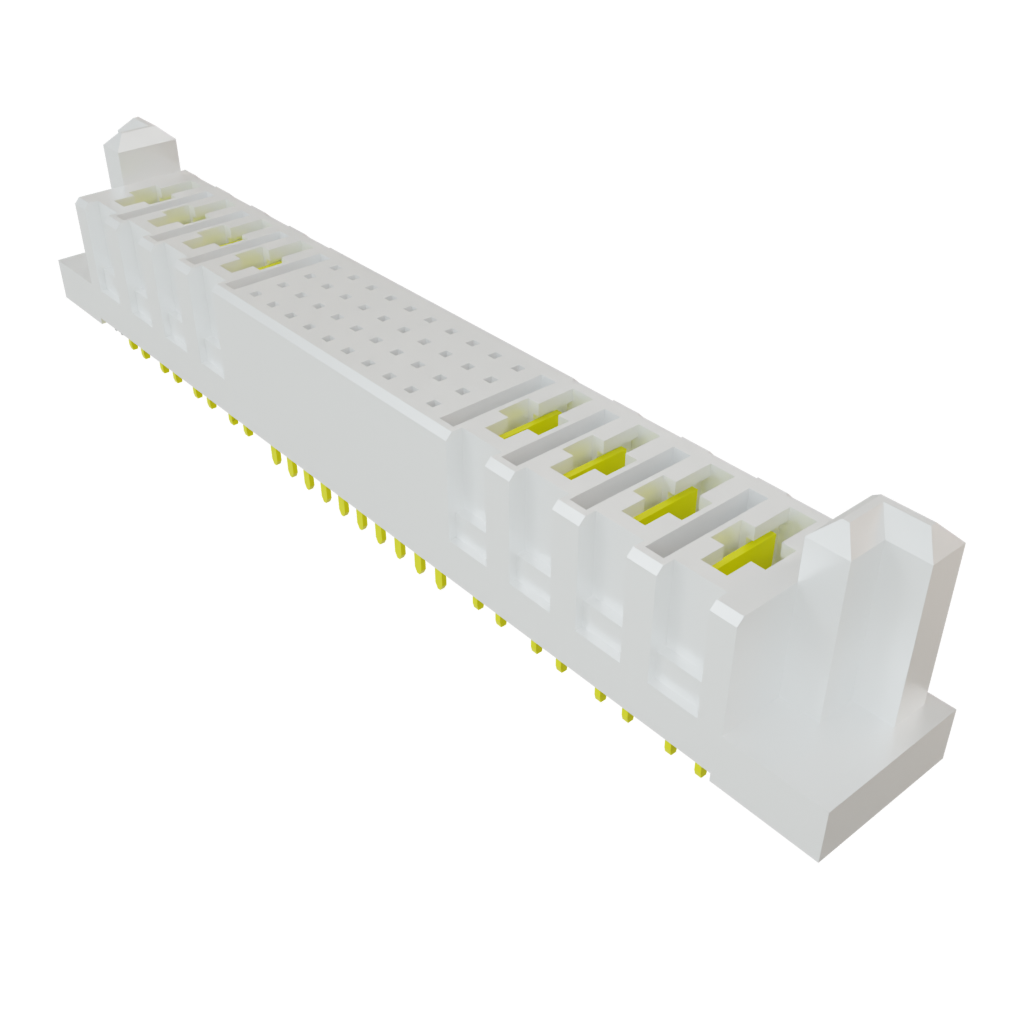

Samtec Inc. PESC-04-40-04-01-S-VT-LC	Push-Pull	30 µin	Receptacle	8	40	48	Tin	Board	Solder	0.097 in	0.497 in	Gold	Black	4	-55 °C	105 °C	Board Lock	Female Socket	All	Through Hole	Square	Copper Alloy	Liquid Crystal Polymer (LCP)
Samtec Inc. PESC-04-12-04-01-S-VT-LC	Push-Pull	30 µin	Receptacle	8	12	20	Tin	Board	Solder	0.097 in	0.497 in	Gold	Black	4	-55 °C	105 °C	Board Lock	Female Socket	All	Through Hole	Square	Copper Alloy	Liquid Crystal Polymer (LCP)
