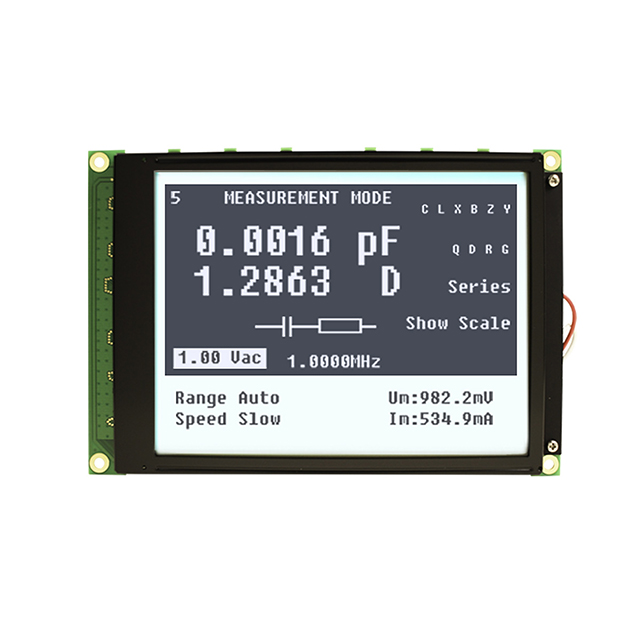

NHD-320240WG-BOTFH-VZ#

Active

Newhaven Display Intl

LCD MOD GRAPH 320X240 WH TRANSFL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet LCD Solvent Precautions +1

NHD-320240WG-BOTFH-VZ#

Active

Newhaven Display Intl

LCD MOD GRAPH 320X240 WH TRANSFL

Deep-Dive with AI

DocumentsDatasheet LCD Solvent Precautions +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NHD-320240WG-BOTFH-VZ#

Backlight	LED - White
Controller Type	RA-8835
Display Mode	Transflective
Display Type	FSTN - Film Super-Twisted Nematic
Dot Pitch [x]	0.36 mm
Dot Pitch [y]	0.36 mm
Dot Pixels	QVGA
Dot Pixels [x]	320 pixels
Dot Pixels [y]	240 pixels
Dot Size [x]	0.34 mm
Dot Size [y]	0.34 mm
Interface	Parallel, 8-Bit
Viewing Area [x]	122 mm
Viewing Area [y]	92 mm

NHD-320240 Series

Part	Backlight	Dot Size [x]	Dot Size [y]	Display Type	Graphics Color	Viewing Area [x]	Viewing Area [y]	Background Color	Dot Pixels	Dot Pixels [x]	Dot Pixels [y]	Interface	Dot Pitch [y]	Dot Pitch [x]	Display Mode	Dot Size [custom]	Dot Size [custom]	Viewing Area [z]	Dot Size [z]	Controller Type
Newhaven Display Intl NHD-320240WX-GTFH-V#I
Newhaven Display Intl NHD-320240WX-C0-TFH-V#P050
Newhaven Display Intl NHD-320240WG-ATMI-TZ#	LED - White	0.34 mm	0.34 mm	STN - Super-Twisted Nematic	White	122 mm	92 mm	Blue	QVGA	320 pixels	240 pixels	Parallel 4-Bit	0.36 mm	0.36 mm	Transmissive
Newhaven Display Intl NHD-320240WC-AFCI-NU	CCFL			CSTN - Color Super-Twisted Nematic	Blue Green Red		118.2 mm		QVGA	320 pixels	240 pixels	Parallel 8-Bit	0.36 mm	0.36 mm	Transmissive	0.32 mm	0.36 mm	89.4 mm
Newhaven Display Intl NHD-320240WX-COTFH-V#I041	LED - White		0.23 mm	FSTN - Film Super-Twisted Nematic	Gray	81.4 mm	61 mm	White	QVGA	320 pixels	240 pixels	Parallel 8-Bit	0.24 mm	0.24 mm	Transflective				0.23 mm
Newhaven Display Intl NHD-320240WG-BXFFH-VZ#	CCFL	0.34 mm	0.34 mm	FSTN - Film Super-Twisted Nematic	Gray	122 mm	92 mm	White	QVGA	320 pixels	240 pixels	Parallel 8-Bit	0.36 mm	0.36 mm	Transflective
Newhaven Display Intl NHD-320240WG-BXTMI-VZ#	LED - White	0.34 mm	0.34 mm	STN - Super-Twisted Nematic	White	122 mm	92 mm	Blue	QVGA	320 pixels	240 pixels	Parallel 8-Bit	0.36 mm	0.36 mm	Transmissive
Newhaven Display Intl NHD-320240WG-BXTGH-VZ#-3VR	LED - White	0.34 mm	0.34 mm	STN - Super-Twisted Nematic	Gray	122 mm	92 mm	White	QVGA	320 pixels	240 pixels	Parallel 8-Bit	0.36 mm	0.36 mm	Transflective					S1D-13700
Newhaven Display Intl NHD-320240WG-AFMI-VZ#
Newhaven Display Intl NHD-320240WG-BOTFH-VZ#	LED - White	0.34 mm	0.34 mm	FSTN - Film Super-Twisted Nematic		122 mm	92 mm		QVGA	320 pixels	240 pixels	Parallel 8-Bit	0.36 mm	0.36 mm	Transflective					RA-8835

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 94.54
		5	$ 88.87
		10	$ 83.19
		50	$ 82.84

Description

General part information

NHD-320240 Series

Graphic LCD Display Module Transflective FSTN - Film Super-Twisted Nematic Parallel, 8-Bit 320 x 240 (QVGA)
