NHD-320240WG-BXTMI-VZ#

Obsolete

Newhaven Display Intl

LCD MOD GRAPH 320X240 WH TRANSM

NHD-320240WG-BXTMI-VZ#

Obsolete

Newhaven Display Intl

LCD MOD GRAPH 320X240 WH TRANSM

Description Specifications Series Pricing CAD Documents

Description

General part information

NHD-320240 Series

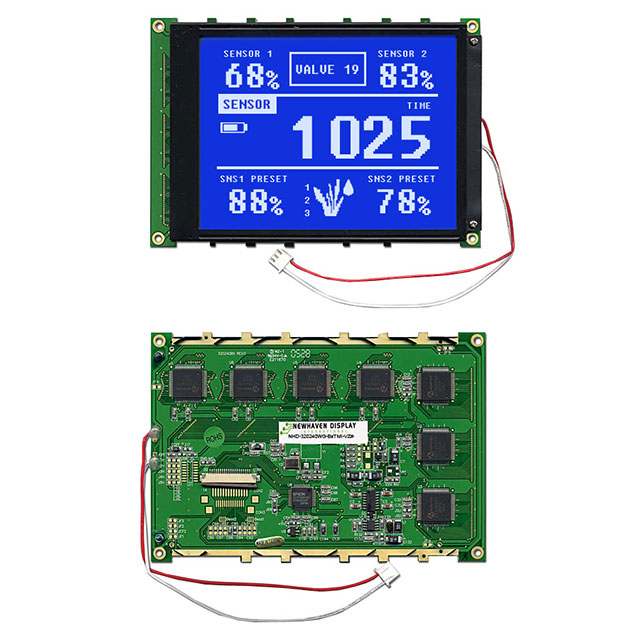

Graphic LCD Display Module Transmissive White STN - Super-Twisted Nematic Parallel, 8-Bit 320 x 240 (QVGA)

Technical Specifications

Parameters and characteristics for this part

Specification	NHD-320240WG-BXTMI-VZ#

Background Color	Blue
Backlight Color	White
Backlight Type	LED
Display Mode	Transmissive
Display Type	STN - Super-Twisted Nematic
Dot Pitch Height	0.36 mm
Dot Pitch Width	0.36 mm
Dot Pixels (Horizontal)	320 pixels
Dot Pixels (Resolution)	QVGA
Dot Pixels (Vertical)	240 pixels
Dot Size Height	0.34 mm
Dot Size Width	0.34 mm
Graphics Color	White
Interface	Parallel
Interface Data Width	8 Bit
Viewing Area Height	92 mm
Viewing Area Width	122 mm

NHD-320240 Series

Part	Dot Size Width	Dot Size Height	Dot Pitch Height	Dot Pitch Width	Dot Pixels (Vertical)	Dot Pixels (Resolution)	Dot Pixels (Horizontal)	Display Mode	Viewing Area Height	Viewing Area Width	Display Type	Background Color	Graphics Color	Interface	Interface Data Width	Backlight Type	Backlight Color	Backlight	Touchscreen	Controller Type
Newhaven Display Intl NHD-320240WX-GTFH-V#I
Newhaven Display Intl NHD-320240WX-C0-TFH-V#P050
Newhaven Display Intl NHD-320240WG-ATMI-TZ#	0.34 mm	0.34 mm	0.36 mm	0.36 mm	240 pixels	QVGA	320 pixels	Transmissive	92 mm	122 mm	STN - Super-Twisted Nematic	Blue	White	Parallel	4 Bit	LED	White
Newhaven Display Intl NHD-320240WG-BXFGH-VZ#	0.34 mm	0.34 mm	0.36 mm	0.36 mm	240 pixels	QVGA	320 pixels	Transflective	92 mm	122 mm	STN - Super-Twisted Nematic	White	Gray	Parallel	8 Bit			CCFL
Newhaven Display Intl NHD-320240WC-AFCI-NU	0.32 mm	0.36 mm	0.36 mm	0.36 mm	240 pixels	QVGA	320 pixels	Transmissive	89.4 mm	118.2 mm	CSTN - Color Super-Twisted Nematic		Blue Green Red	Parallel	8 Bit			CCFL
Newhaven Display Intl NHD-320240WX-COTFH-V#I041	0.23 mm	0.23 mm	0.24 mm	0.24 mm	240 pixels	QVGA	320 pixels	Transflective	61 mm	81.4 mm	FSTN - Film Super-Twisted Nematic	White	Gray	Parallel	8 Bit	LED	White
Newhaven Display Intl NHD-320240WG-BXFFH-VZ#	0.34 mm	0.34 mm	0.36 mm	0.36 mm	240 pixels	QVGA	320 pixels	Transflective	92 mm	122 mm	FSTN - Film Super-Twisted Nematic	White	Gray	Parallel	8 Bit			CCFL
Newhaven Display Intl NHD-320240WG-COTFH-VZ#	0.34 mm	0.34 mm	0.36 mm	0.36 mm	240 pixels	QVGA	320 pixels	Transflective	92.14 mm	120.14 mm	FSTN - Film Super-Twisted Nematic	White	Gray	Parallel	8 Bit	LED	White
Newhaven Display Intl NHD-320240WG-BOTML-VZ#030	0.34 mm	0.34 mm	0.36 mm	0.36 mm	240 pixels	QVGA	320 pixels	Transmissive	92 mm	122 mm	STN - Super-Twisted Nematic	Blue	White	Parallel	8 Bit	LED	White		Resistive	RA-8835
Newhaven Display Intl NHD-320240WG-BXTMI-VZ#	0.34 mm	0.34 mm	0.36 mm	0.36 mm	240 pixels	QVGA	320 pixels	Transmissive	92 mm	122 mm	STN - Super-Twisted Nematic	Blue	White	Parallel	8 Bit	LED	White

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

LCD Solvent Precautions

NHD-320240WG-BXTMI-VZ# | Datasheet
