DRV8262 Series

Part	Package Features	Package Name	Package Width	Package Length	Motor Type - Stepper	Current - Output (Min)	Current - Output (Max)	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Applications	Operating Temperature (Max)	Operating Temperature (Min)	Interface	Output Configuration	Function	Voltage - Load (Min)	Voltage - Load (Max)	Technology	Motor Type - AC, DC	Mounting Type	Supplied Contents	Utilized IC / Part	Type	Primary Attributes	Secondary Attributes	Contents	Embedded	Qualification	Half-Bridge Count	Grade
Texas Instruments DRV8262DDVR	Exposed Pad	44-HTSSOP 44-TSSOP	6.2 mm	0.244 in	Bipolar	16 A	16 A	3.05 V	5.5 V	General Purpose	125 °C	-40 °C	PWM SPI	High Side	Control and Power Stage Driver - Fully Integrated	4.5 V	65 V	NMOS	Brushed DC	Surface Mount

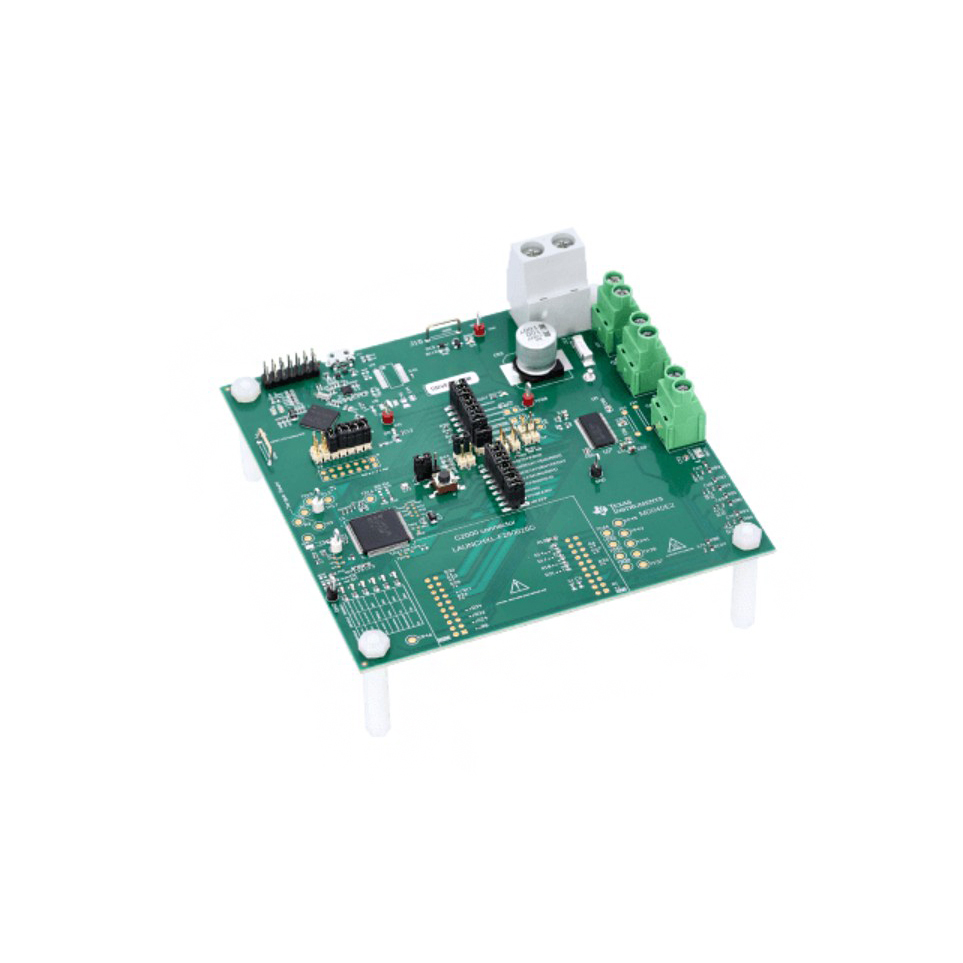

Texas Instruments DRV8262EVM															Driver Motor Controller						Board(s)	DRV8262	Power Management	Motors (Stepper)	On-Board LEDs Test Points	Board	MCU Yes
Texas Instruments DRV8262DDWR		44-HTSSOP 44-PowerTSSOP	6.2 mm	0.244 in	Bipolar	8 A	8 A	4.5 V	65 V	General Purpose	125 °C	-40 °C	On/Off PWM	Half Bridge	Control and Power Stage Driver - Fully Integrated	4.5 V	65 V	NMOS	Brushed DC	Surface Mount								AEC-Q100	4	Automotive

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources

No documents available
