1-1445098-2
ObsoleteTE Connectivity Raychem Cable Protection

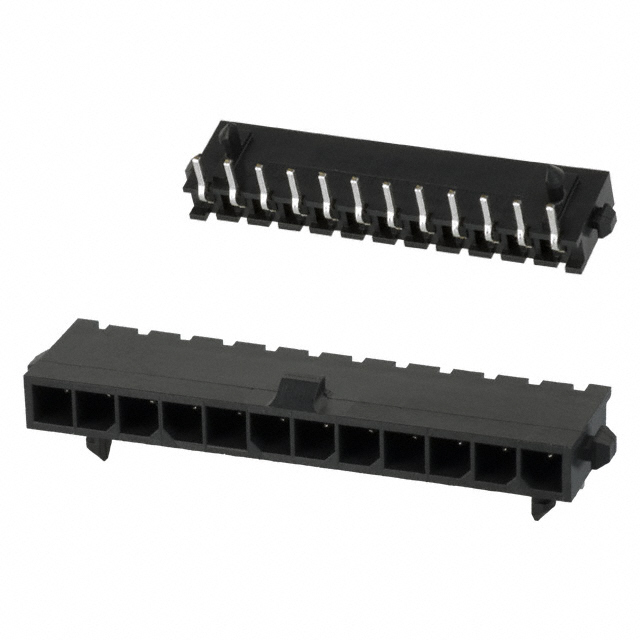

CONN HEADER R/A 12POS 3MM
Deep-Dive with AI
Search across all available documentation for this part.
1-1445098-2
ObsoleteTE Connectivity Raychem Cable Protection
CONN HEADER R/A 12POS 3MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1445098-2 |
|---|---|
| Applications | General Purpose |
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin-Lead |
| Contact Finish Thickness - Mating | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám |
| Contact Finish Thickness - Post | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin |
| Contact Length - Post | 3.5 mm |
| Contact Length - Post | 0.138 in |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | Varies by Wire Gauge |
| Fastening Type | Locking Ramp |
| Insulation Color | Black |
| Insulation Height | 0.152 in |
| Insulation Height | 3.85 mm |
| Insulation Material | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 12 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.118 in |
| Pitch - Mating | 3 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 250 VDC |
1445098 Series
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Insulation Height | Insulation Height | Contact Finish - Mating | Termination | Contact Length - Post | Contact Length - Post | Mounting Type | Contact Finish - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Applications | Insulation Material | Voltage Rating | Number of Positions Loaded | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Shrouding | Material Flammability Rating | Contact Material | Fastening Type | Contact Type | Contact Shape | Insulation Color | Connector Type | Current Rating (Amps) | Style | Pitch - Mating | Pitch - Mating | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | -40 °C | 105 ░C | 1 | 0.152 in | 3.85 mm | Gold | Solder | 3.5 mm | 0.138 in | Through Hole Right Angle | Tin | 30 Áin | 0.76 Ám | General Purpose | Nylon Polyamide (PA) | 250 VDC | All | 2.54 µm | 100 µin | Shrouded - 4 Wall | UL94 V-0 | Brass | Locking Ramp | Male Pin | Square | Black | Header | Varies by Wire Gauge | Board to Cable/Wire | 0.118 in | 3 mm | |
TE Connectivity Raychem Cable Protection | -40 °C | 105 ░C | 1 | 0.152 in | 3.85 mm | Gold | Solder | 3.5 mm | 0.138 in | Through Hole Right Angle | Tin | 30 Áin | 0.76 Ám | General Purpose | Nylon Polyamide (PA) | 250 VDC | All | 2.54 µm | 100 µin | Shrouded - 4 Wall | UL94 V-0 | Brass | Locking Ramp | Male Pin | Square | Black | Header | Varies by Wire Gauge | Board to Cable/Wire | 0.118 in | 3 mm | 7 |
TE Connectivity Raychem Cable Protection | -40 °C | 105 ░C | 1 | 0.152 in | 3.85 mm | Gold | Solder | 3.5 mm | 0.138 in | Through Hole Right Angle | Tin-Lead | 30 Áin | 0.76 Ám | General Purpose | Nylon Polyamide (PA) | 250 VDC | All | 2.54 µm | 100 µin | Shrouded - 4 Wall | UL94 V-0 | Brass | Locking Ramp | Male Pin | Square | Black | Header | Varies by Wire Gauge | Board to Cable/Wire | 0.118 in | 3 mm | 7 |
TE Connectivity Raychem Cable Protection | -40 °C | 105 ░C | 1 | 0.152 in | 3.85 mm | Gold | Solder | 3.5 mm | 0.138 in | Through Hole Right Angle | Tin | 30 Áin | 0.76 Ám | General Purpose | Nylon Polyamide (PA) | 250 VDC | All | 2.54 µm | 100 µin | Shrouded - 4 Wall | UL94 V-0 | Brass | Locking Ramp | Male Pin | Square | Black | Header | Varies by Wire Gauge | Board to Cable/Wire | 0.118 in | 3 mm | |
TE Connectivity Raychem Cable Protection | -40 °C | 105 ░C | 1 | 0.152 in | 3.85 mm | Gold | Solder | 3.5 mm | 0.138 in | Through Hole Right Angle | Tin-Lead | 30 Áin | 0.76 Ám | General Purpose | Nylon Polyamide (PA) | 250 VDC | All | 2.54 µm | 100 µin | Shrouded - 4 Wall | UL94 V-0 | Brass | Locking Ramp | Male Pin | Square | Black | Header | Varies by Wire Gauge | Board to Cable/Wire | 0.118 in | 3 mm | 12 |
TE Connectivity Raychem Cable Protection | -40 °C | 105 ░C | 1 | 0.152 in | 3.85 mm | Gold | Solder | 3.5 mm | 0.138 in | Through Hole Right Angle | Tin | 30 Áin | 0.76 Ám | General Purpose | Nylon Polyamide (PA) | 250 VDC | All | 2.54 µm | 100 µin | Shrouded - 4 Wall | UL94 V-0 | Brass | Locking Ramp | Male Pin | Square | Black | Header | Varies by Wire Gauge | Board to Cable/Wire | 0.118 in | 3 mm | 4 |
TE Connectivity Raychem Cable Protection | -40 °C | 105 ░C | 1 | 0.152 in | 3.85 mm | Gold | Solder | 3.5 mm | 0.138 in | Through Hole Right Angle | Tin-Lead | 30 Áin | 0.76 Ám | General Purpose | Nylon Polyamide (PA) | 250 VDC | All | 2.54 µm | 100 µin | Shrouded - 4 Wall | UL94 V-0 | Brass | Locking Ramp | Male Pin | Square | Black | Header | Varies by Wire Gauge | Board to Cable/Wire | 0.118 in | 3 mm | 9 |
TE Connectivity Raychem Cable Protection | -40 °C | 105 ░C | 1 | 0.152 in | 3.85 mm | Gold | Solder | 3.5 mm | 0.138 in | Through Hole Right Angle | Tin | 30 Áin | 0.76 Ám | General Purpose | Nylon Polyamide (PA) | 250 VDC | All | 2.54 µm | 100 µin | Shrouded - 4 Wall | UL94 V-0 | Brass | Locking Ramp | Male Pin | Square | Black | Header | Varies by Wire Gauge | Board to Cable/Wire | 0.118 in | 3 mm | 8 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
1445098 Series
Connector Header Through Hole, Right Angle 12 position 0.118" (3.00mm)
