2-1445098-8

Active

TE Connectivity Raychem Cable Protection

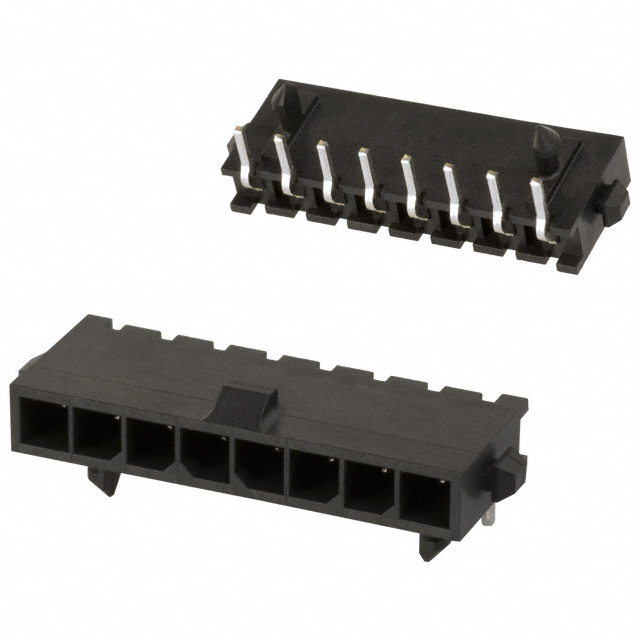

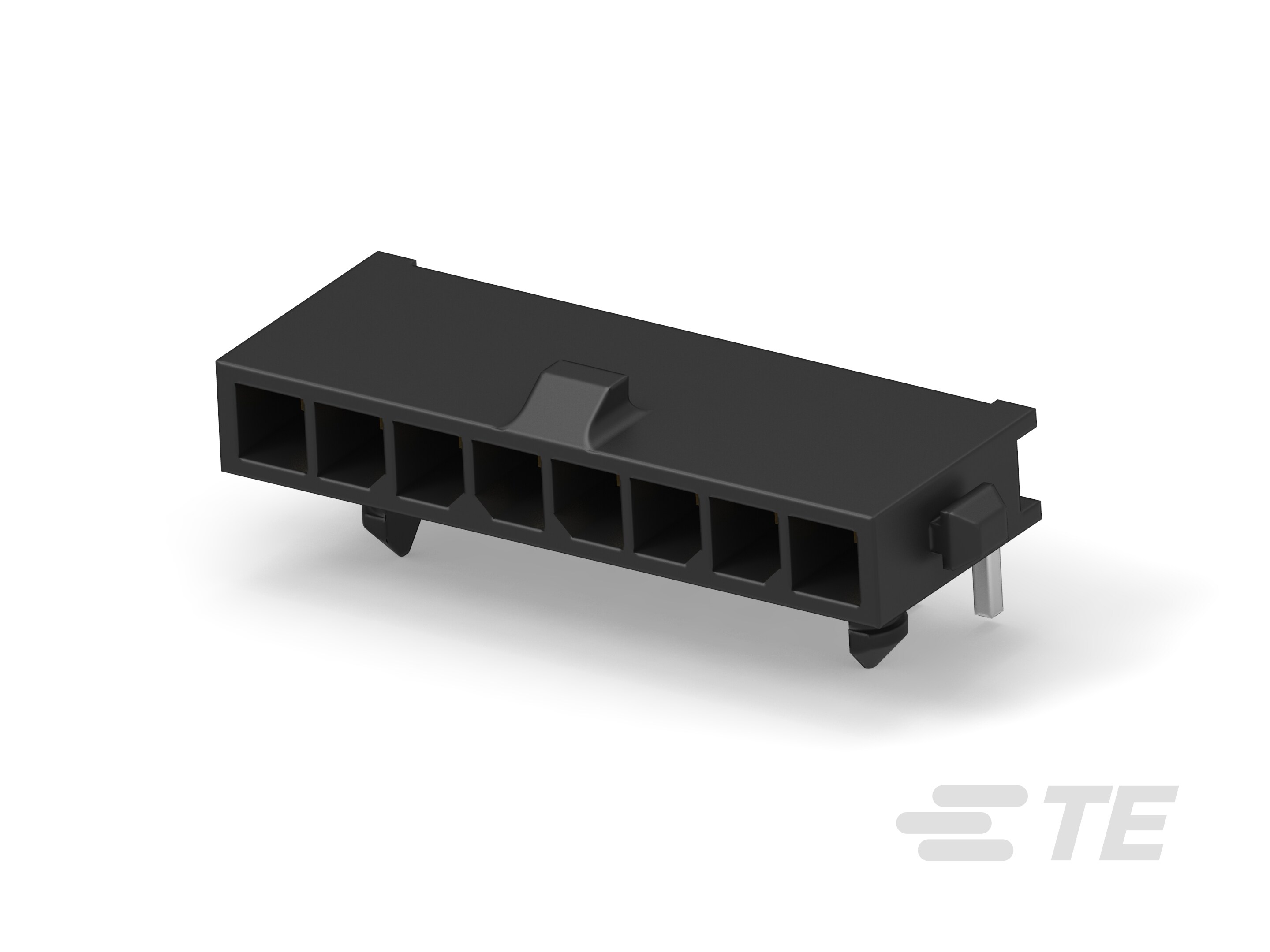

CONN HEADER R/A 8POS 3MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2-1445098-8

Active

TE Connectivity Raychem Cable Protection

CONN HEADER R/A 8POS 3MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2-1445098-8

Applications	General Purpose
Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Post	3.5 mm
Contact Length - Post	0.138 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Locking Ramp
Insulation Color	Black
Insulation Height	0.152 in
Insulation Height	3.85 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.118 in
Pitch - Mating	3 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

1445098 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Insulation Height	Insulation Height	Contact Finish - Mating	Termination	Contact Length - Post	Contact Length - Post	Mounting Type	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Applications	Insulation Material	Voltage Rating	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Shrouding	Material Flammability Rating	Contact Material	Fastening Type	Contact Type	Contact Shape	Insulation Color	Connector Type	Current Rating (Amps)	Style	Pitch - Mating	Pitch - Mating	Number of Positions
TE Connectivity Raychem Cable Protection 2-1445098-5	-40 °C	105 ░C	1	0.152 in	3.85 mm	Gold	Solder	3.5 mm	0.138 in	Through Hole Right Angle	Tin	30 Áin	0.76 Ám	General Purpose	Nylon Polyamide (PA)	250 VDC	All	2.54 µm	100 µin	Shrouded - 4 Wall	UL94 V-0	Brass	Locking Ramp	Male Pin	Square	Black	Header	Varies by Wire Gauge	Board to Cable/Wire	0.118 in	3 mm
TE Connectivity Raychem Cable Protection 2-1445098-7	-40 °C	105 ░C	1	0.152 in	3.85 mm	Gold	Solder	3.5 mm	0.138 in	Through Hole Right Angle	Tin	30 Áin	0.76 Ám	General Purpose	Nylon Polyamide (PA)	250 VDC	All	2.54 µm	100 µin	Shrouded - 4 Wall	UL94 V-0	Brass	Locking Ramp	Male Pin	Square	Black	Header	Varies by Wire Gauge	Board to Cable/Wire	0.118 in	3 mm	7
TE Connectivity Raychem Cable Protection 1445098-7	-40 °C	105 ░C	1	0.152 in	3.85 mm	Gold	Solder	3.5 mm	0.138 in	Through Hole Right Angle	Tin-Lead	30 Áin	0.76 Ám	General Purpose	Nylon Polyamide (PA)	250 VDC	All	2.54 µm	100 µin	Shrouded - 4 Wall	UL94 V-0	Brass	Locking Ramp	Male Pin	Square	Black	Header	Varies by Wire Gauge	Board to Cable/Wire	0.118 in	3 mm	7
TE Connectivity Raychem Cable Protection 2-1445098-3	-40 °C	105 ░C	1	0.152 in	3.85 mm	Gold	Solder	3.5 mm	0.138 in	Through Hole Right Angle	Tin	30 Áin	0.76 Ám	General Purpose	Nylon Polyamide (PA)	250 VDC	All	2.54 µm	100 µin	Shrouded - 4 Wall	UL94 V-0	Brass	Locking Ramp	Male Pin	Square	Black	Header	Varies by Wire Gauge	Board to Cable/Wire	0.118 in	3 mm
TE Connectivity Raychem Cable Protection 1-1445098-2	-40 °C	105 ░C	1	0.152 in	3.85 mm	Gold	Solder	3.5 mm	0.138 in	Through Hole Right Angle	Tin-Lead	30 Áin	0.76 Ám	General Purpose	Nylon Polyamide (PA)	250 VDC	All	2.54 µm	100 µin	Shrouded - 4 Wall	UL94 V-0	Brass	Locking Ramp	Male Pin	Square	Black	Header	Varies by Wire Gauge	Board to Cable/Wire	0.118 in	3 mm	12
TE Connectivity Raychem Cable Protection 2-1445098-4	-40 °C	105 ░C	1	0.152 in	3.85 mm	Gold	Solder	3.5 mm	0.138 in	Through Hole Right Angle	Tin	30 Áin	0.76 Ám	General Purpose	Nylon Polyamide (PA)	250 VDC	All	2.54 µm	100 µin	Shrouded - 4 Wall	UL94 V-0	Brass	Locking Ramp	Male Pin	Square	Black	Header	Varies by Wire Gauge	Board to Cable/Wire	0.118 in	3 mm	4
TE Connectivity Raychem Cable Protection 1445098-9	-40 °C	105 ░C	1	0.152 in	3.85 mm	Gold	Solder	3.5 mm	0.138 in	Through Hole Right Angle	Tin-Lead	30 Áin	0.76 Ám	General Purpose	Nylon Polyamide (PA)	250 VDC	All	2.54 µm	100 µin	Shrouded - 4 Wall	UL94 V-0	Brass	Locking Ramp	Male Pin	Square	Black	Header	Varies by Wire Gauge	Board to Cable/Wire	0.118 in	3 mm	9
TE Connectivity Raychem Cable Protection 2-1445098-8	-40 °C	105 ░C	1	0.152 in	3.85 mm	Gold	Solder	3.5 mm	0.138 in	Through Hole Right Angle	Tin	30 Áin	0.76 Ám	General Purpose	Nylon Polyamide (PA)	250 VDC	All	2.54 µm	100 µin	Shrouded - 4 Wall	UL94 V-0	Brass	Locking Ramp	Male Pin	Square	Black	Header	Varies by Wire Gauge	Board to Cable/Wire	0.118 in	3 mm	8

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 2.34
		10	$ 2.09
		112	$ 1.89
		448	$ 1.87
		1008	$ 1.53
		4928	$ 1.41

Description

General part information

1445098 Series

Connector Header Through Hole, Right Angle 8 position 0.118" (3.00mm)
