LM5175QPWPTQ1

Active

Texas Instruments

42-V WIDE VIN 4-SWITCH SYNCHRONOUS BUCK-BOOST CONTROLLER, AEC-Q100 QUALIFIED

Find alt

Alpha

LM5175QPWPTQ1

Active

Texas Instruments

42-V WIDE VIN 4-SWITCH SYNCHRONOUS BUCK-BOOST CONTROLLER, AEC-Q100 QUALIFIED

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

LM5175 Series

The LM5175-Q1 is a synchronous four-switch buck-boost DC/DC controller capable of regulating the output voltage at, above, or below the input voltage. The LM5175-Q1 operates over a wide input voltage range of 3.5 V to 42 V (60 V maximum) to support a variety of applications.

The LM5175-Q1 employs current-mode control both in buck and boost modes of operation for superior load and line regulation. The switching frequency is programmed by an external resistor and can be synchronized to an external clock signal.

The device also features a programmable soft-start function and offers protection features including cycle-by-cycle current limiting, input undervoltage lockout (UVLO), output overvoltage protection (OVP), and thermal shutdown. In addition, the LM5175-Q1 features selectable Continuous Conduction Mode (CCM) or Discontinuous Conduction Mode (DCM) operation, optional average input or output current limiting, optional spread spectrum to reduce peak EMI, and optional hiccup mode protection in sustained overload conditions.

Technical Specifications

Parameters and characteristics for this part

Specification	LM5175QPWPTQ1

Clock Sync	Yes
Control Features	Enable, Power Good, Frequency Control, Soft Start
Frequency - Switching (Max)	600 kHz
Frequency - Switching (Min)	100 kHz
Function	Step-Up, Step-Down
Grade	Automotive
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature (Max)	150 °C
Operating Temperature (Min)	-40 °C
Output Configuration	Positive
Output Phases	1
Output Type	Transistor Driver
Package Length	0.173 in
Package Name	28-PowerTSSOP, 28-HTSSOP
Package Width	4.4 mm
Qualification	AEC-Q100
Synchronous Rectifier	Yes
Topology	Buck-Boost
Voltage - Supply (Vcc/Vdd) Maximum	42 V
Voltage - Supply (Vcc/Vdd) Minimum	3.5 V

LM5175 Series

Part	Grade	Frequency - Switching (Min)	Frequency - Switching (Max)	Qualification	Mounting Type	Voltage - Supply (Vcc/Vdd) Minimum	Voltage - Supply (Vcc/Vdd) Maximum	Output Configuration	Number of Outputs	Package Name	Operating Temperature (Min)	Operating Temperature (Max)	Topology	Output Phases	Synchronous Rectifier	Output Type	Function	Clock Sync	Control Features	Package Width	Package Length	Supplied Contents	Board Type	Total Output Count	Non-Isolated Output Count	Power - Output	Utilized IC / Part	Regulator Topology	Current - Output	Voltage - Output	Frequency - Switching	Contents	Main Purpose	Voltage - Input (Minimum)	Voltage - Input (Maximum)	Package / Case
Texas Instruments LM5175QPWPRQ1	Automotive	100 kHz	600 kHz	AEC-Q100	Surface Mount	3.5 V	42 V	Positive	1	28-HTSSOP 28-PowerTSSOP	-40 °C	150 °C	Buck-Boost	1	Yes	Transistor Driver	Step-Down Step-Up	Yes	Enable Frequency Control Power Good Soft Start	4.4 mm	0.173 in
Texas Instruments LM5175EVM-HP																Non-Isolated						Board(s)	Fully Populated	1	1 count	120 W	LM5175	Buck-Boost	10 A	12 V	260 kHz	Board	DC/DC Step Up or Down	6 V	36 V
Texas Instruments LM5175RHFT		100 kHz	600 kHz		Surface Mount	3.5 V	42 V	Positive	1	28-VQFN	-40 °C	125 °C	Buck-Boost	1	Yes	Transistor Driver	Step-Down Step-Up	Yes	Enable Frequency Control Power Good Soft Start	4 mm	5 mm															28-VFQFN Exposed Pad

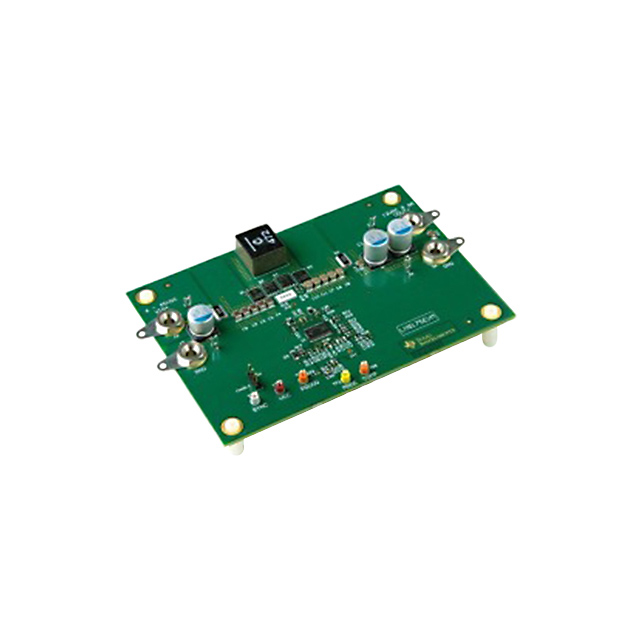

Texas Instruments LM5175EVM																Non-Isolated						Board(s)	Fully Populated	1	1 count		LM5175	Buck-Boost	6 A	12 V	300 kHz	Board	DC/DC Step Up or Down	6 V	36 V
Texas Instruments LM5175PWPR		100 kHz	600 kHz		Surface Mount	3.5 V	42 V	Positive	1	28-HTSSOP 28-PowerTSSOP	-40 °C	125 °C	Buck-Boost	1	Yes	Transistor Driver	Step-Down Step-Up	Yes	Enable Frequency Control Power Good Soft Start	4.4 mm	0.173 in
Texas Instruments LM5175QPWPTQ1	Automotive	100 kHz	600 kHz	AEC-Q100	Surface Mount	3.5 V	42 V	Positive	1	28-HTSSOP 28-PowerTSSOP	-40 °C	150 °C	Buck-Boost	1	Yes	Transistor Driver	Step-Down Step-Up	Yes	Enable Frequency Control Power Good Soft Start	4.4 mm	0.173 in
Texas Instruments LM5175RHFEVM-HD																Non-Isolated						Board(s)	Fully Populated	1	1 count		LM5175	Buck-Boost	6 A	12 V	400 kHz	Board	DC/DC Step Up or Down	5.5 V	42 V
Texas Instruments LM5175PWPT		100 kHz	600 kHz		Surface Mount	3.5 V	42 V	Positive	1	28-HTSSOP 28-PowerTSSOP	-40 °C	125 °C	Buck-Boost	1	Yes	Transistor Driver	Step-Down Step-Up	Yes	Enable Frequency Control Power Good Soft Start	4.4 mm	0.173 in
Texas Instruments LM5175RHFR		100 kHz	600 kHz		Surface Mount	3.5 V	42 V	Positive	1	28-VQFN	-40 °C	125 °C	Buck-Boost	1	Yes	Transistor Driver	Step-Down Step-Up	Yes	Enable Frequency Control Power Good Soft Start	4 mm	5 mm															28-VFQFN Exposed Pad
