2-1393560-7
ActiveTE Connectivity AMP Connectors
V42254A 152V 1=SUB D BOLZENSA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2-1393560-7
ActiveTE Connectivity AMP Connectors
V42254A 152V 1=SUB D BOLZENSA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2-1393560-7 | 1393560 Series |
|---|---|---|
| Accessory Type | Jackscrew Socket | Strain Relief, Jackscrew Socket, Jackscrew |
| Between Board Height | - | 0.189 in |
| Between Board Height | - | 4.8 mm |
| Features | Hardware Included | Hardware Included |
| For Use With/Related Products | D-Sub Connectors | D-Sub IDC Connectors, D-Sub Connectors |
| Gender | - | Male, Female |
| Length - Below Head | - | 7.91 mm |
| Length - Below Head | - | 0.311 in |
| Length - Below Head [x] | 8.1 mm | 4.55 - 8.1 mm |
| Length - Below Head [x] | 0.319 in | 0.179 - 0.319 in |
| Length - Overall | - | 0.5 in |
| Length - Overall | - | 0.5 in |
| Length - Overall | - | 12.7 mm |
| Length - Threaded Portion Below Head [x] | 7.3 mm | 3.75 - 7.3 mm |
| Length - Threaded Portion Below Head [x] | 0.287 in | 0.148 - 0.287 in |
| Number of Positions | - | 15 - 37 |
| Screw, Thread Size | - | #4-40 |
| Thread Size | 4-40 Screw, 4-40 Socket | 4-40 Screw, 4-40 Socket, M3 Socket, M3 Screw, 4-40 |
| Threaded/Unthreaded | - | Threaded |
| Type | - | Hex Standoff |
1393560 Series
HEX STANDOFF #4-40 4.8MM
| Part | Screw, Thread Size | Threaded/Unthreaded | Gender | Type | Length - Overall | Length - Overall | Length - Overall | Between Board Height | Between Board Height | For Use With/Related Products | Number of Positions | Accessory Type | Length - Threaded Portion Below Head [x] | Length - Threaded Portion Below Head [x] | Length - Below Head [x] | Length - Below Head [x] | Thread Size | Features | Length - Below Head | Length - Below Head |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1393560-5 | #4-40 | Threaded | Female, Male | Hex Standoff | 0.5 in | 0.5 in | 12.7 mm | 0.189 in | 4.8 mm | |||||||||||
TE Connectivity AMP Connectors 4-1393560-7 | D-Sub IDC Connectors | 37 | Strain Relief | |||||||||||||||||
TE Connectivity AMP Connectors 2-1393560-7 | D-Sub Connectors | Jackscrew Socket | 7.3 mm | 0.287 in | 8.1 mm | 0.319 in | 4-40 Screw, 4-40 Socket | Hardware Included | ||||||||||||
TE Connectivity AMP Connectors 1-1393560-7 | D-Sub Connectors | Jackscrew Socket | 4-40 Screw, M3 Socket | Hardware Included | 7.91 mm | 0.311 in | ||||||||||||||
TE Connectivity AMP Connectors 3-1393560-2 | D-Sub Connectors | Jackscrew Socket | 4-40 Socket, M3 Screw | Hardware Included | ||||||||||||||||
TE Connectivity AMP Connectors 2-1393560-9 | D-Sub Connectors | Jackscrew | 4-40 | Hardware Included | 7.91 mm | 0.311 in | ||||||||||||||
TE Connectivity AMP Connectors 1-1393560-8 | D-Sub Connectors | Jackscrew Socket | 4-40 Screw, 4-40 Socket | Hardware Included | 7.91 mm | 0.311 in | ||||||||||||||
TE Connectivity AMP Connectors 4-1393560-5 | D-Sub IDC Connectors | 15 | Strain Relief | |||||||||||||||||
TE Connectivity AMP Connectors 3-1393560-1 | D-Sub Connectors | Jackscrew Socket | 3.75 mm | 0.148 " | 4.55 mm | 0.179 in | M3 Screw, M3 Socket | Hardware Included | ||||||||||||
TE Connectivity AMP Connectors 2-1393560-5 | D-Sub Connectors | Jackscrew Socket | 7.3 mm | 0.287 in | 8.1 mm | 0.319 in | 4-40 Screw, 4-40 Socket | Hardware Included |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
1393560 Series

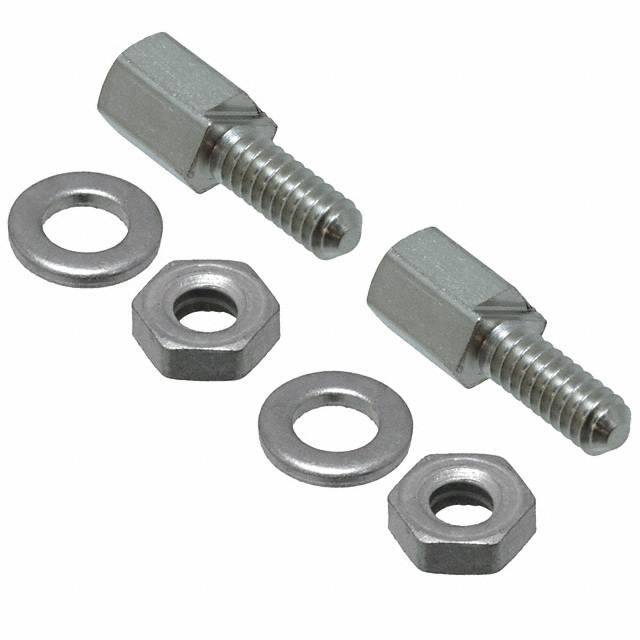

Jackscrew Socket For D-Sub Connectors
