1-1393560-8

Active

TE Connectivity AMP Connectors

V42254A 122V 1=SUB D BOLZENSA

Deep-Dive with AI

Search across all available documentation for this part.

1-1393560-8

Active

TE Connectivity AMP Connectors

V42254A 122V 1=SUB D BOLZENSA

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 8.70
		10	$ 7.39
		25	$ 6.93
		50	$ 6.60
		100	$ 6.28
		250	$ 6.01

Description

General part information

1393560 Series

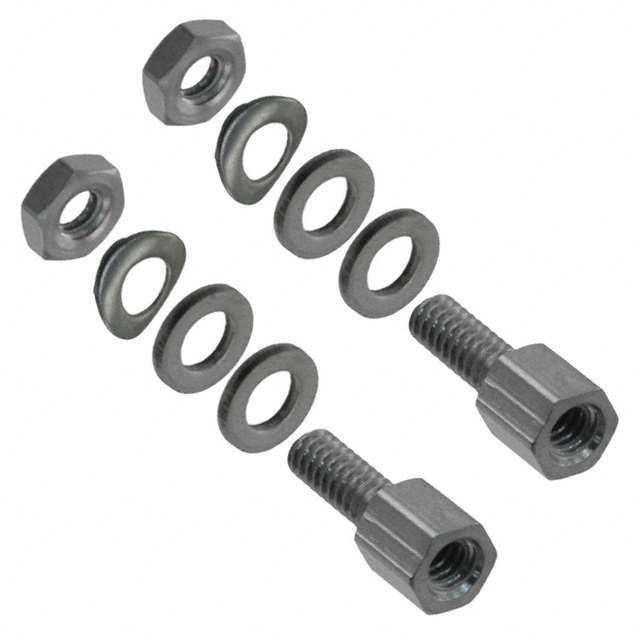

Jackscrew Socket For D-Sub Connectors

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1-1393560-8	1393560 Series

Accessory Type	Jackscrew Socket	Strain Relief, Jackscrew Socket, Jackscrew
Between Board Height	-	0.189 in
Between Board Height	-	4.8 mm
Features	Hardware Included	Hardware Included
For Use With/Related Products	D-Sub Connectors	D-Sub IDC Connectors, D-Sub Connectors
Gender	-	Male, Female
Length - Below Head	7.91 mm	7.91 mm
Length - Below Head	0.311 in	0.311 in
Length - Below Head	-	4.55 - 8.1 mm
Length - Below Head	-	0.179 - 0.319 in
Length - Overall	-	0.5 in
Length - Overall	-	0.5 in
Length - Overall	-	12.7 mm
Length - Threaded Portion Below Head	-	3.75 - 7.3 mm
Length - Threaded Portion Below Head	-	0.148 - 0.287 in
Number of Positions	-	15 - 37
Screw, Thread Size	-	#4-40
Thread Size	4-40 Screw, 4-40 Socket	4-40 Screw, 4-40 Socket, M3 Socket, M3 Screw, 4-40
Threaded/Unthreaded	-	Threaded
Type	-	Hex Standoff

1393560 Series

HEX STANDOFF #4-40 4.8MM

Part	Screw, Thread Size	Threaded/Unthreaded	Gender	Type	Length - Overall	Length - Overall	Length - Overall	Between Board Height	Between Board Height	For Use With/Related Products	Number of Positions	Accessory Type	Length - Threaded Portion Below Head [x]	Length - Threaded Portion Below Head [x]	Length - Below Head [x]	Length - Below Head [x]	Thread Size	Features	Length - Below Head	Length - Below Head
TE Connectivity AMP Connectors 1393560-5	#4-40	Threaded	Female, Male	Hex Standoff	0.5 in	0.5 in	12.7 mm	0.189 in	4.8 mm
TE Connectivity AMP Connectors 4-1393560-7										D-Sub IDC Connectors	37	Strain Relief
TE Connectivity AMP Connectors 2-1393560-7										D-Sub Connectors		Jackscrew Socket	7.3 mm	0.287 in	8.1 mm	0.319 in	4-40 Screw, 4-40 Socket	Hardware Included
TE Connectivity AMP Connectors 1-1393560-7										D-Sub Connectors		Jackscrew Socket					4-40 Screw, M3 Socket	Hardware Included	7.91 mm	0.311 in
TE Connectivity AMP Connectors 3-1393560-2										D-Sub Connectors		Jackscrew Socket					4-40 Socket, M3 Screw	Hardware Included
TE Connectivity AMP Connectors 2-1393560-9										D-Sub Connectors		Jackscrew					4-40	Hardware Included	7.91 mm	0.311 in
TE Connectivity AMP Connectors 1-1393560-8										D-Sub Connectors		Jackscrew Socket					4-40 Screw, 4-40 Socket	Hardware Included	7.91 mm	0.311 in
TE Connectivity AMP Connectors 4-1393560-5										D-Sub IDC Connectors	15	Strain Relief
TE Connectivity AMP Connectors 3-1393560-1										D-Sub Connectors		Jackscrew Socket	3.75 mm	0.148 "	4.55 mm	0.179 in	M3 Screw, M3 Socket	Hardware Included
TE Connectivity AMP Connectors 2-1393560-5										D-Sub Connectors		Jackscrew Socket	7.3 mm	0.287 in	8.1 mm	0.319 in	4-40 Screw, 4-40 Socket	Hardware Included
