1393560-5

Active

TE Connectivity AMP Connectors

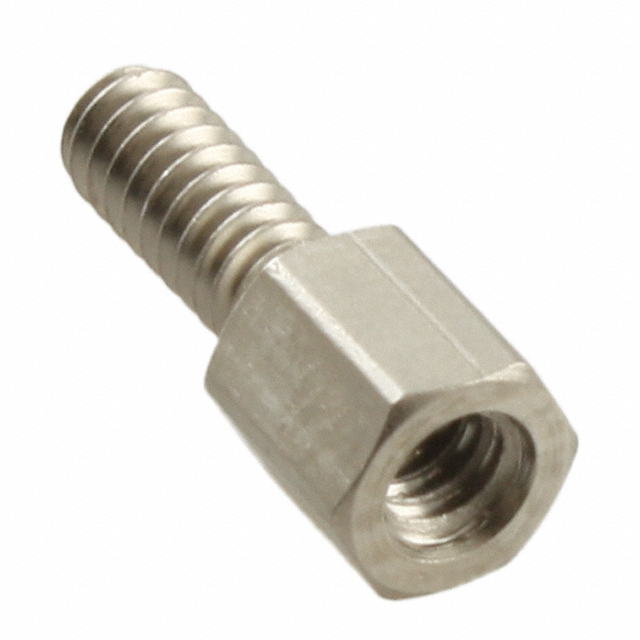

HEX STANDOFF #4-40 4.8MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1393560-5

Active

TE Connectivity AMP Connectors

HEX STANDOFF #4-40 4.8MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.38
		5	$ 1.16
		10	$ 1.08
		25	$ 0.99
		50	$ 0.94
		100	$ 0.88
		250	$ 0.82
		500	$ 0.78
		1000	$ 0.75

Description

General part information

1393560 Series

Hex Standoff Threaded #4-40 0.189" (4.80mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1393560-5	1393560 Series

Accessory Type	-	Strain Relief, Jackscrew Socket, Jackscrew
Between Board Height	0.189 in	0.189 in
Between Board Height	4.8 mm	4.8 mm
Features	-	Hardware Included
For Use With/Related Products	-	D-Sub IDC Connectors, D-Sub Connectors
Gender	Male, Female	Male, Female
Length - Below Head	-	4.55 - 8.1 mm
Length - Below Head	-	0.179 - 0.319 in
Length - Below Head	-	7.91 mm
Length - Below Head	-	0.311 in
Length - Overall	0.5 in	0.5 in
Length - Overall	0.5 in	0.5 in
Length - Overall	12.7 mm	12.7 mm
Length - Threaded Portion Below Head	-	3.75 - 7.3 mm
Length - Threaded Portion Below Head	-	0.148 - 0.287 in
Number of Positions	-	15 - 37
Screw, Thread Size	#4-40	#4-40
Thread Size	-	4-40 Screw, 4-40 Socket, M3 Socket, M3 Screw, 4-40
Threaded/Unthreaded	Threaded	Threaded
Type	Hex Standoff	Hex Standoff

1393560 Series

HEX STANDOFF #4-40 4.8MM

Part	Screw, Thread Size	Threaded/Unthreaded	Gender	Type	Length - Overall	Length - Overall	Length - Overall	Between Board Height	Between Board Height	For Use With/Related Products	Number of Positions	Accessory Type	Length - Threaded Portion Below Head [x]	Length - Threaded Portion Below Head [x]	Length - Below Head [x]	Length - Below Head [x]	Thread Size	Features	Length - Below Head	Length - Below Head
TE Connectivity AMP Connectors 1393560-5	#4-40	Threaded	Female, Male	Hex Standoff	0.5 in	0.5 in	12.7 mm	0.189 in	4.8 mm
TE Connectivity AMP Connectors 4-1393560-7										D-Sub IDC Connectors	37	Strain Relief
TE Connectivity AMP Connectors 2-1393560-7										D-Sub Connectors		Jackscrew Socket	7.3 mm	0.287 in	8.1 mm	0.319 in	4-40 Screw, 4-40 Socket	Hardware Included
TE Connectivity AMP Connectors 1-1393560-7										D-Sub Connectors		Jackscrew Socket					4-40 Screw, M3 Socket	Hardware Included	7.91 mm	0.311 in
TE Connectivity AMP Connectors 3-1393560-2										D-Sub Connectors		Jackscrew Socket					4-40 Socket, M3 Screw	Hardware Included
TE Connectivity AMP Connectors 2-1393560-9										D-Sub Connectors		Jackscrew					4-40	Hardware Included	7.91 mm	0.311 in
TE Connectivity AMP Connectors 1-1393560-8										D-Sub Connectors		Jackscrew Socket					4-40 Screw, 4-40 Socket	Hardware Included	7.91 mm	0.311 in
TE Connectivity AMP Connectors 4-1393560-5										D-Sub IDC Connectors	15	Strain Relief
TE Connectivity AMP Connectors 3-1393560-1										D-Sub Connectors		Jackscrew Socket	3.75 mm	0.148 "	4.55 mm	0.179 in	M3 Screw, M3 Socket	Hardware Included
TE Connectivity AMP Connectors 2-1393560-5										D-Sub Connectors		Jackscrew Socket	7.3 mm	0.287 in	8.1 mm	0.319 in	4-40 Screw, 4-40 Socket	Hardware Included
