10368-C500-00
Active3M

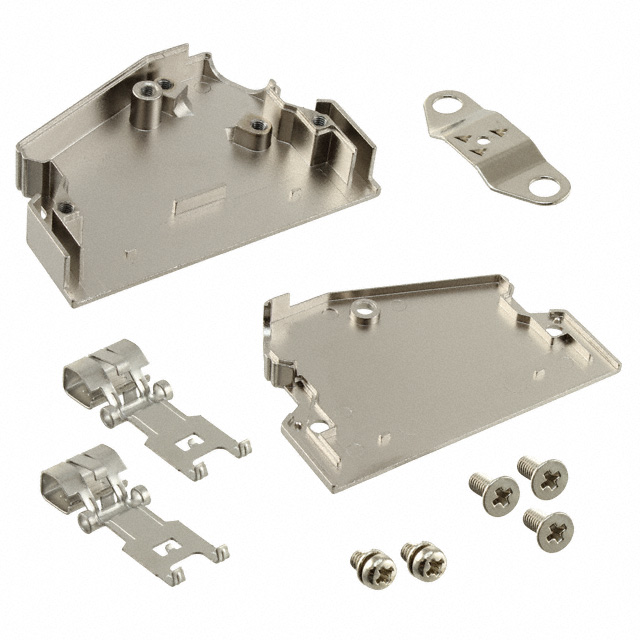

CONNECTOR BACKSHELL, JUNCTION BACKSHELL, 68 POSITION CONNECTORS, 60°, ZINC ALLOY BODY
Deep-Dive with AI
Search across all available documentation for this part.
10368-C500-00
Active3M
CONNECTOR BACKSHELL, JUNCTION BACKSHELL, 68 POSITION CONNECTORS, 60°, ZINC ALLOY BODY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 10368-C500-00 | 10368 Series |
|---|---|---|
| - | - | |
| Accessory Type | Two Piece Backshell | Two Piece Backshell, Two Piece Backshell and Cover |
| Cable Exit | 60 ° | 60 - 180 ° |
| Cable Type | Round | Round, Flat |
| Color | Silver | Silver, Beige, Black |
| Features | Latch Lock | Latch Lock, Mating Screws 4-40 |
| Hardware | - | Assembly Hardware, Gasket |
| Material | Zinc Alloy | Zinc Alloy, Metal, Metal, Zinc |
| Material | - | Plastic, Steel |
| Material | - | Metal |
| Number of Positions | 68 | 68 |
| Plating | Nickel | Nickel |
| Primary Material | Metal | Metal |
| Shielding | Shielded | Shielded |
10368 Series
CONN BACKSHELL 68POS 60DEG SHLD
| Part | Primary Material | Cable Exit | Cable Type | Color | Plating | Number of Positions | Shielding | Material | Features | Accessory Type | Material [custom] | Material [custom] | Hardware |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Metal | 60 ° | Round | Silver | Nickel | 68 | Shielded | Metal, Zinc Alloy | Latch Lock | Two Piece Backshell | ||||
Metal | 60 ° | Round | Silver | Nickel | 68 | Shielded | Zinc Alloy | Latch Lock | Two Piece Backshell | ||||
Metal | 180 ° | Round | Beige | 68 | Shielded | Latch Lock | Two Piece Backshell and Cover | Plastic, Steel | Metal | ||||
Metal | 180 ° | Round | Beige | 68 | Shielded | Mating Screws 4-40 | Two Piece Backshell and Cover | Plastic, Steel | Metal | ||||
Metal | 180 ° | Flat | Silver | Nickel | 68 | Shielded | Metal, Zinc | Mating Screws 4-40 | Two Piece Backshell | Assembly Hardware, Gasket | |||
68 | |||||||||||||
Metal | 180 ° | Round | Silver | Nickel | 68 | Shielded | Zinc Alloy | Latch Lock | Two Piece Backshell | ||||
Metal | 180 ° | Round | Black | 68 | Shielded | Mating Screws 4-40 | Two Piece Backshell and Cover | Plastic, Steel | Metal | ||||
Metal | 180 ° | Round | Beige | 68 | Shielded | Latch Lock | Two Piece Backshell and Cover | Plastic, Steel | Metal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
10368 Series
68 Position Two Piece Backshell Connector Silver 60° Shielded
Documents
Technical documentation and resources
