10368-32J0-000

Active

80400004398 10368-32J0-000=68/MDR/TSSHELL/BEIGE

Search across all available documentation for this part.

Active

80400004398 10368-32J0-000=68/MDR/TSSHELL/BEIGE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

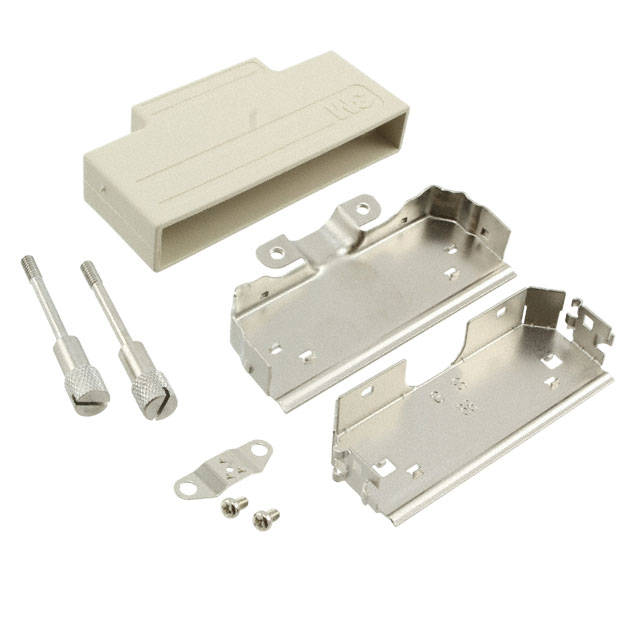

68 Position Two Piece Backshell and Cover Connector Beige 180° Shielded

Technical documentation and resources

Specification	10368-32J0-000	10368 Series

	-	-
Accessory Type	Two Piece Backshell and Cover	Two Piece Backshell, Two Piece Backshell and Cover
Cable Exit	180 °	60 - 180 °
Cable Type	Round	Round, Flat
Color	Beige	Silver, Beige, Black
Features	Mating Screws 4-40	Latch Lock, Mating Screws 4-40
Hardware	-	Assembly Hardware, Gasket
Material	-	Zinc Alloy, Metal, Metal, Zinc
Material [custom]	Plastic, Steel	Plastic, Steel
Material [custom]	Metal	Metal
Number of Positions	68	68
Plating	-	Nickel
Primary Material	Metal	Metal
Shielding	Shielded	Shielded

Part	Primary Material	Cable Exit	Cable Type	Color	Plating	Number of Positions	Shielding	Material	Features	Accessory Type	Material [custom]	Material [custom]	Hardware
3M 10368-A500-00	Metal	60 °	Round	Silver	Nickel	68	Shielded	Metal, Zinc Alloy	Latch Lock	Two Piece Backshell
3M 10368-C500-00	Metal	60 °	Round	Silver	Nickel	68	Shielded	Zinc Alloy	Latch Lock	Two Piece Backshell
3M 10368-3280-000-1	Metal	180 °	Round	Beige		68	Shielded		Latch Lock	Two Piece Backshell and Cover	Plastic, Steel	Metal
3M 10368-32J0-000	Metal	180 °	Round	Beige		68	Shielded		Mating Screws 4-40	Two Piece Backshell and Cover	Plastic, Steel	Metal
3M 10368-3281-000-1
3M 10368-12R1-00	Metal	180 °	Flat	Silver	Nickel	68	Shielded	Metal, Zinc	Mating Screws 4-40	Two Piece Backshell			Assembly Hardware, Gasket
3M 10368-A230-00						68
3M 10368-C200-00	Metal	180 °	Round	Silver	Nickel	68	Shielded	Zinc Alloy	Latch Lock	Two Piece Backshell
3M 10368-32J0-006	Metal	180 °	Round	Black		68	Shielded		Mating Screws 4-40	Two Piece Backshell and Cover	Plastic, Steel	Metal
3M 10368-3280-000-0	Metal	180 °	Round	Beige		68	Shielded		Latch Lock	Two Piece Backshell and Cover	Plastic, Steel	Metal
