10368-32J0-006
Active3M

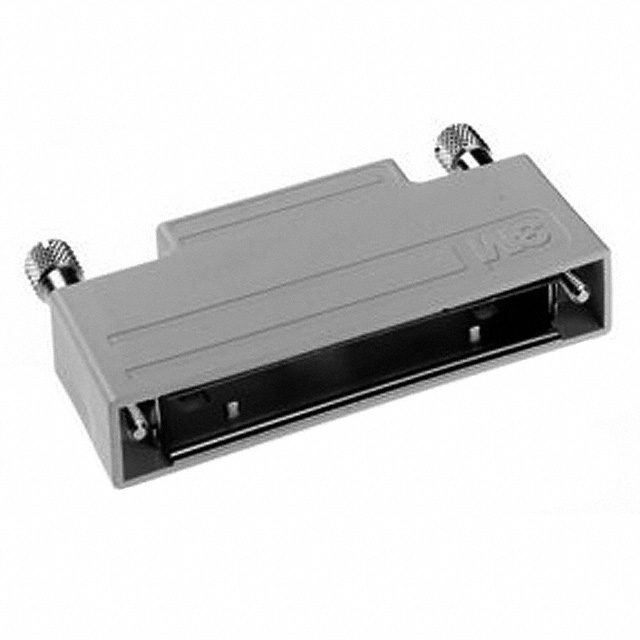

CONN BACKSHELL 68POS 180DEG SHLD
Deep-Dive with AI
Search across all available documentation for this part.
10368-32J0-006
Active3M
CONN BACKSHELL 68POS 180DEG SHLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 10368-32J0-006 | 10368 Series |
|---|---|---|
| - | - | |
| Accessory Type | Two Piece Backshell and Cover | Two Piece Backshell, Two Piece Backshell and Cover |
| Cable Exit | 180 ° | 60 - 180 ° |
| Cable Type | Round | Round, Flat |
| Color | Black | Silver, Beige, Black |
| Features | Mating Screws 4-40 | Latch Lock, Mating Screws 4-40 |
| Hardware | - | Assembly Hardware, Gasket |
| Material | - | Zinc Alloy, Metal, Metal, Zinc |
| Material [custom] | Plastic, Steel | Plastic, Steel |
| Material [custom] | Metal | Metal |
| Number of Positions | 68 | 68 |
| Plating | - | Nickel |
| Primary Material | Metal | Metal |
| Shielding | Shielded | Shielded |
10368 Series
CONN BACKSHELL 68POS 60DEG SHLD
| Part | Primary Material | Cable Exit | Cable Type | Color | Plating | Number of Positions | Shielding | Material | Features | Accessory Type | Material [custom] | Material [custom] | Hardware |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Metal | 60 ° | Round | Silver | Nickel | 68 | Shielded | Metal, Zinc Alloy | Latch Lock | Two Piece Backshell | ||||
Metal | 60 ° | Round | Silver | Nickel | 68 | Shielded | Zinc Alloy | Latch Lock | Two Piece Backshell | ||||
Metal | 180 ° | Round | Beige | 68 | Shielded | Latch Lock | Two Piece Backshell and Cover | Plastic, Steel | Metal | ||||
Metal | 180 ° | Round | Beige | 68 | Shielded | Mating Screws 4-40 | Two Piece Backshell and Cover | Plastic, Steel | Metal | ||||
Metal | 180 ° | Flat | Silver | Nickel | 68 | Shielded | Metal, Zinc | Mating Screws 4-40 | Two Piece Backshell | Assembly Hardware, Gasket | |||
68 | |||||||||||||
Metal | 180 ° | Round | Silver | Nickel | 68 | Shielded | Zinc Alloy | Latch Lock | Two Piece Backshell | ||||
Metal | 180 ° | Round | Black | 68 | Shielded | Mating Screws 4-40 | Two Piece Backshell and Cover | Plastic, Steel | Metal | ||||
Metal | 180 ° | Round | Beige | 68 | Shielded | Latch Lock | Two Piece Backshell and Cover | Plastic, Steel | Metal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
10368 Series
68 Position Two Piece Backshell and Cover Connector Black 180° Shielded
Documents
Technical documentation and resources
