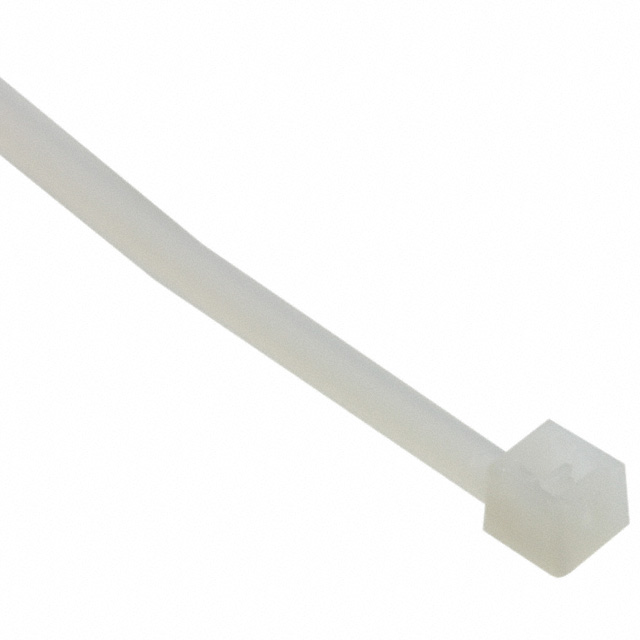

CT6NT18-C
Active3M (TC)
CABLE TIE, MINIATURE, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 155 MM, 3 MM, 31.8 MM, 18 LB
Deep-Dive with AI
Search across all available documentation for this part.
CT6NT18-C
Active3M (TC)
CABLE TIE, MINIATURE, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 155 MM, 3 MM, 31.8 MM, 18 LB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CT6NT18-C |
|---|---|
| Bundle Diameter [diameter] | 31.75 mm |
| Bundle Diameter [diameter] | 1.25 " |
| Color | Natural |
| Length - Actual [x] | 6.1 in |
| Length - Actual [x] | 154.94 mm |
| Length - Actual [x] | 0.508 ft |
| Length - Approximate [x] | 6 in |
| Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Shelf Life | 60 Months |
| Shelf Life Start | Date of Manufacture |
| Storage/Refrigeration Temperature [Max] | 80 °F, 27 °C |
| Storage/Refrigeration Temperature [Min] | 10 °C |
| Tensile Strength | 18 lbs |
| Tensile Strength | 8.16 kg |
| Width [x] | 0.1 " |
| Width [x] | 2.54 mm |
| Wire/Cable Tie Type | Standard, Locking |
CT6 Series
| Part | Length - Approximate | Bundle Diameter [diameter] | Bundle Diameter [diameter] | Width [x] | Width [x] | Length - Actual [x] | Length - Actual [x] | Length - Actual [x] | Shelf Life Start | Color | Mounting Type | Shelf Life | Tensile Strength | Tensile Strength | Storage/Refrigeration Temperature [Max] | Storage/Refrigeration Temperature [Min] | Wire/Cable Tie Type | Material | Length - Approximate [x] | Width [x] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3M (TC) | 5.75 in | 31.75 mm | 1.25 " | 3.58 mm | 0.141 in | 0.483 ft | 5.8 in | 147.32 mm | Date of Manufacture | Natural | Free Hanging (In-Line) | 60 Months | 13.61 kg | 30 lbs | 27 °C 80 °F | 10 °C | Locking Standard | Polyamide (PA66) Nylon 6/6 | |||
3M (TC) | 31.75 mm | 1.25 " | 2.54 mm | 0.508 ft | 6.1 in | 154.94 mm | Date of Manufacture | Natural | Free Hanging (In-Line) | 60 Months | 8.16 kg | 18 lbs | 27 °C 80 °F | 10 °C | Locking Standard | Polyamide (PA66) Nylon 6/6 | 6 in | 0.1 " | |||
3M (TC) | 31.75 mm | 1.25 " | 2.54 mm | 0.508 ft | 6.1 in | 154.94 mm | Date of Manufacture | Natural | Free Hanging (In-Line) | 60 Months | 8.16 kg | 18 lbs | 27 °C 80 °F | 10 °C | Locking Standard | Polyamide (PA66) Nylon 6/6 | 6 in | 0.1 " | |||
3M (TC) | 31.75 mm | 1.25 " | 2.54 mm | 0.508 ft | 6.1 in | 154.94 mm | Date of Manufacture | Black | Free Hanging (In-Line) | 60 Months | 8.16 kg | 18 lbs | 27 °C 80 °F | 10 °C | Locking Standard | Polyamide (PA66) Nylon 6/6 | 6 in | 0.1 " | UV Resistant | ||
3M (TC) | 5.75 in | 31.75 mm | 1.25 " | 3.58 mm | 0.141 in | 0.483 ft | 5.8 in | 147.32 mm | Date of Manufacture | Black | Free Hanging (In-Line) | 60 Months | 13.61 kg | 30 lbs | 27 °C 80 °F | 10 °C | Locking Standard | Polyamide (PA66) Nylon 6/6 | UV Resistant | ||
3M (TC) | 5.75 in | 31.75 mm | 1.25 " | 3.58 mm | 0.141 in | 0.483 ft | 5.8 in | 147.32 mm | Date of Manufacture | Natural | Free Hanging (In-Line) | 60 Months | 13.61 kg | 30 lbs | 27 °C 80 °F | 10 °C | Locking Standard | Polyamide (PA66) Nylon 6/6 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
CT6 Series
Standard, Locking Natural 1.25" (31.75mm) 0.100" (2.54mm) 18 lbs (8.16 kg)
Documents
Technical documentation and resources
