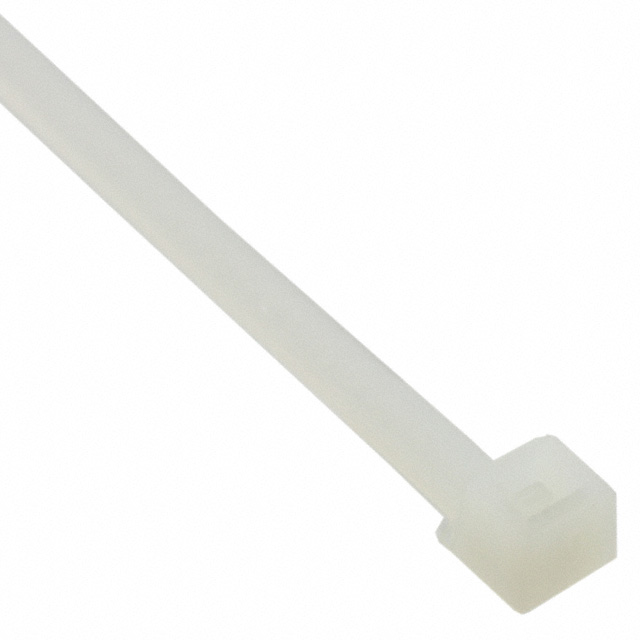

CT6NT30-C

Active

3M (TC)

CBL TIE LOCKING NAT 30LBS 5.8"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CT6NT30-C

Active

3M (TC)

CBL TIE LOCKING NAT 30LBS 5.8"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CT6NT30-C

Bundle Diameter [diameter]	31.75 mm
Bundle Diameter [diameter]	1.25 "
Color	Natural
Length - Actual [x]	0.483 ft
Length - Actual [x]	5.8 in
Length - Actual [x]	147.32 mm
Length - Approximate	5.75 in
Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Shelf Life	60 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	10 °C
Tensile Strength	13.61 kg
Tensile Strength	30 lbs
Width [x]	3.58 mm
Width [x]	0.141 in
Wire/Cable Tie Type	Standard, Locking

CT6 Series

Part	Length - Approximate	Bundle Diameter [diameter]	Bundle Diameter [diameter]	Width [x]	Width [x]	Length - Actual [x]	Length - Actual [x]	Length - Actual [x]	Shelf Life Start	Color	Mounting Type	Shelf Life	Tensile Strength	Tensile Strength	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Wire/Cable Tie Type	Material	Length - Approximate [x]	Width [x]	Features
3M (TC) CT6NT30-M	5.75 in	31.75 mm	1.25 "	3.58 mm	0.141 in	0.483 ft	5.8 in	147.32 mm	Date of Manufacture	Natural	Free Hanging (In-Line)	60 Months	13.61 kg	30 lbs	27 °C 80 °F	10 °C	Locking Standard	Polyamide (PA66) Nylon 6/6
3M (TC) CT6NT18-M		31.75 mm	1.25 "		2.54 mm	0.508 ft	6.1 in	154.94 mm	Date of Manufacture	Natural	Free Hanging (In-Line)	60 Months	8.16 kg	18 lbs	27 °C 80 °F	10 °C	Locking Standard	Polyamide (PA66) Nylon 6/6	6 in	0.1 "
3M (TC) CT6NT18-C		31.75 mm	1.25 "		2.54 mm	0.508 ft	6.1 in	154.94 mm	Date of Manufacture	Natural	Free Hanging (In-Line)	60 Months	8.16 kg	18 lbs	27 °C 80 °F	10 °C	Locking Standard	Polyamide (PA66) Nylon 6/6	6 in	0.1 "
3M (TC) CT6BK18-C		31.75 mm	1.25 "		2.54 mm	0.508 ft	6.1 in	154.94 mm	Date of Manufacture	Black	Free Hanging (In-Line)	60 Months	8.16 kg	18 lbs	27 °C 80 °F	10 °C	Locking Standard	Polyamide (PA66) Nylon 6/6	6 in	0.1 "	UV Resistant
3M (TC) CT6BK30-M	5.75 in	31.75 mm	1.25 "	3.58 mm	0.141 in	0.483 ft	5.8 in	147.32 mm	Date of Manufacture	Black	Free Hanging (In-Line)	60 Months	13.61 kg	30 lbs	27 °C 80 °F	10 °C	Locking Standard	Polyamide (PA66) Nylon 6/6			UV Resistant
3M (TC) CT6NT30-C	5.75 in	31.75 mm	1.25 "	3.58 mm	0.141 in	0.483 ft	5.8 in	147.32 mm	Date of Manufacture	Natural	Free Hanging (In-Line)	60 Months	13.61 kg	30 lbs	27 °C 80 °F	10 °C	Locking Standard	Polyamide (PA66) Nylon 6/6

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 0.12
		300	$ 0.10
		500	$ 0.10
		1000	$ 0.08
		2500	$ 0.08
		5000	$ 0.07
		10000	$ 0.07

Description

General part information

CT6 Series

Standard, Locking Natural 1.25" (31.75mm) 0.141" (3.58mm) 30 lbs (13.61 kg)

Documents

Technical documentation and resources
