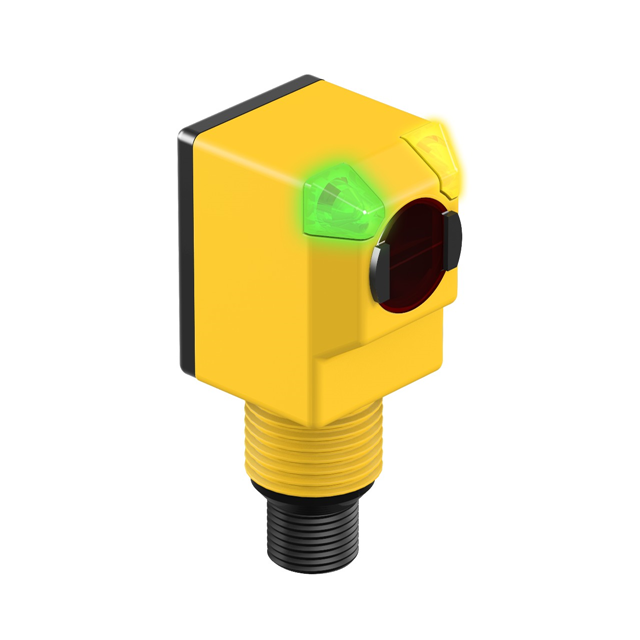

QS186LEQPMA

Active

BANNER ENGINEERING

LASER EMITTER 15M SENSING 10-30VDC M8X1 CONNECTOR/4-PIN PICO PIGTAIL CONNECTION SIDE SENSING ABS

Search across all available documentation for this part.

Active

BANNER ENGINEERING

LASER EMITTER 15M SENSING 10-30VDC M8X1 CONNECTOR/4-PIN PICO PIGTAIL CONNECTION SIDE SENSING ABS

Technical Specifications

Parameters and characteristics for this part

Specification	QS186LEQPMA

Connection Method	Connector
Ingress Protection	NEMA 6P, IEC IP67
Light Source	RED (650nm)
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Sensing Distance	15 m
Sensing Distance	590.551 in
Sensing Method	Through-Beam
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Sensing Distance	Sensing Distance	Light Source	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Connection Method	Sensing Method	Ingress Protection	Cable Length	Cable Length	Operating Temperature [Min]	Operating Temperature [Max]
BANNER ENGINEERING QS186LEQ8	15 m	590.551 in	LED	30 VDC	10 VDC	-10 °C	50 °C	Connector	Through-Beam	NEMA 6P IEC IP67
BANNER ENGINEERING QS186LE211	15 m	590.551 in	RED (650nm)	30 VDC	10 VDC	-10 °C	50 °C	Cable	Through-Beam	NEMA 6P IEC IP67	78.74 in	2 m
BANNER ENGINEERING QS186EBQ8	3000 mm	118.11 in	LED	30 VDC	10 VDC			Connector	Through-Beam	NEMA 6P IEC IP67			-20 C	70 °C
BANNER ENGINEERING QS186LE14Q5	15 m	590.551 in	RED (650nm)	30 VDC	10 VDC	-10 °C	50 °C	Connector	Through-Beam	NEMA 6P IEC IP67
BANNER ENGINEERING QS186E W/30	20 m	787.402 in	Infrared	30 VDC	10 VDC			Cable	Through-Beam	NEMA 6P IEC IP67	354.33 in	9 m	-20 C	70 °C
BANNER ENGINEERING QS186E	20 m	787.402 in	LED	30 VDC	10 VDC			Cable	Through-Beam	NEMA 6P IEC IP67	78.74 in	2 m	-20 C	70 °C
BANNER ENGINEERING QS186LE211Q5	15 m	590.551 in	RED (650nm)	30 VDC	10 VDC	-10 °C	50 °C	Connector	Through-Beam	NEMA 6P IEC IP67
BANNER ENGINEERING QS186EQ	20 m	787.402 in	LED	30 VDC	10 VDC			Connector	Through-Beam	NEMA 6P IEC IP67			-20 C	70 °C
BANNER ENGINEERING QS186LEQPMA	15 m	590.551 in	RED (650nm)	30 VDC	10 VDC	-10 °C	50 °C	Connector	Through-Beam	NEMA 6P IEC IP67
BANNER ENGINEERING QS186EQ8	20 m	787.402 in	LED	30 VDC	10 VDC			Connector	Through-Beam	NEMA 6P IEC IP67			-20 C	70 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 118.00
Newark	Each	1	$ 120.00

General part information

Through-Beam Optical Sensor 590.551" (15m)
