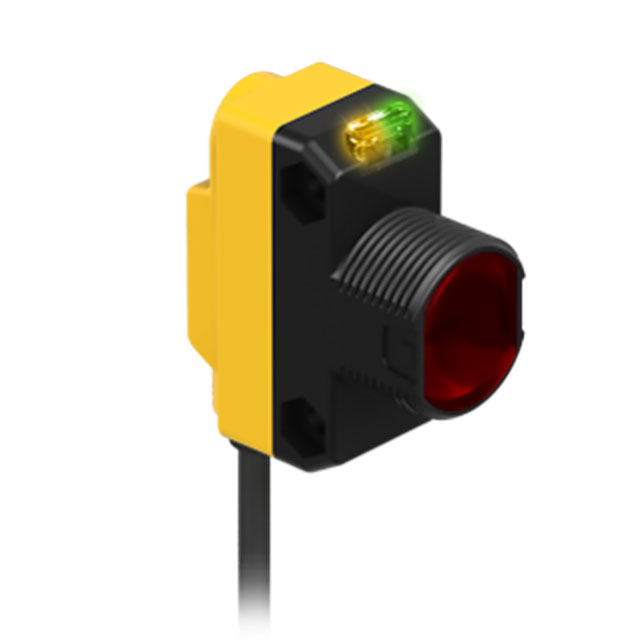

QS186E

Active

BANNER ENGINEERING

PHOTOELECTRIC SENSOR, WORLD BEAM, QS18 SERIES, OPPOSED, 20 M, 10 V TO 30 V, PRE-WIRED

Search across all available documentation for this part.

Active

BANNER ENGINEERING

PHOTOELECTRIC SENSOR, WORLD BEAM, QS18 SERIES, OPPOSED, 20 M, 10 V TO 30 V, PRE-WIRED

Technical Specifications

Parameters and characteristics for this part

Part	Sensing Distance	Sensing Distance	Light Source	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Connection Method	Sensing Method	Ingress Protection	Cable Length	Cable Length	Operating Temperature [Min]	Operating Temperature [Max]
BANNER ENGINEERING QS186LEQ8	15 m	590.551 in	LED	30 VDC	10 VDC	-10 °C	50 °C	Connector	Through-Beam	NEMA 6P IEC IP67
BANNER ENGINEERING QS186LE211	15 m	590.551 in	RED (650nm)	30 VDC	10 VDC	-10 °C	50 °C	Cable	Through-Beam	NEMA 6P IEC IP67	78.74 in	2 m
BANNER ENGINEERING QS186EBQ8	3000 mm	118.11 in	LED	30 VDC	10 VDC			Connector	Through-Beam	NEMA 6P IEC IP67			-20 C	70 °C
BANNER ENGINEERING QS186LE14Q5	15 m	590.551 in	RED (650nm)	30 VDC	10 VDC	-10 °C	50 °C	Connector	Through-Beam	NEMA 6P IEC IP67
BANNER ENGINEERING QS186E W/30	20 m	787.402 in	Infrared	30 VDC	10 VDC			Cable	Through-Beam	NEMA 6P IEC IP67	354.33 in	9 m	-20 C	70 °C
BANNER ENGINEERING QS186E	20 m	787.402 in	LED	30 VDC	10 VDC			Cable	Through-Beam	NEMA 6P IEC IP67	78.74 in	2 m	-20 C	70 °C
BANNER ENGINEERING QS186LE211Q5	15 m	590.551 in	RED (650nm)	30 VDC	10 VDC	-10 °C	50 °C	Connector	Through-Beam	NEMA 6P IEC IP67
BANNER ENGINEERING QS186EQ	20 m	787.402 in	LED	30 VDC	10 VDC			Connector	Through-Beam	NEMA 6P IEC IP67			-20 C	70 °C
BANNER ENGINEERING QS186LEQPMA	15 m	590.551 in	RED (650nm)	30 VDC	10 VDC	-10 °C	50 °C	Connector	Through-Beam	NEMA 6P IEC IP67
BANNER ENGINEERING QS186EQ8	20 m	787.402 in	LED	30 VDC	10 VDC			Connector	Through-Beam	NEMA 6P IEC IP67			-20 C	70 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Through-Beam Optical Sensor 787.402" (20m)
