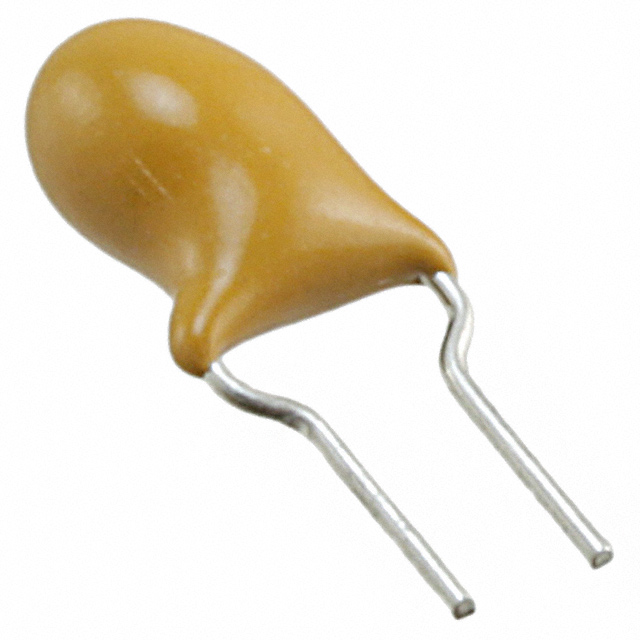

T355E475K035AT

Active

KEMET

CAP TANT 4.7UF 10% 35V RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP TANT 4.7UF 10% 35V RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	T355E475K035AT

Capacitance	4.7 µF
ESR (Equivalent Series Resistance)	3 Ohm
Features	General Purpose
Height - Seated (Max) [Max] [z]	0.4 in
Height - Seated (Max) [Max] [z]	10.16 mm
Lead Spacing	3.18 mm
Lead Spacing	0.125 in
Manufacturer Size Code	E
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [diameter]	0.217 "
Size / Dimension [diameter]	5.5 mm
Tolerance	10 %
Type	Conformal Coated
Voltage - Rated	35 V

Part	Manufacturer Size Code	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case	Lead Spacing	Lead Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Features	Capacitance	Voltage - Rated	Type	Mounting Type	Tolerance	ESR (Equivalent Series Resistance)
KEMET T355E106K025AS	E	0.217 "	5.5 mm	Radial	3.18 mm	0.125 in	-55 °C	125 °C	0.4 in	10.16 mm	General Purpose	10 µF	25 VDC	Conformal Coated	Through Hole	10 %
KEMET T355E106K020AT	E	0.217 "	5.5 mm	Radial	3.18 mm	0.125 in	-55 °C	125 °C	0.4 in	10.16 mm	General Purpose	10 µF	20 V	Conformal Coated	Through Hole	10 %
KEMET T355E225K050AS	E	0.217 "	5.5 mm	Radial	3.18 mm	0.125 in	-55 °C	125 °C	0.402 "	10.2 mm	General Purpose	2.2 µF	50 VDC	Conformal Coated	Through Hole	10 %	3.5 Ohm
KEMET T355E475K035AT	E	0.217 "	5.5 mm	Radial	3.18 mm	0.125 in	-55 °C	125 °C	0.4 in	10.16 mm	General Purpose	4.7 µF	35 V	Conformal Coated	Through Hole	10 %	3 Ohm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4.7 µF Conformal Coated Tantalum Capacitors 35 V Radial 3Ohm
