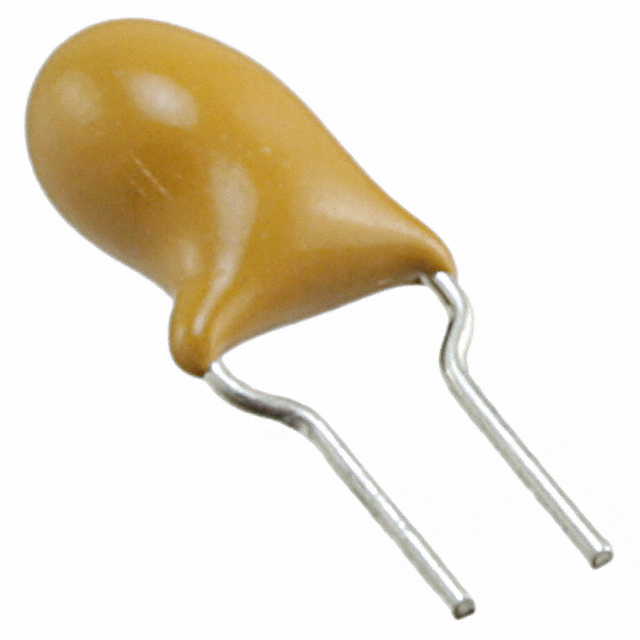

T355E225K050AS

Active

KEMET

CAPACITOR,2.2UF,50VDC,10-% TOL,10+% TOL ROHS COMPLIANT: NO

Search across all available documentation for this part.

Active

KEMET

CAPACITOR,2.2UF,50VDC,10-% TOL,10+% TOL ROHS COMPLIANT: NO

Technical Specifications

Parameters and characteristics for this part

Specification	T355E225K050AS

Capacitance	2.2 µF
ESR (Equivalent Series Resistance)	3.5 Ohm
Features	General Purpose
Height - Seated (Max) [Max] [z]	10.2 mm
Height - Seated (Max) [Max] [z]	0.402 "
Lead Spacing	3.18 mm
Lead Spacing	0.125 in
Manufacturer Size Code	E
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [diameter]	0.217 "
Size / Dimension [diameter]	5.5 mm
Tolerance	10 %
Type	Conformal Coated
Voltage - Rated	50 VDC

Part	Manufacturer Size Code	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case	Lead Spacing	Lead Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Features	Capacitance	Voltage - Rated	Type	Mounting Type	Tolerance	ESR (Equivalent Series Resistance)
KEMET T355E106K025AS	E	0.217 "	5.5 mm	Radial	3.18 mm	0.125 in	-55 °C	125 °C	0.4 in	10.16 mm	General Purpose	10 µF	25 VDC	Conformal Coated	Through Hole	10 %
KEMET T355E106K020AT	E	0.217 "	5.5 mm	Radial	3.18 mm	0.125 in	-55 °C	125 °C	0.4 in	10.16 mm	General Purpose	10 µF	20 V	Conformal Coated	Through Hole	10 %
KEMET T355E225K050AS	E	0.217 "	5.5 mm	Radial	3.18 mm	0.125 in	-55 °C	125 °C	0.402 "	10.2 mm	General Purpose	2.2 µF	50 VDC	Conformal Coated	Through Hole	10 %	3.5 Ohm
KEMET T355E475K035AT	E	0.217 "	5.5 mm	Radial	3.18 mm	0.125 in	-55 °C	125 °C	0.4 in	10.16 mm	General Purpose	4.7 µF	35 V	Conformal Coated	Through Hole	10 %	3 Ohm
