395-086-521-208

Active

EDAC Inc.

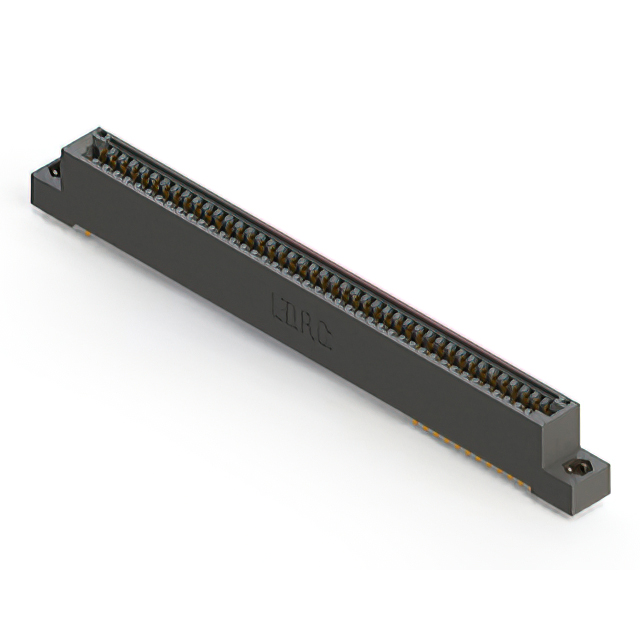

.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Connectors, Interconnects

395-086-521-208

Active

EDAC Inc.

.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Specifications Series Pricing CAD Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	395-086-521-208

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Top Opening, Threaded Insert, 4-40
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	43, 86
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2 rows

395-086 Series

...

Part	Contact Finish	Operating Temperature (Min)	Operating Temperature (Max)	Color	Flange Feature Diameter	Flange Feature	Termination	Pitch	Gender	Number of Rows	Mounting Type	Number of Positions	Contact Finish Thickness	Card Thickness (Min)	Card Thickness (Max)	Contact Type	Contact Material	Read Out	Card Type	Termination Rows	Material - Insulation	Features
EDAC Inc. 395-086-544-202	Gold	-40 °C	105 °C	Black	0.128 in	Flush Mount Top Opening Unthreaded	Wire Wrap	0.1 in	Female	2	Through Hole	43 86	10 Ąin	0.054 in	0.07 in	Cantilever	Copper Alloy	Dual	Dual Edge Non Specified	2 rows	Polyester Thermoplastic
EDAC Inc. 395-086-524-512	Gold	-40 °C	105 °C	Black	0.128 in	Side Mount Opening Unthreaded	Solder	0.1 in	Female	2	Through Hole	43 86	10 Ąin	0.054 in	0.07 in	Cantilever	Copper Alloy	Dual	Dual Edge Non Specified	2 rows	Polyester Thermoplastic
EDAC Inc. 395-086-523-802	Gold	-40 °C	105 °C	Black	0.128 in	Top Mount Opening Unthreaded	Solder	0.1 in	Female	2	Through Hole	43 86	10 Ąin	0.054 in	0.07 in	Cantilever	Copper Alloy	Dual	Dual Edge Non Specified	2 rows	Polyester Thermoplastic
EDAC Inc. 395-086-521-208	Gold	-40 °C	105 °C	Black		4-40 Flush Mount Threaded Insert Top Opening	Solder	0.1 in	Female	2	Through Hole	43 86	10 Ąin	0.054 in	0.07 in	Cantilever	Copper Alloy	Dual	Dual Edge Non Specified	2 rows	Polyester Thermoplastic
EDAC Inc. 395-086-520-878	Gold	-40 °C	105 °C	Black		4-40 Threaded Insert Top Mount Opening	Solder	0.1 in	Female	2	Through Hole	43 86	10 Ąin	0.054 in	0.07 in	Cantilever	Copper Alloy	Dual	Dual Edge Non Specified	2 rows	Polyester Thermoplastic	Card Guides
EDAC Inc. 395-086-560-808	Gold	-40 °C	105 °C	Black		4-40 Threaded Insert Top Mount Opening	Solder	0.1 in	Female	2	Board Edge Straddle Mount	43 86	10 Ąin	0.054 in	0.07 in	Cantilever	Copper Alloy	Dual	Dual Edge Non Specified	2 rows	Polyester Thermoplastic	Card Extender
EDAC Inc. 395-086-544-878	Gold	-40 °C	105 °C	Black		4-40 Threaded Insert Top Mount Opening	Wire Wrap	0.1 in	Female	2	Through Hole	43 86	10 Ąin	0.054 in	0.07 in	Cantilever	Copper Alloy	Dual	Dual Edge Non Specified	2 rows	Polyester Thermoplastic	Card Guides
EDAC Inc. 395-086-521-278	Gold	-40 °C	105 °C	Black		4-40 Flush Mount Threaded Insert Top Opening	Solder	0.1 in	Female	2	Through Hole	43 86	10 Ąin	0.054 in	0.07 in	Cantilever	Copper Alloy	Dual	Dual Edge Non Specified	2 rows	Polyester Thermoplastic	Card Guides
EDAC Inc. 395-086-520-203	Gold	-40 °C	105 °C	Black	0.116 in	Floating Bobbin Flush Mount	Solder	0.1 in	Female	2	Through Hole	43 86	10 Ąin	0.054 in	0.07 in	Cantilever	Copper Alloy	Dual	Dual Edge Non Specified	2 rows	Polyester Thermoplastic
EDAC Inc. 395-086-523-812	Gold	-40 °C	105 °C	Black	0.128 in	Side Mount Opening Unthreaded	Solder	0.1 in	Female	2	Through Hole	43 86	10 Ąin	0.054 in	0.07 in	Cantilever	Copper Alloy	Dual	Dual Edge Non Specified	2 rows	Polyester Thermoplastic
