395-086-520-878
ActiveEDAC Inc.

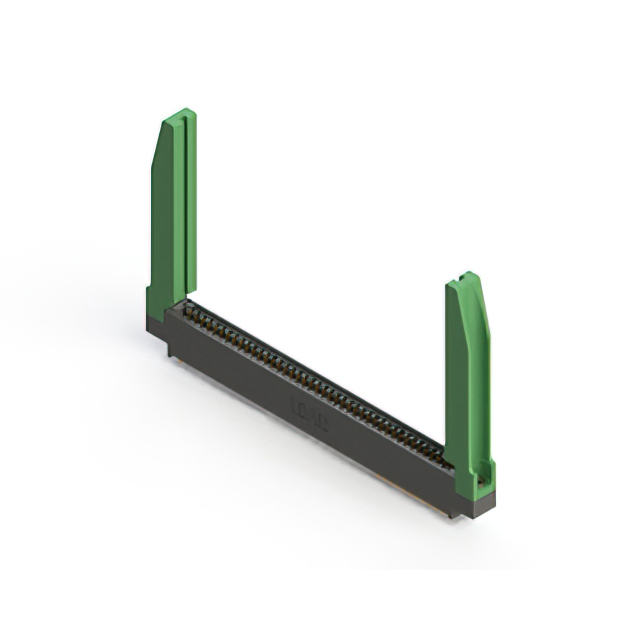

.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
395-086-520-878
ActiveEDAC Inc.
.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 395-086-520-878 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Guides |
| Flange Feature | Top Mount Opening, 4-40, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 86 |
| Number of Positions/Bay/Row [custom] | 43 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
395-086 Series
...
| Part | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Material - Insulation | Number of Positions/Bay/Row [custom] | Pitch [x] | Pitch [x] | Contact Type | Card Type | Number of Positions | Read Out | Contact Finish | Termination Rows | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Color | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Mounting Type | Gender | Flange Feature | Flange Feature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2 | -40 °C | 105 ░C | Wire Wrap | Polyester Thermoplastic | 43 | 2.54 mm | 0.1 in | Cantilever | Non Specified - Dual Edge | 86 | Dual | Gold | 2 | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | Through Hole | Female | |||
EDAC Inc. | 2 | -40 °C | 105 ░C | Solder | Polyester Thermoplastic | 43 | 2.54 mm | 0.1 in | Cantilever | Non Specified - Dual Edge | 86 | Dual | Gold | 2 | Side Mount Opening Unthreaded | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | Through Hole | Female | 3.25 mm | 0.128 in | |||
EDAC Inc. | 2 | -40 °C | 105 ░C | Solder | Polyester Thermoplastic | 43 | 2.54 mm | 0.1 in | Cantilever | Non Specified - Dual Edge | 86 | Dual | Gold | 2 | 4-40 Flush Mount Threaded Insert Top Opening | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | Through Hole | Female | |||||
EDAC Inc. | 2 | -40 °C | 105 ░C | Solder | Polyester Thermoplastic | 43 | 2.54 mm | 0.1 in | Cantilever | Non Specified - Dual Edge | 86 | Dual | Gold | 2 | 4-40 Threaded Insert Top Mount Opening | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | Through Hole | Female | Card Guides | ||||
EDAC Inc. | 2 | -40 °C | 105 ░C | Solder | Polyester Thermoplastic | 43 | 2.54 mm | 0.1 in | Cantilever | Non Specified - Dual Edge | 86 | Dual | Gold | 2 | 4-40 Threaded Insert Top Mount Opening | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | Board Edge Straddle Mount | Female | Card Extender | ||||
EDAC Inc. | 2 | -40 °C | 105 ░C | Wire Wrap | Polyester Thermoplastic | 43 | 2.54 mm | 0.1 in | Cantilever | Non Specified - Dual Edge | 86 | Dual | Gold | 2 | 3.96 mm | 0.156 in | Top Mount Opening Unthreaded | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | Through Hole | Female | |||
EDAC Inc. | 2 | -40 °C | 105 ░C | Solder | Polyester Thermoplastic | 43 | 2.54 mm | 0.1 in | Cantilever | Non Specified - Dual Edge | 86 | Dual | Gold | 2 | 3.96 mm | 0.156 in | Top Mount Opening Unthreaded | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | Board Edge Straddle Mount | Female | Card Extender | ||
EDAC Inc. | 2 | -40 °C | 105 ░C | Wire Wrap | Polyester Thermoplastic | 43 | 2.54 mm | 0.1 in | Cantilever | Non Specified - Dual Edge | 86 | Dual | Gold | 2 | 4-40 Threaded Insert Top Mount Opening | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | Through Hole | Female | Card Guides | ||||
EDAC Inc. | 2 | -40 °C | 105 ░C | Solder | Polyester Thermoplastic | 43 | 2.54 mm | 0.1 in | Cantilever | Non Specified - Dual Edge | 86 | Dual | Gold | 2 | 4-40 Flush Mount Threaded Insert Top Opening | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | Through Hole | Female | Card Guides | ||||
EDAC Inc. | 2 | -40 °C | 105 ░C | Solder | Polyester Thermoplastic | 43 | 2.54 mm | 0.1 in | Cantilever | Non Specified - Dual Edge | 86 | Dual | Gold | 2 | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | Through Hole | Female |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
395-086 Series
86 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
