LP55281TL/NOPB

Active

Texas Instruments

12-CHANNEL RGB/WHITE-LED DRIVER WITH SPI/I2C INTERFACE

Find alt

Alpha

LP55281TL/NOPB

Active

Texas Instruments

12-CHANNEL RGB/WHITE-LED DRIVER WITH SPI/I2C INTERFACE

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

LP55281 Series

The LP55281 device is a quadruple RGB LED driver for handheld devices. It can drive 4 RGB LED sets and a single fun-light LED. The boost DC-DC converter drives high current loads with high efficiency. The RGB driver can drive individual color LEDs or RGB LEDs powered from boost output or external supply. Built-in audio synchronization feature allows user to synchronize the fun-light LED to audio inputs. The flexible SPI or I2C interface allows easy control of LP55281. A small YZR0036 or YPG0036 package, together with minimum number of external components, is a best fit for handheld devices. The LP55281 also has an LED test feature, which can be used, for example, in production for checking the LED connections.

Technical Specifications

Parameters and characteristics for this part

Specification	LP55281TL/NOPB

Applications	Backlight
Current - Output / Channel	40 mA
Dimming	I2C, SPI
Frequency	2 MHz
Internal Switch(s)	Yes
Mounting Type	Surface Mount
Number of Outputs	12
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-30 °C
Package / Case	36-WFBGA, DSBGA
Package Name	36-DSBGA
Topology	Step-Up (Boost)
Type	DC DC Regulator
Voltage - Output (Max)	5.3 V
Voltage - Output (Min)	4 V
Voltage - Supply (Max)	5.5 V
Voltage - Supply (Min)	3 V

LP55281 Series

Part	Voltage - Output (Min)	Voltage - Output (Max)	Dimming	Applications	Topology	Internal Switch(s)	Type	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Frequency	Package / Case	Number of Outputs	Current - Output / Channel	Voltage - Supply (Max)	Package Name	Package Length	Package Width	Voltage - Supply (Min)	Contents	Total Output Count	Non-Isolated Output Count	Output Type	Features	Voltage - Output	Voltage - Input (Minimum)	Voltage - Input (Maximum)	Utilized IC / Part	Supplied Contents
Texas Instruments LP55281RL/NOPB	4 V	5.3 V	I2C SPI	Backlight	Step-Up (Boost)	Yes	DC DC Regulator	85 °C	-30 °C	Surface Mount	2 MHz	36-WFBGA DSBGA	12	40 mA	5.5 V	36-DSBGA	3.5 mm	3.24 mm	3 V
Texas Instruments LP55281TL/NOPB	4 V	5.3 V	I2C SPI	Backlight	Step-Up (Boost)	Yes	DC DC Regulator	85 °C	-30 °C	Surface Mount	2 MHz	36-WFBGA DSBGA	12	40 mA	5.5 V	36-DSBGA			3 V
Texas Instruments LP55281TLX/NOPB	4 V	5.3 V	I2C SPI	Backlight	Step-Up (Boost)	Yes	DC DC Regulator	85 °C	-30 °C	Surface Mount	2 MHz	36-WFBGA DSBGA	12	40 mA	5.5 V	36-DSBGA			3 V

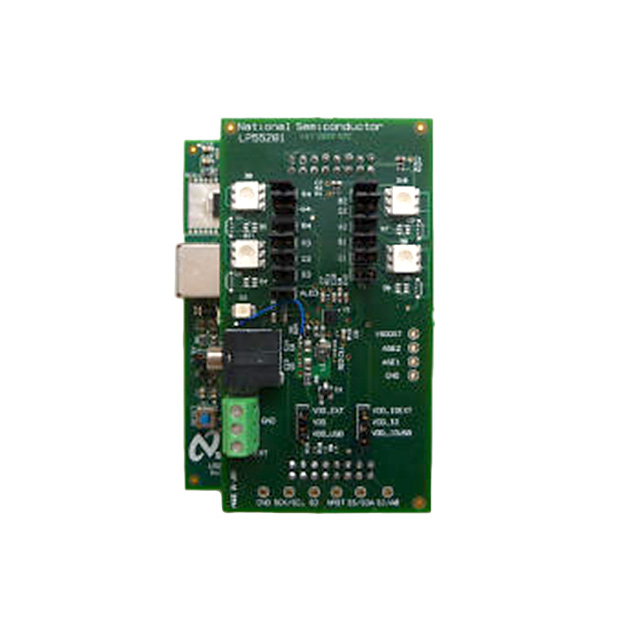

Texas Instruments LP55281RLEV/NOPB														400 mA						Board Cable	12 count	12 count	Non-Isolated	Dimmable	5.3 V	2.7 V	5.5 V	LP55281
Texas Instruments LP55281RLX/NOPB	4 V	5.3 V	I2C SPI	Backlight	Step-Up (Boost)	Yes	DC DC Regulator	85 °C	-30 °C	Surface Mount	2 MHz	36-WFBGA DSBGA	12	40 mA	5.5 V	36-DSBGA	3.5 mm	3.24 mm	3 V
Texas Instruments LP55281RLEV														400 mA						Board Cable	12 count	12 count	Non-Isolated	Dimmable	5.3 V	2.7 V	5.5 V	LP55281	Board(s) Cable(s)
