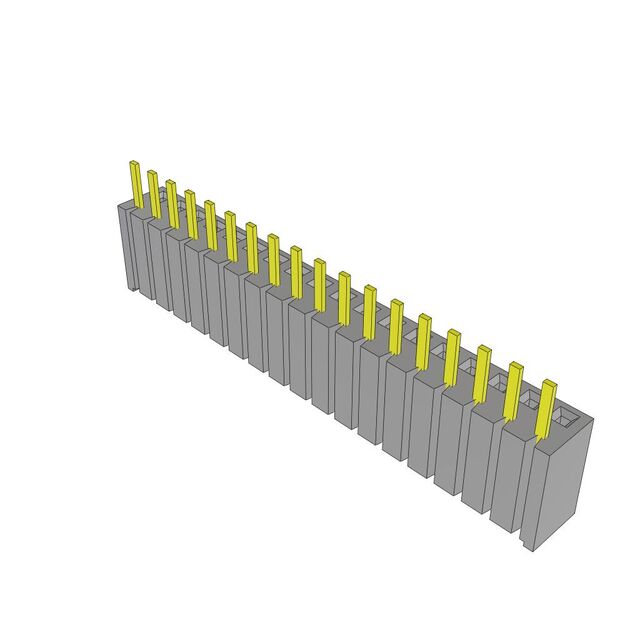

BSW-118-24-G-S

Active

Samtec Inc.

CONN BOTTOM MOUNT SOCKET STRIP SKT 18 POS 2.54MM SOLDER ST BOTTOM ENTRY THRU-HOLE BULK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

BSW-118-24-G-S

Active

Samtec Inc.

CONN BOTTOM MOUNT SOCKET STRIP SKT 18 POS 2.54MM SOLDER ST BOTTOM ENTRY THRU-HOLE BULK

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BSW-118-24-G-S

Connector Type	Receptacle, Breakaway
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	0.51 µm
Contact Finish Thickness - Mating	20 µin
Contact Length - Post	4.32 mm
Contact Length - Post	0.17 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [custom]	0.35 in
Insulation Height [custom]	8.89 mm
Insulation Material	Polyethylene Terephthalate (PET), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Bottom Mount
Number of Positions	18
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder

BSW-118 Series

Part	Mounting Type	Contact Type	Contact Shape	Insulation Height [custom]	Insulation Height [custom]	Contact Length - Post [x]	Contact Length - Post [x]	Contact Material	Fastening Type	Termination	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Number of Positions	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Color	Connector Type	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Contact Length - Post	Contact Length - Post
Samtec Inc. BSW-118-04-S-D	Bottom Mount Through Hole	Female Socket	Square	0.35 in	8.89 mm	0.165 in	4.19 mm	Phosphor Bronze	Push-Pull	Solder	Gold	0.1 in	2.54 mm	All	36	2.54 mm	0.1 in	Black	Breakaway Receptacle	2	-55 °C	125 °C	UL94 V-0	Tin	30 Áin	0.76 Ám	Polyethylene Terephthalate (PET) Glass Filled
Samtec Inc. BSW-118-04-S-S	Bottom Mount Through Hole	Female Socket	Square	0.35 in	8.89 mm			Phosphor Bronze	Push-Pull	Solder	Gold	0.1 in	2.54 mm	All	18			Black	Breakaway Receptacle	1	-55 °C	125 °C	UL94 V-0	Tin	30 Áin	0.76 Ám	Polyethylene Terephthalate (PET) Glass Filled	4.32 mm	0.17 in
Samtec Inc. BSW-118-04-L-S	Bottom Mount Through Hole	Female Socket	Square	0.35 in	8.89 mm			Phosphor Bronze	Push-Pull	Solder	Gold	0.1 in	2.54 mm	All	18			Black	Receptacle	1	-55 °C	125 °C	UL94 V-0	Tin	10 çin	0.25 çm	Polyethylene Terephthalate (PET) Glass Filled	4.32 mm	0.17 in
Samtec Inc. BSW-118-04-G-M	Bottom Mount Through Hole	Female Socket	Square	0.35 in	8.89 mm	0.125 in	3.18 mm	Phosphor Bronze	Push-Pull	Solder	Gold	0.1 in	2.54 mm	All	18			Black	Breakaway Receptacle	1	-55 °C	125 °C	UL94 V-0	Tin	20 µin	0.51 µm	Polyethylene Terephthalate (PET) Glass Filled
Samtec Inc. BSW-118-24-L-D	Bottom Mount Through Hole	Female Socket	Square	0.35 in	8.89 mm	0.165 in	4.19 mm	Phosphor Bronze	Push-Pull	Solder	Gold	0.1 in	2.54 mm	All	36	2.54 mm	0.1 in	Black	Breakaway Receptacle	2	-55 °C	125 °C	UL94 V-0	Tin	10 çin	0.25 çm	Polyethylene Terephthalate (PET) Glass Filled
Samtec Inc. BSW-118-24-G-S	Bottom Mount Through Hole	Female Socket	Square	0.35 in	8.89 mm			Phosphor Bronze	Push-Pull	Solder	Gold	0.1 in	2.54 mm	All	18			Black	Breakaway Receptacle	1	-55 °C	125 °C	UL94 V-0	Tin	20 µin	0.51 µm	Polyethylene Terephthalate (PET) Glass Filled	4.32 mm	0.17 in
Samtec Inc. BSW-118-04-T-D	Bottom Mount Through Hole	Female Socket	Square	0.35 in	8.89 mm	0.165 in	4.19 mm	Phosphor Bronze	Push-Pull	Solder		0.1 in	2.54 mm	All	36	2.54 mm	0.1 in	Black	Breakaway Receptacle	2	-55 °C	105 ░C	UL94 V-0	Tin			Polyethylene Terephthalate (PET) Glass Filled

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.27

Description

General part information

BSW-118 Series

18 Position Receptacle Connector 0.100" (2.54mm) Through Hole, Bottom Mount Gold
