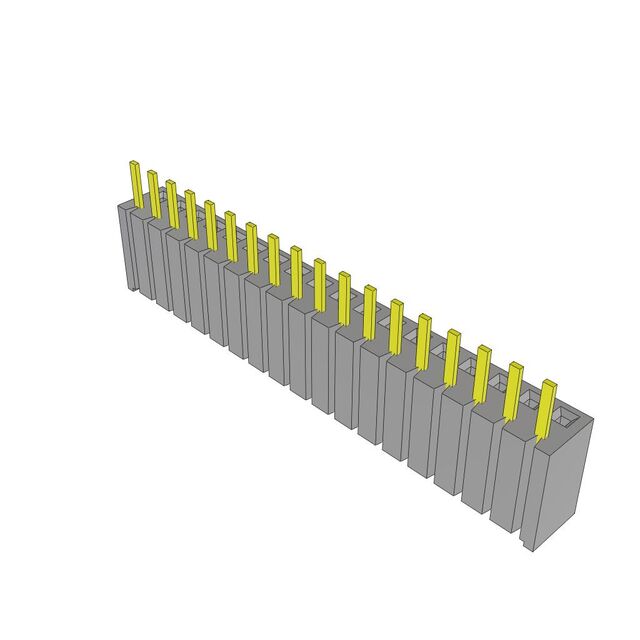

BSW-118-04-L-S
ActiveSamtec Inc.
CONN RCPT 18POS 0.1 GOLD PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BSW-118-04-L-S
ActiveSamtec Inc.
CONN RCPT 18POS 0.1 GOLD PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BSW-118-04-L-S |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Length - Post | 4.32 mm |
| Contact Length - Post | 0.17 in |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height [custom] | 0.35 in |
| Insulation Height [custom] | 8.89 mm |
| Insulation Material | Polyethylene Terephthalate (PET), Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Bottom Mount |
| Number of Positions | 18 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Termination | Solder |
BSW-118 Series
| Part | Mounting Type | Contact Type | Contact Shape | Insulation Height [custom] | Insulation Height [custom] | Contact Length - Post [x] | Contact Length - Post [x] | Contact Material | Fastening Type | Termination | Contact Finish - Mating | Pitch - Mating | Pitch - Mating | Number of Positions Loaded | Number of Positions | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Insulation Color | Connector Type | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Contact Finish - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Material | Contact Length - Post | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | Bottom Mount Through Hole | Female Socket | Square | 0.35 in | 8.89 mm | 0.165 in | 4.19 mm | Phosphor Bronze | Push-Pull | Solder | Gold | 0.1 in | 2.54 mm | All | 36 | 2.54 mm | 0.1 in | Black | Breakaway Receptacle | 2 | -55 °C | 125 °C | UL94 V-0 | Tin | 30 Áin | 0.76 Ám | Polyethylene Terephthalate (PET) Glass Filled | ||
Samtec Inc. | Bottom Mount Through Hole | Female Socket | Square | 0.35 in | 8.89 mm | Phosphor Bronze | Push-Pull | Solder | Gold | 0.1 in | 2.54 mm | All | 18 | Black | Breakaway Receptacle | 1 | -55 °C | 125 °C | UL94 V-0 | Tin | 30 Áin | 0.76 Ám | Polyethylene Terephthalate (PET) Glass Filled | 4.32 mm | 0.17 in | ||||
Samtec Inc. | Bottom Mount Through Hole | Female Socket | Square | 0.35 in | 8.89 mm | Phosphor Bronze | Push-Pull | Solder | Gold | 0.1 in | 2.54 mm | All | 18 | Black | Receptacle | 1 | -55 °C | 125 °C | UL94 V-0 | Tin | 10 çin | 0.25 çm | Polyethylene Terephthalate (PET) Glass Filled | 4.32 mm | 0.17 in | ||||
Samtec Inc. | Bottom Mount Through Hole | Female Socket | Square | 0.35 in | 8.89 mm | 0.125 in | 3.18 mm | Phosphor Bronze | Push-Pull | Solder | Gold | 0.1 in | 2.54 mm | All | 18 | Black | Breakaway Receptacle | 1 | -55 °C | 125 °C | UL94 V-0 | Tin | 20 µin | 0.51 µm | Polyethylene Terephthalate (PET) Glass Filled | ||||
Samtec Inc. | Bottom Mount Through Hole | Female Socket | Square | 0.35 in | 8.89 mm | 0.165 in | 4.19 mm | Phosphor Bronze | Push-Pull | Solder | Gold | 0.1 in | 2.54 mm | All | 36 | 2.54 mm | 0.1 in | Black | Breakaway Receptacle | 2 | -55 °C | 125 °C | UL94 V-0 | Tin | 10 çin | 0.25 çm | Polyethylene Terephthalate (PET) Glass Filled | ||
Samtec Inc. | Bottom Mount Through Hole | Female Socket | Square | 0.35 in | 8.89 mm | Phosphor Bronze | Push-Pull | Solder | Gold | 0.1 in | 2.54 mm | All | 18 | Black | Breakaway Receptacle | 1 | -55 °C | 125 °C | UL94 V-0 | Tin | 20 µin | 0.51 µm | Polyethylene Terephthalate (PET) Glass Filled | 4.32 mm | 0.17 in | ||||
Samtec Inc. | Bottom Mount Through Hole | Female Socket | Square | 0.35 in | 8.89 mm | 0.165 in | 4.19 mm | Phosphor Bronze | Push-Pull | Solder | 0.1 in | 2.54 mm | All | 36 | 2.54 mm | 0.1 in | Black | Breakaway Receptacle | 2 | -55 °C | 105 ░C | UL94 V-0 | Tin | Polyethylene Terephthalate (PET) Glass Filled |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.96 | |
Description
General part information
BSW-118 Series
18 Position Receptacle Connector 0.100" (2.54mm) Through Hole, Bottom Mount Gold
