35616 002500

Active

Belden Inc.

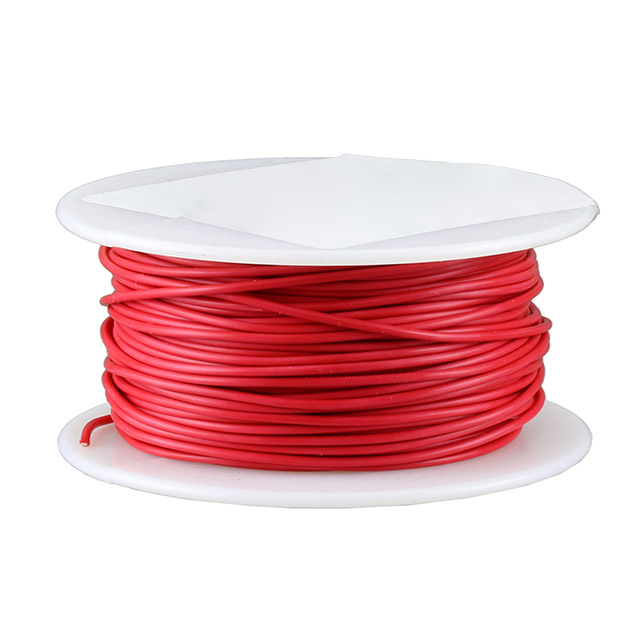

HOOK-UP STRND 16AWG RED 100'

Search across all available documentation for this part.

Active

Belden Inc.

HOOK-UP STRND 16AWG RED 100'

Technical Specifications

Parameters and characteristics for this part

Specification	35616 002500

Cable Type	Hook-Up
Conductor Material	Copper, Tinned
Conductor Strand [custom]	30 AWG
Conductor Strand [custom]	26
Jacket (Insulation) Diameter	0.122 in
Jacket (Insulation) Diameter	3.1 mm
Jacket (Insulation) Material	Polyethylene (XLPE), Irradiated
Jacket (Insulation) Thickness	0.76 mm
Jacket (Insulation) Thickness	0.762 mm
Jacket Color	Red
Length [x]	30.5 m
Length [x]	100 ft
Ratings	UL Style 3173
Voltage	600 V
Wire Gauge	16 AWG

Part	Jacket (Insulation) Diameter	Jacket (Insulation) Diameter	Cable Type	Jacket (Insulation) Material	Voltage	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Ratings	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length [x]	Length [x]	Jacket Color
Belden Inc. 35616 009500	0.122 in	3.1 mm	Hook-Up	Polyethylene (XLPE) Irradiated	600 V	Copper Tinned	30 AWG	26	16 AWG	UL Style 3173	0.8 mm	0.031 in	500 '	152.4 m
Belden Inc. 35616 0035000	0.122 in	3.1 mm	Hook-Up	Polyethylene (XLPE) Irradiated	600 V	Copper Tinned	30 AWG	26	16 AWG	UL Style 3173	0.8 mm	0.031 in			Orange
Belden Inc. 35616 002500	0.122 in	3.1 mm	Hook-Up	Polyethylene (XLPE) Irradiated	600 V	Copper Tinned	30 AWG	26	16 AWG	UL Style 3173	0.76 mm	0.762 mm	100 ft	30.5 m	Red

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

16 AWG Hook-Up Wire 26/30 Red 600V 100.0' (30.5m)

Technical documentation and resources
