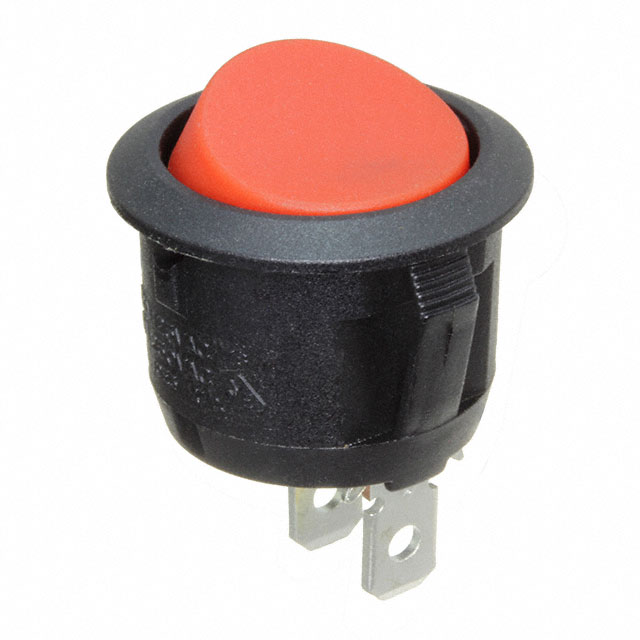

RR3112ABLKREDNEFO
ActiveE-Switch
SWITCH ROCKER SPST 16A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RR3112ABLKREDNEFO |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round |
| Circuit | SPST |
| Color - Actuator/Cap | Red |
| Current Rating (Amps) | 16 A |
| Electrical Life | 6000 Cycles |
| Mechanical Life | 20000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | 0 °C |
| Panel Cutout Dimensions [diameter] | 20.2 mm |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.49 | |
| 10 | $ 1.33 | |||
| 100 | $ 1.15 | |||
| 1000 | $ 0.98 | |||
Description
General part information
RR3112A Series
Rocker Switch SPST 16A (AC) 125 V Panel Mount, Snap-In
